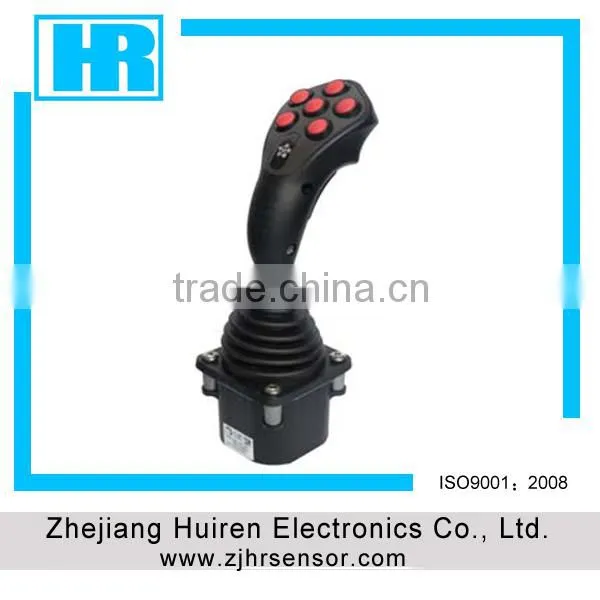

Help CenterHJ60 Joystick for Jeannie Shear Fork
Related Products
-
YJ100 Joystick for Aerial Fire TruckUS$ 60 - 250MOQ: 1 Piece -
YJ01 Joystick for Rotary Drilling RigUS$ 80 - 500MOQ: 1 Piece
-
YJ02 Industrial Joystick for Crane/ HoistUS$ 80 - 500MOQ: 1 Piece
-
YJ300 Single Biaxial Joystick of Coal MineUS$ 80 - 210MOQ: 1 Piece
-
YJ100 Joysctick Type ControllerUS$ 60 - 250MOQ: 1 Piece
Different handles
Product Features
Ergonomics design on mobile application
Uncontact hall effect and long expect-life potentiometer optional
Various handle, different number and location of button switches optional
CAN bus output optional
Application
Typical application on Cranes, loaders, Forklifts, excavators, access platform, tractors, harvesters.
and so on.
Technical Information
Mechanical features
Travel angle ±20º
Operating type Spring return
Breakout force 5N
Operating force (max) 11N
Maximum allowable force >300N
>2 million cycles (Potentiometer)
Expecting life
>5 million cycles (Hall effect)
Weight 475g (Without handle)
Electrical data
Potentiometer
Power supply <36Vdc
Resistance 2KΩ or 5KΩ or 10KΩ
Electrical angle ±18°
Center voltage 48%~52% (percentage of power supply)
Center tap angle ±2.5°
On-load voltage (max) 32Vdc
Power dissipation 0.25W
Load capacity: 2mA@30Vdc (Resistance load)
Directional switch Breakout angle: ±5°
Contact resistance: <200Ω
Hall effect
Power supply 5.0±0.5Vdc
Supply current <11mA (Each of hall effect)
Maximum allowable overload voltage 20Vdc
Reverse maximum allowable voltage -10Vdc
Output linearity tolerance <±0.2V
With electronic amplifier
18~36Vdc (U21~U24)
Power supply
9~36Vdc (I21~I22)
Power current consumption <20mA
Maximum output current 10mA (With standard voltage output)
Can Bus
Power supply 9~36Vdc
CAN Version CAN 2.0B
Protocol J1939
Connector 6 p-pin (Deutsch,DTM04-6P)
Microswitch
Load capacity 4A@30Vdc (Resistance load)
30 million times (Mechanical)
Expecting life
200 thousand times (Electrical)
Insulation resistance >100MΩ (500Vdc Insulating-resistance meter)
Breakout angle ±3°~±5°
Environmental data
Operating temperature -30℃~+70℃
Storage temperature -40℃~+85℃
Protection level IP65 (Above the flange)

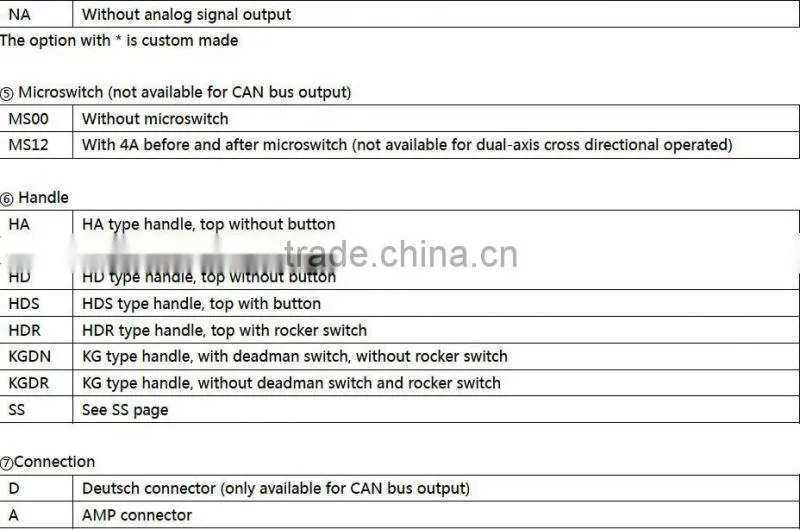

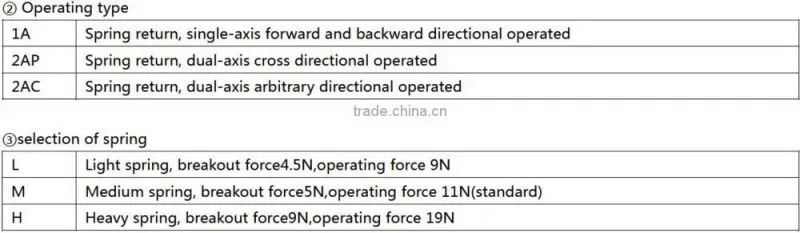

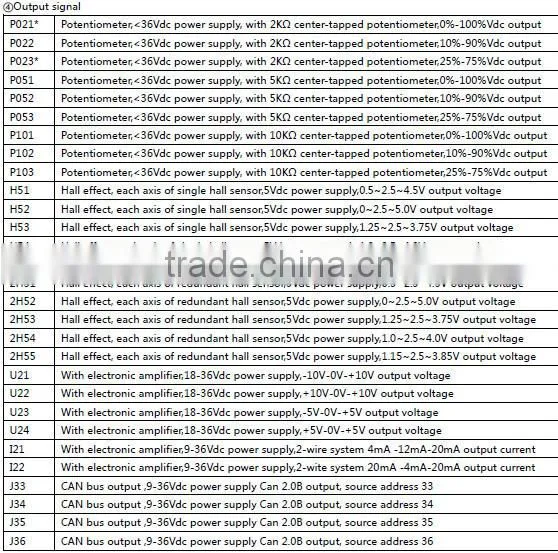

Product Configuration

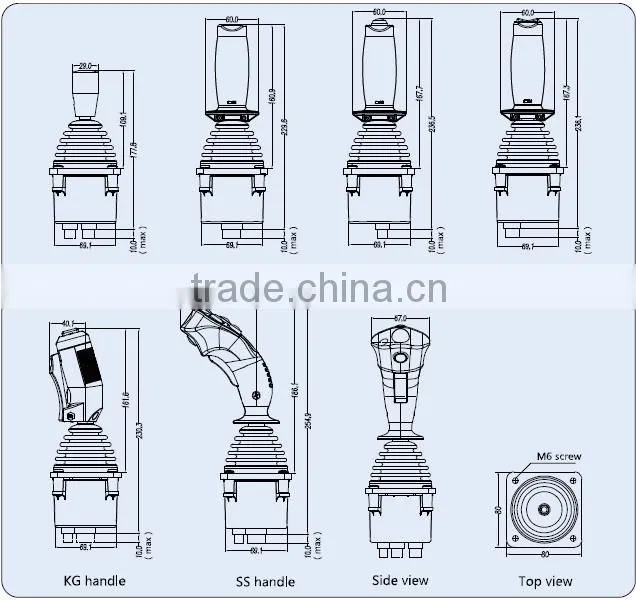

Dimensions

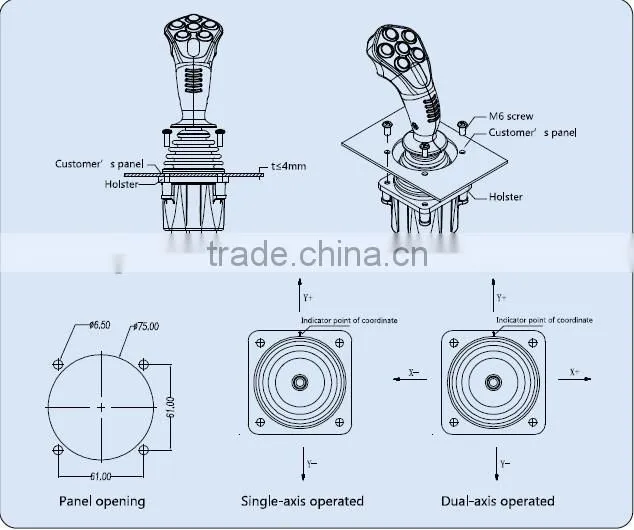

Product Installation

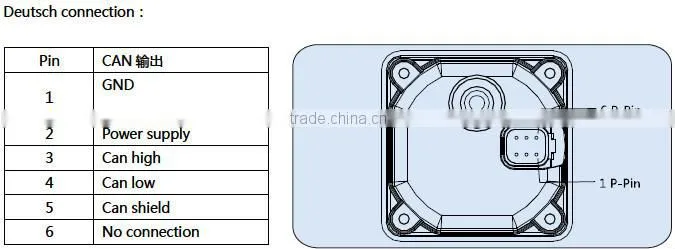

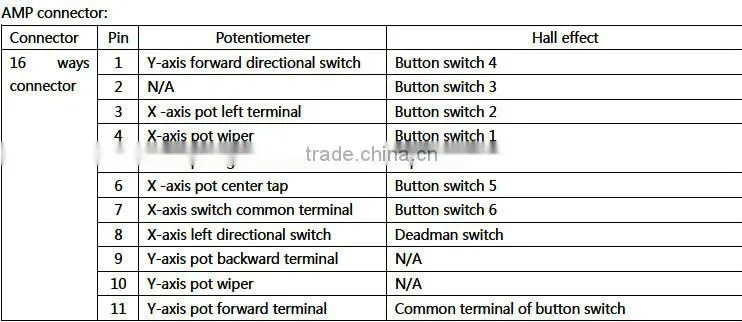

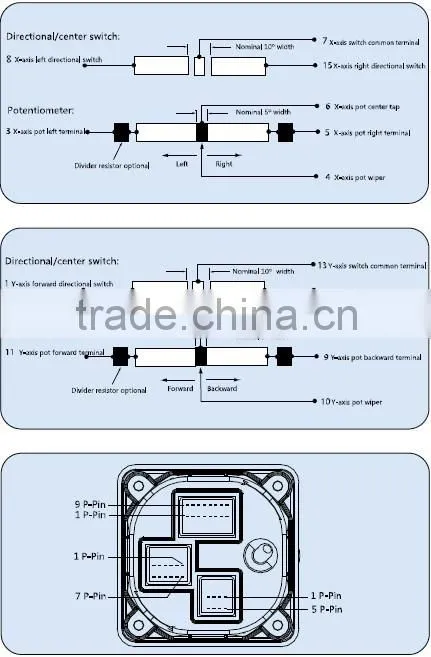

Electrical Connections
