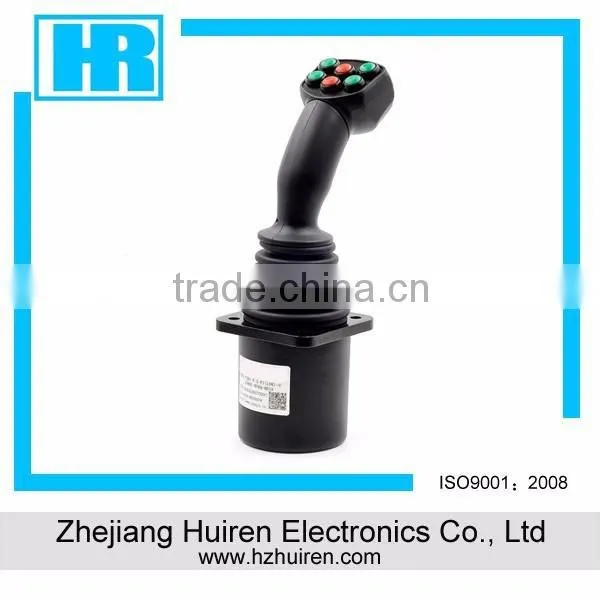

Help CenterYJ01 Spring Automatic Return Industrial Joystick
Related Products
-
YJ100 Dustproof and Waterproof JoystickUS$ 60 - 250MOQ: 1 Piece -
YJ200 Measurement Equipments JoystickUS$ 60 - 250MOQ: 1 Piece
-
YJ500 Spring Automatic Reset JoystickUS$ 40 - 100MOQ: 1 Piece
-
YJ600 Double Axis Hall Type JoystickUS$ 50 - 100MOQ: 10 Pieces
-
FJ11 Handle Industrial Joystick ControllerUS$ 80 - 180MOQ: 1 Piece
|
Product features 1.Potentiometer sensor or Hall sensor |
|||||
| 2.Uniaxial, biaxial arbitrary direction and three shafts operation | |||||
| 3.Control rod with high strength, excellent proportional control and switch output | |||||
| 4.High protection level | |||||
| 5.Easy installation, flexible operation, uniform hand feeling, long life, maintenance free. | |||||
| 6.A wide range of applications |
Potentiometer specifications
Technical information
Environment characteristics | ||
Storage temperature |
normal temperature drying |
|
Use environment |
-25℃~+80℃ |
|
Mounting flange above protection level |
IP56 |
|
Vibration |
amplitude of vibration ±3g,frequency 10HZ-200HZ |
|
Impact |
20g,6ms,Half sine type |
|
EMC anti interference level |
100V/m,30MHZ-1GHZ,80% sine wave modulation, to meet EN50082-2(1995) standard |
|
EMC emission level |
150KHZ-30MHZ,B level, to meet EN50081-2(1993) standard |
|
ESD anti interference level |
4 level 8KV contact discharge, 15KV air discharge, to meet IEC 61000-4-2 standard |
|
Mechanical properties | ||
Mechanical rotation |
±32°(potentiometer)±20(hall sensor) |
|
Operating torque |
5N(50Nmax) |
|
Mechanical life |
5,000,000 |
|
Mechanical error |
±0.5° |
|
Electrical properities | ||
Hall type |
Supply voltage |
5±0.5VDC |
The expendable current of power |
6.5mA/Each Holzer chip |
|
Resolution |
infinite |
|
Maximum voltage |
15VDC continuous |
|
Reverse polarity maximum voltage |
14.5VDC |
|
Load resistance |
5KΩ |
|
The median voltage (no load) |
48~52%Vs |
|
Potentiometer |
Supply voltage |
DC24V |
Supply current |
<20mA |
|
Resolution |
infinite |
|
Resistance(10%) |
2KΩ,5KΩ,10KΩ |
|
Electrical corner |
±32° |
|
Output voltage range (comparison voltage ) |
0~100%;10~90% |
|
The median voltage |
48%~52% |
|
The maximum loading electric potentiometer pressure |
32VDC |
|
The maximum power consumption(25℃) |
0.25w |
|
Direction switch |
switch position±3° |
|
Application
This series of levers are mainly used in engineering machine, rotary drilling rig, crane, hoist, such as oil sweeping vehicle hydraulic proportional control and variable frequency control of motor.

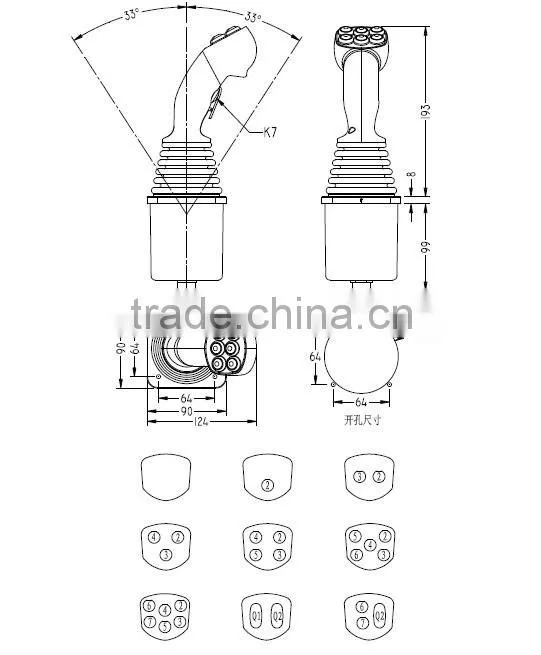

Size
Zhejiang HuiRen Electronic Limited Company is located in the center of the city Huzhou (Zhejiang, China) which is known as the pearl of South Taihu Lake. HuZhou has a facilitated transportation, with a number of National Roads, highways, railways, and waterways running across the city, it is conveniently connected to Shanghai, Hangzhou, Wuxi and Suzhou.
Our company is specialized in sophisticated electric eonducted plastic products such as precision angular-displacement sensors, precision linear displacement sensors and precision conductive plastic potentiometers. The products are widely used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and mediacal instruments and so on.
Our company focuses on management in all aspects, adhering to the principle of satisfying customers and faithfully serving all customers.
We will provide you with our best products and services. Welcome!
