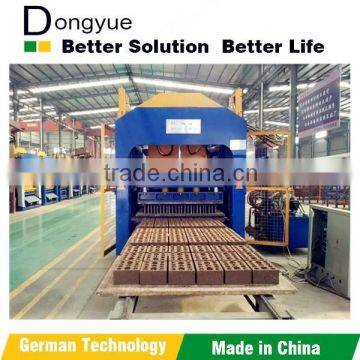

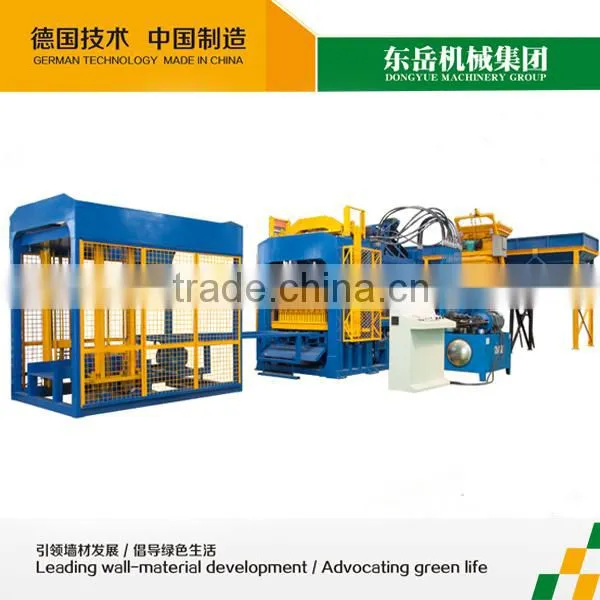

automatic hydraulic block machine
1.material basice percentage:
sand:fly ash:cement:lime=6:3:1:0.2
small stone:sand:cement=5:4:1,add 3% percentage water
2.electric consumption: 50kw/hr
3.necessory workers: 4-5 workers
4.Block mould adopt heat treatment technology

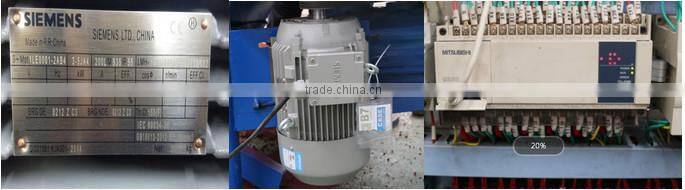

5.Japan MITSUBISHI PLC/German SIEMENS motors
6.voltage:380V/220V/440V,50-60HZ,single/two/Three Phase
2.Motor Power Table
No. |
Name |
Specification |
quantity |
rigging position |
1 |
Cycloidal gear reductor |
XWDY-4-43-1.1KW(6 level) |
2 |
Feeding pallet and transporting block machine |
2 |
Oil pump main motor |
Y180L-4 22KW |
1 |
Oil tank |
3 |
Oil pump motor |
Y10L-4 3KW |
1 |
Oil tank |
4 |
Vibrator motor |
Y90S-2 1.5KW |
2 |
Forming machine |
5 |
Dosing motor |
Y100L-6 3KW |
1 |
Dosing car |
6 |
Feeding |
Y112M-6 2.2KW |
1 |
Belt conveyor |
3.automatic hydraulic block Machine Advantage:

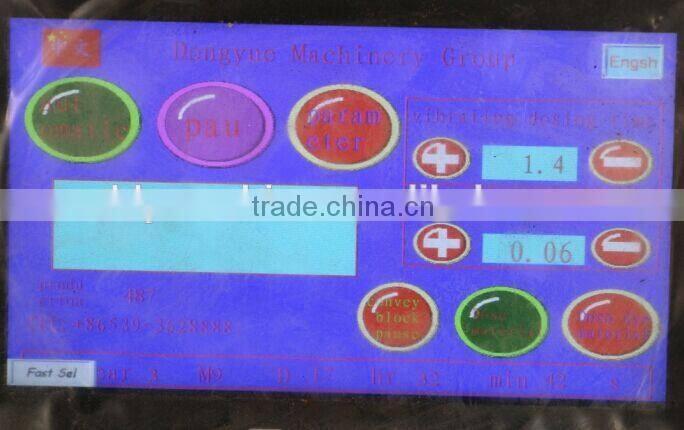

A:adopting Japanese MITSUBISHI PLC control system,realizing full automatic producing.
B:Using four stem guide working way and ultra-long guide bearing, ensure the pressure head and mould work precisely
C:Host machine made by high strength steel and special welding technology and materials manufacturing, strong resistance to earthquake

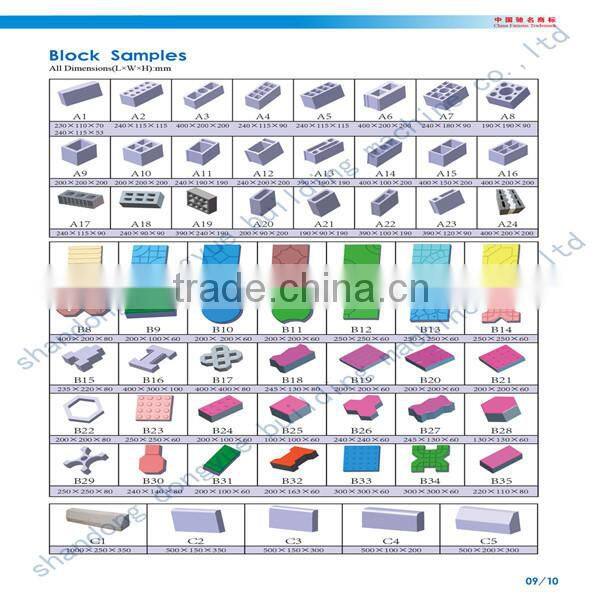

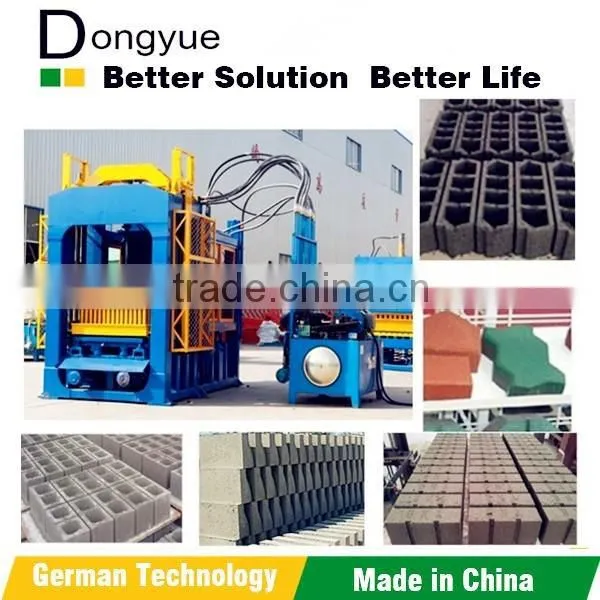

D:Block mould can be changed fast,and can make various bricks,different shape and size,like paving brick machine,curbstone,hollow blocks and solid bricks...
E:Using import seal and hydraulic components, equipment comprehensive performance is stable and reliable
F:Host machine Motor adopts German SIEMENS brand, hydro-cylinder is LINGONG Brand.

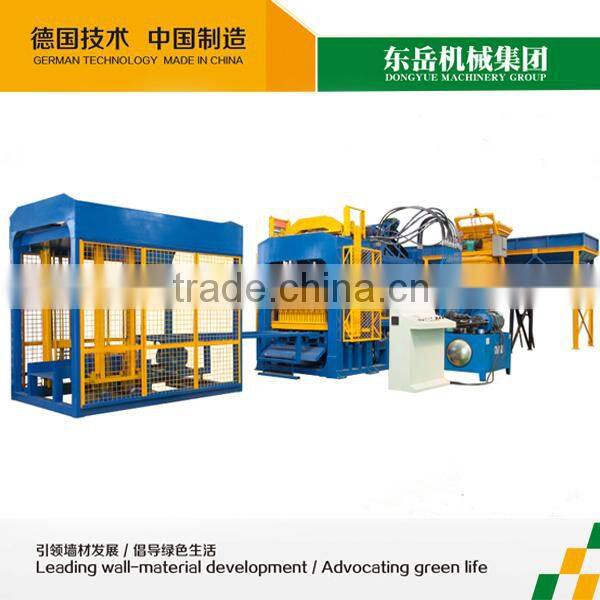

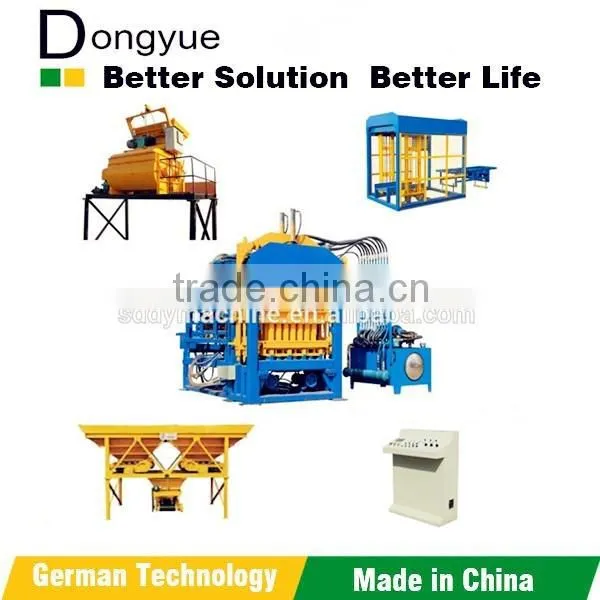

4.QT automatic hydraulic block machine detail instruction

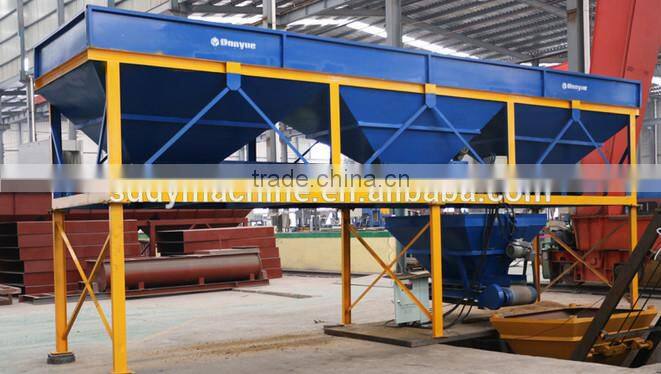

1.batching machine(PL1200-B)
Capacity of weight measuring part |
1.2m3 |
Capacity of material store part |
3×3m3 |
Material forming accuracy(%) |
+2 |
Productivity(m3/h) |
60 |
Max weight value(kg) |
2000 |
Height of material addition(mm) |
2500 |
Speed of belt conveyor(m/s) |
1.25 |
Power(kw) |
10.3 |
Weight(kg) |
3760 |
Period of batching material(s) |
<=60 |
Outside size(mm) |
8390×2220×2884 |

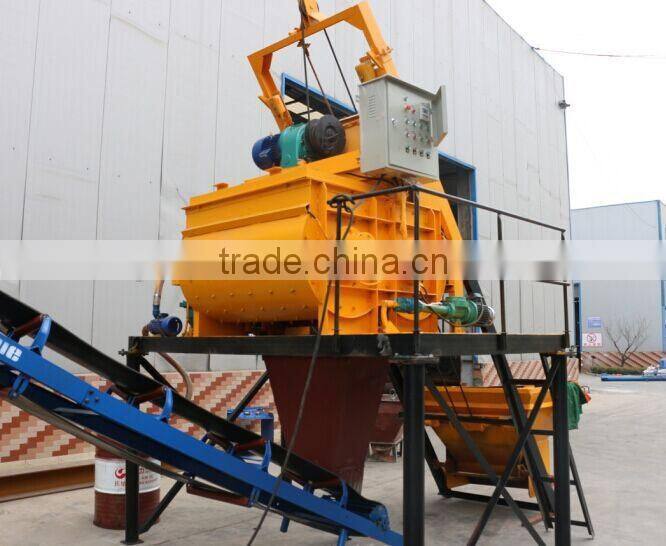

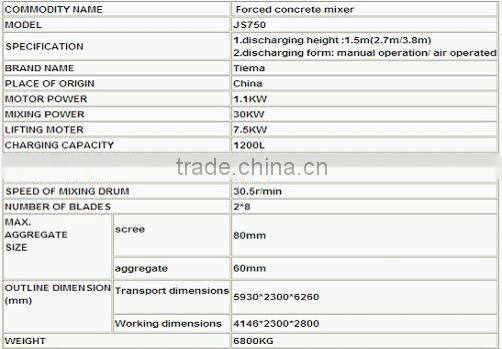

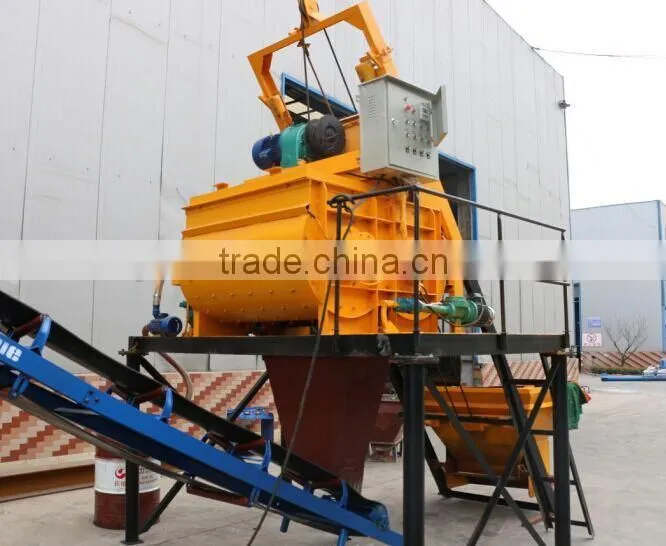

2.JS750 mixer

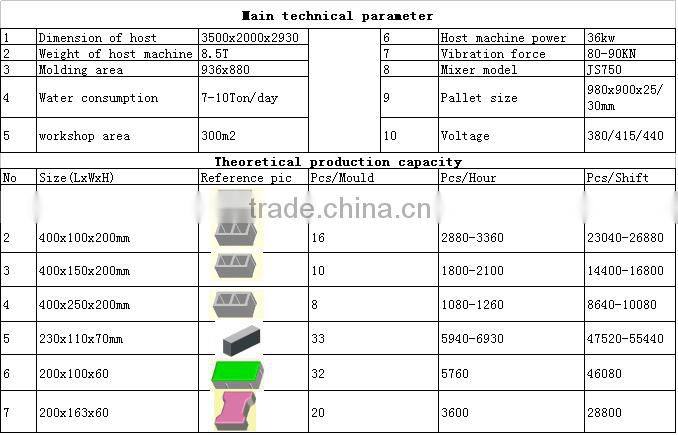

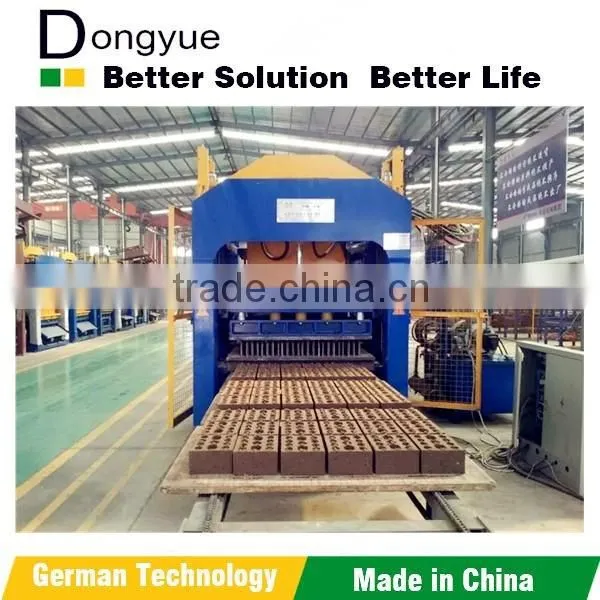

3.QT8-15 forming machine
(3) Land requirement
workshop area - usually 25X10=250 m2;
material storage area- 2000m2;
office area :600m2;
finished products area: 3000-4000m2.

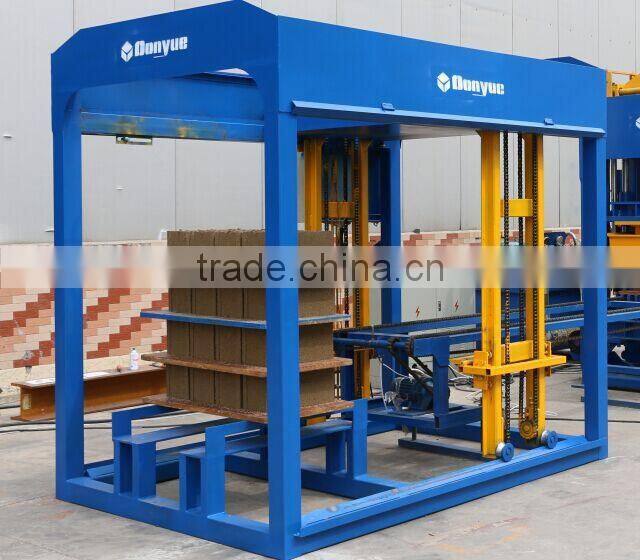

4.stacker
No. |
specification |
size |
Remark |
01 |
L×W×H |
QT6-15:2500×1660×2300mm
|
QT6-15B:2500×1660×2300mm QT8-15:2500×1760×2300mm QT9-15:2500×2150×2300mm
|
02 |
weight |
1.3T |
|
03 |
power |
2.6KW |
5.DONGYUE company profile
Dongyue Machinery Group Co., Ltd. is located in the jumping*off point of Linyi City.
Since our establishment, we have regarded quality as the most important and eternal
principle in production. Our products have passed ISO9001:2000 certification and the
inspection by National Construction Machinery Products Quality Inspection Center.
Last year we are the top selling among
thousands of China manufactures. and we are the only company which has been admitted
as China well-know brandmark by China Government.
Apart from the above, we already have office in India, Vietnam,Indonesia.
Our brick making machine enjoys many advantages including: more reasonable structure,
more compact appearance, smoother operating, higher efficiency and easiness to operate
and maintain. We would like to exchange the optimum profit for you with the lowest cost
and the best after-sale service.
6.In China,thousands of block machine suppliers,where is Dongyue block machine Advantage,there have 4 main points:
1.Dongyue group is the top 3 of block machine industry.
Dongyue group introduction video:/watch?v=2-pyrN7rbE4
2.Products advanced technology, high performance-price ratio.
In August 2013 with the German katz. Beitong group cooperation, product quality is superior:/watch?v=gl38BdywmNM
3.steel we use GB Q235, through the rust removal and carburizing heat treatment, effectively prolong the machine and block moulds using life more than five years,and before laoding all the machine surface are sprayed of enamel painting, fine bright paint.
4.Timely and effective after-sales service.
1)If you'v got a brick factory and you want to improve your current formual and save the cost, our professional team are willing to give you the best suggestion and technical support.
2)If you want to join in this filed, our professional team would like to offer you the best guidance and give you a full appreciation about our machine and the the feasibility of its investment.
3)If you are doubt about your raw material or whether it could be formed as a perfect brick. Don't be worry about that. Just contact us. Send your local material to us by post. We can offer you the test for free. We firmily believe that any kinds of resonable raw material could be a useful one with the help of our machine.
7.any question about Dongyue block machinery,please feel free to contact with me 24x7.
