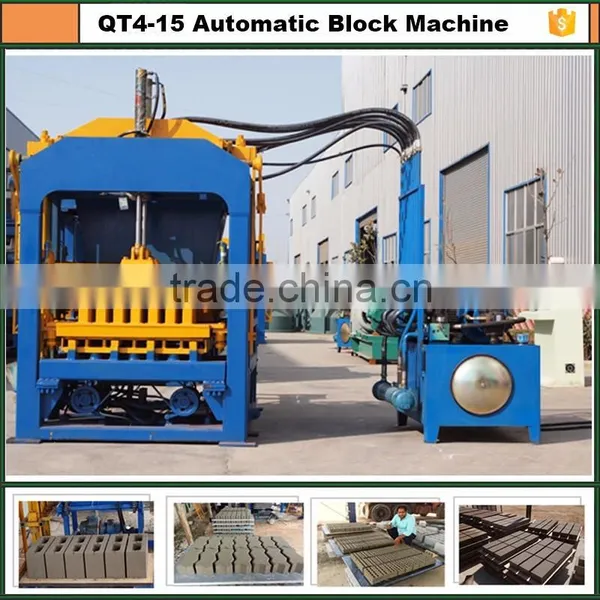

QT4-15C Siemens Used concrete block making machine for small investment project by our company according to the advanced Germany block machine techology, Europe CE standards .
Forming machine theoretical data | |||||||
Dimension of host machine |
4000x1800x2800mm |
|
|
||||
Main vibrator style |
lower mould vibration |
Number of hydraulic vibrator |
2 |
||||
control style |
PLC |
forming style |
hydraulic |
||||
Number of motor vibrator |
2 |
hydraulic cylinders |
2 |
||||
Hopper capacity of concrete |
0.3 M3 |
feeding style |
360degree revole |
||||
Moulding area |
1010x600 mm |
forming height |
40-250mm |
||||
Moulding period |
15-20 S |
vibration force |
40-50 kn |
||||
Forming blocks per mould400x200x200mm |
4 |
The size of the pallet |
1010x550 mm |
||||
Weight of the host machine |
5T |
Mixer style |
JS500 |
||||
Water and Voltage | |||||||
Genetal water Consumption |
5-6 T |
Voltage |
220v/380 V/420v/440v |
||||
Power |
21.7kw |
|
|
||||
Simple line Uesd Area | |||||||
A.Production area excluding concrete mixing zone |
M2 |
300 |
|||||
B. Concrete mixing zone area |
M2 |
170 |
|||||
C.Finished product Warehouse |
M2 |
800 |
|||||
E.Raw material storage |
M2 |
700 |
|||||
F.office |
M2 |
100 |
|||||
G.Total area |
M2 |
2070 |
|||||
pratical workers arrangement | |||||||
control/operation |
1 |
wheel loader |
1 |
||||
Forlift/pallet added |
2 |
repaire/maintain |
1 |
||||
sum |
5 |
|
|
||||
Production capacity | |||||||
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/8 Hr |
||||
400X100X200 |
8 |
1440-1680 |
11520-13440 |
||||
400X150X200 |
6 |
1080-1260 |
8640-10080 |
||||
400X200X200 |
4 |
780-840 |
5760-6720 |
||||
400X250X200 |
3 |
540-630 |
4320-5040 |
||||
Manufacturing process
Guaranty and after-salers service
- we offer 1 year warranty for the machine except artifical damages
- 24 hours email and phone technical supports
-
CE and ISO 9001/SGS/BV standards in manufacturing the machines
More information automatic high quality brick machine ,kindly feel free to contact me, we look forward to your enquiry
