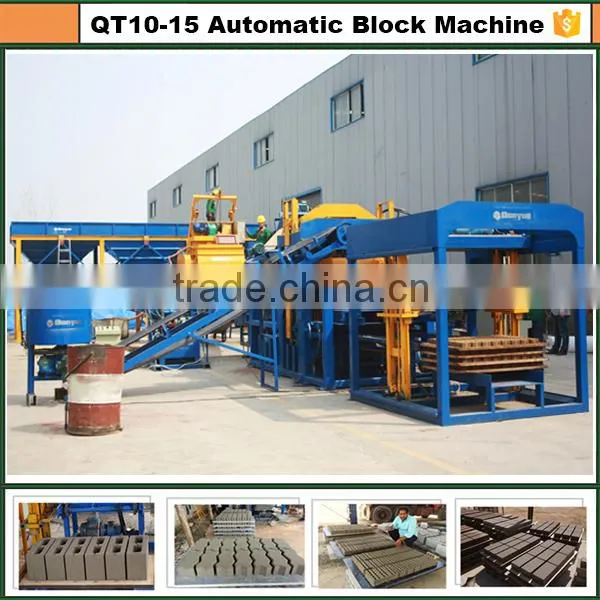

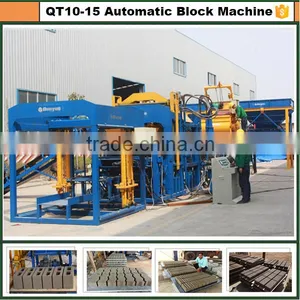

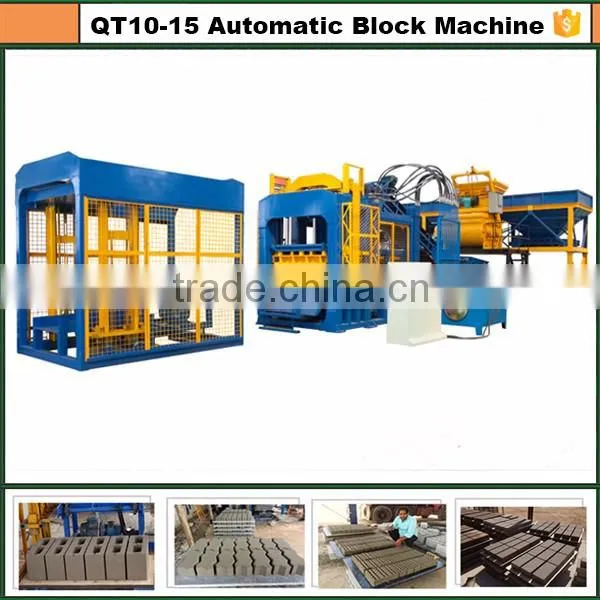

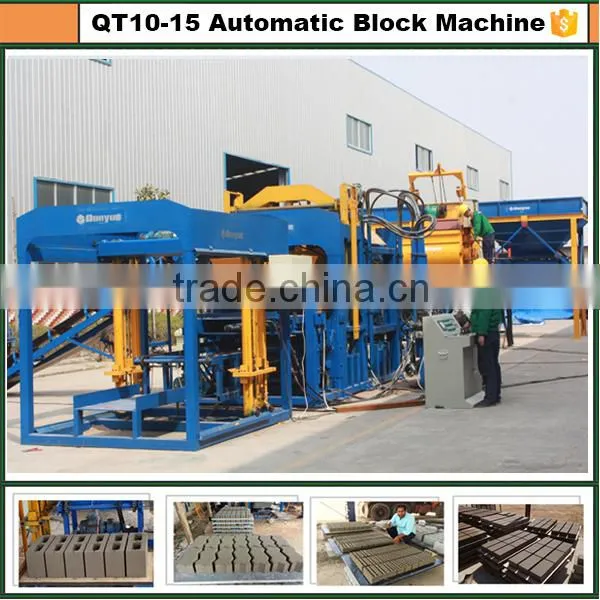

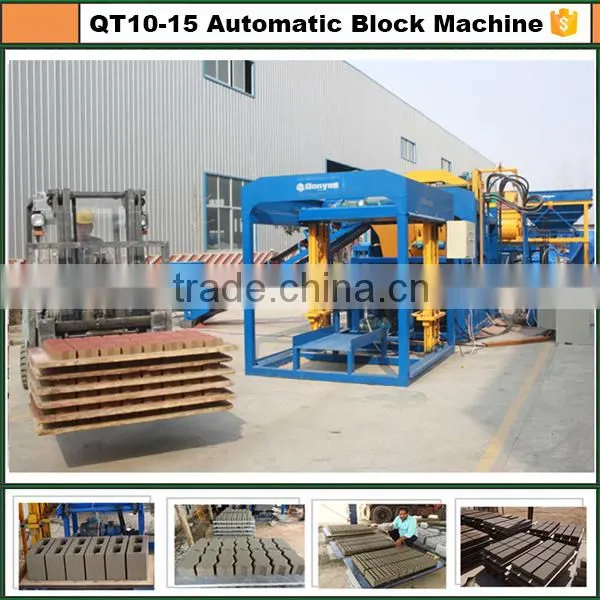

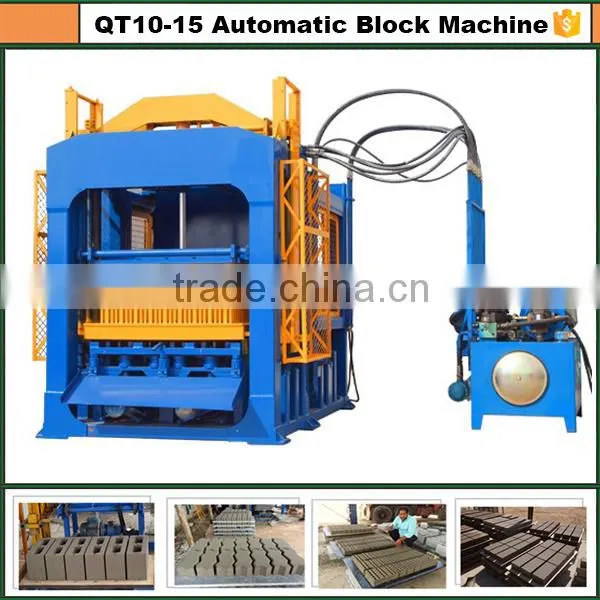

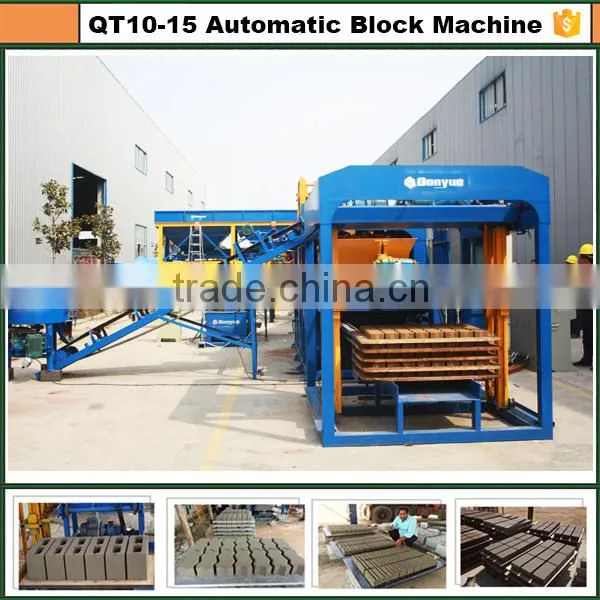

interlocking brick machine QT10-15 for hydraform interlocking brick machine in kenya
(1)The advantages of interlocking brick machine QT10-15 for hydraform interlocking brick machine in kenya :
1 Nation standard steel and special welding technology.
2 PLC control unite : JAPAN MITSUBISHI electric
3 Hydraulic unite:TAIWAN JIUGANG
4 Switch:JAPAN OMRON
4 Electrical elements:FRANCE SCHNEIDER
5 Mould:High temperature carburizing heat treatment
6 Host machine and mixer motor:GERMANY SIEMENS
7 Other motors: European CE standard
(2)Guarantee of interlocking brick machine QT10-15 for hydraform interlocking brick machine in kenya :
We will supply one year guarantee about our Cement block making machine,when the client have the question ,
they could call our service department number any time , we will supply per day 24 hours service .
Within one year ,if the client meet the unsolvable questions ,we could fly to client place to help
(3)Production capacity of interlocking brick machine QT10-15 for hydraform interlocking brick machine in kenya:
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
400X100X200 |
20 |
3000-3600 |
24000-28800 |
400X150X200 |
14 |
2100-2520 |
16800-20160 |
400X200X200 |
10 |
1500-1800 |
12000-14400 |
400X250X200 |
8 |
1200 |
9600 |
|
Paver:200X100X60 |
35 |
5250 |
42000 |
|
Paver:200X165X60 |
20 |
3000 |
24000 |
|
Solid brick 240*115*52 |
54 |
12960 |
103680 |
(4) Technical parameter of interlocking brick machine QT10-15 for hydraform interlocking brick machine in kenya :
Dimension of host machine |
3500×2220×2850mm |
Host machine power |
45.38KW |
Moulding area |
1025×810mm |
Vibration force |
100KN |
Moulding period |
15-25S |
Mixer model |
JS750 |
The size of the pallet |
1350×900×30mm |
General water Consumption |
12T/every day |
Weight of the host machine |
14T |
||
Voltage |
Adapt to your local voltage |
||
(5) Worker requirement of interlocking brick machine QT10-15 for hydraform interlocking brick machine in kenya :
From loading material to transport finished block we need about 4-5 person to operate the Cement block making machine whole line .

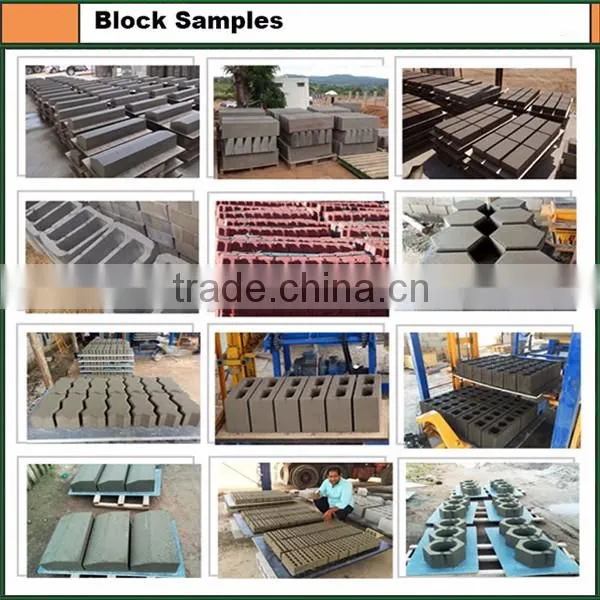

(6) Blocks sample of interlocking brick machine QT10-15 for hydraform interlocking brick machine in kenya :
(7) Packing and loading of interlocking brick machine QT10-15 for hydraform interlocking brick machine in kenya :
(8) ,Material Proportion of interlocking brick machine QT10-15 for hydraform interlocking brick machine in kenya :
1. 8%-10% Cement ,30-40% sand, 50-60% crushed stone
2. 8-10% cement , 30-40 % flyash, 60% sand or stone powder,
| More Products Link | ||
| Automatic Brick Machine |
Manual Brick Machine |
Moving Brick Machine |
| QT4-15 | QT4-24 | QT40-3A |
| QT6-15 | QT4-25 |
QT40-3B |
| QT8-15 | QT40-1 | QT40-3C |
| QT10-15 | QT4-26 | QTM6-25 |
