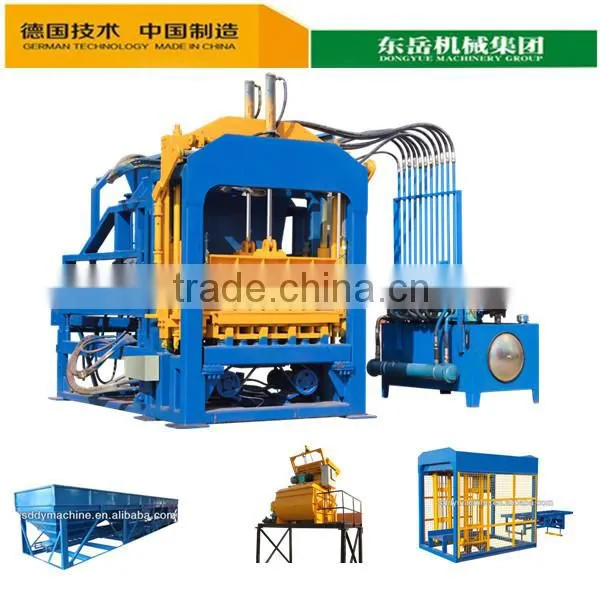

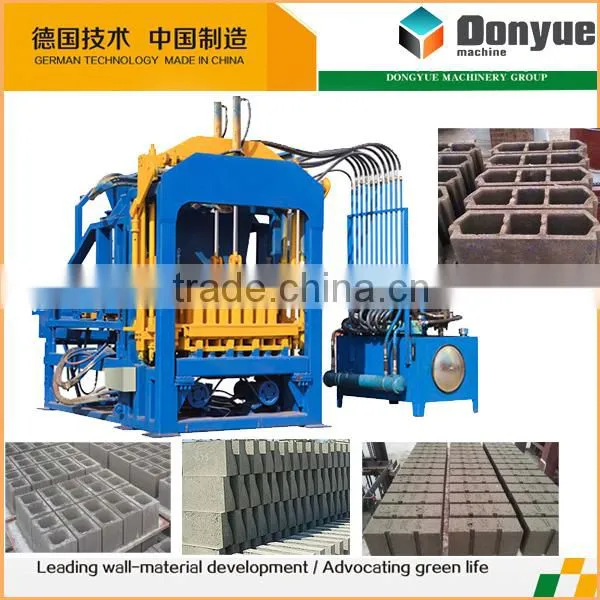

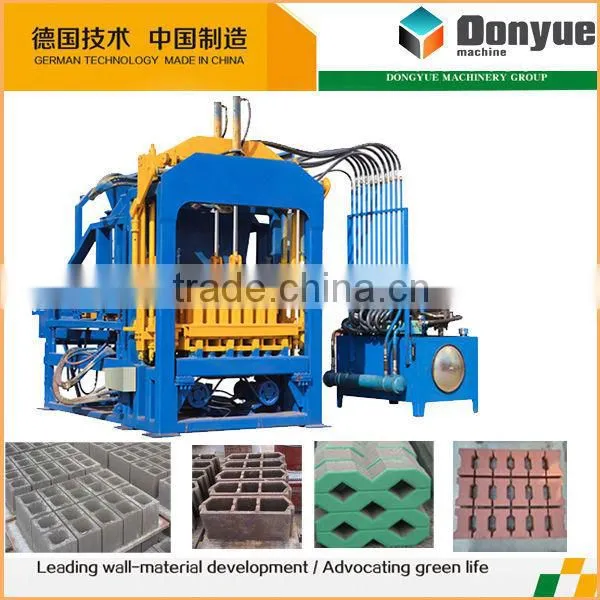

QT4-15C dongyue automatic hydraulic fly ash brick machine
QT4-15C fly ash brick machine introduction:
QT4-15C fly ash brick machine working video: https://youtu.be/_s1yU5ZLsCA
QT4-15C fly ash brick machine is suitable to make road blocks, road-side bricks and river bricks. Adopt sub-storage device and independent storage hopper, this machine can overcome the liquefaction of concrete defects in advance, and ensure the quality of the finial products.
This machine can automatically operate the whole set, from material feeding to finish products output.
QT4-15C fly ash brick machine Main Technical Parameters:
Dimension of host machine |
4000×1800×2550mm |
Host machine power |
21.8 KW |
Moulding area |
1006×600mm |
Vibration force |
40-50KN |
Moulding period |
15-25S |
Mixer model |
JS500 |
The size of the pallet |
1010×550×20/25mm |
General water Consumption |
5T/every day |
Weight of the host machine |
5.5T |
Voltage |
220/380/415/440V |
1).Theoretical workshop area : 150 m2 , need about 3-4 workers.
2).The office,curing area and stacking area to arrange according your practical situation.
QT4-15C fly ash brick machine Production Capacity:
Size(LxWxH) mm |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hrs |
400X100X200 |
8 |
1200-1920 |
9600-15360 |
400X150X200 |
6 |
900-1440 |
7200-11520 |
400X200X200 |
4 |
600-960 |
4800-7680 |
400X250X200 |
3 |
450-720 |
3600-5760 |
230x110x70 |
24 |
4320-5040 |
34560-40320 |
Paver 200X100X60 |
16 |
1920 |
15360 |
Paver 200X163X60 |
8 |
1200 |
9600 |
QT4-15C fly ash brick machine advantage:
1. Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors:
A. Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
C. High-quality electrical components from Schneider and Omron;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.
Why Choosing us to buy hollow block making machine ?
Realiable quality:
With good quality, reliable products,20 years expericence and competitive price ,DONGYUE BRAND is your best choice.
Special welding:
We use the newly carbon Dioxide protection welding to assure the whole line is more stable. and newest heat treatment device to extend the lift span of moulds.
Thanks for your time.Welcome your inquiry and visit our factory.Hope we can build a bright future.
