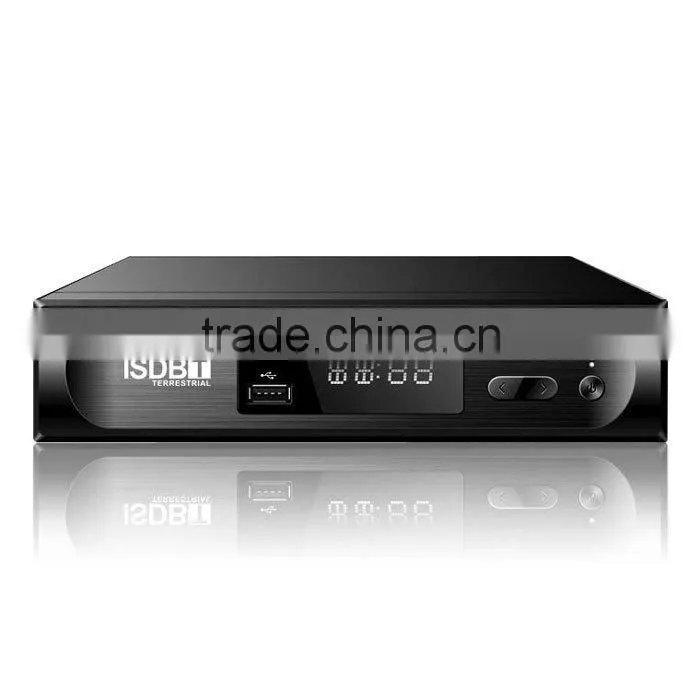

VCAN1046 Home ISDB-T MPEG4 Digital tv Receiver Full Segment for Philippines,Sri Lanka

Name: VCAN1046 Home ISDB-T MPEG4 Digital tv Receiver Full Segment for Philippines,Sri Lanka
Brand: VCAN
SKU: 132870819

US$ 14.8 - 14.8 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VCAN

Model Number:

VCAN1046

Vcan Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VCAN

Model Number VCAN1046

VCAN1046 Home ISDB-T MPEG4 digital tv receiver full segment for Philippines,Sri Lanka

Selling Points:

Digital ISDB-T TV Terrestrial Receiver

Features:

1.USB 2.0 for software update/PVR/movie,music,picture media play back

2.Fully compliant with ISDB-T (MPEG 2/MPEG 4/ H.264)

3.Full HD output in 720p, 1080i, 1080p

4.Less than 0.5 Watt in standby

5.Multi-lingual OSD and user-friendly UI

6.Parental Control, Teletext, EPG supported

7.Favorite Group supported

8.PVR recorder supported with external USB

9.RCA CVBS outpuinterface

RF Input/Demodulation
Connector Type	F-Female x1 for ANT input;F- Female x1 for LOOP THROUGH
Input Frequency	(UHF)470-866MHz,(VHF)170-230MHz
Bandwidth	6,7,8MHz
Signal Input level	-80dBm - -20dBm
Input Impedance	75Ohm
ANT Power	5V(On/Off),Imax=100mA
Demodulation Scheme	QPSK,16-QAM,64-QAM
Demodulation Type	OFDM, fully compliant with ISDB-T Standard
Media Features
Picture	JPEG,BMP,PNG
Power Supply
Adapter
AC Input	100-240VAC@50/60Hz±5%
Power Consumption	Max10W
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	170mm * 96mm * 40mm
Front Panel
Key	POWER, CH+,CH-
Indicator	LED Indicator for Power On/Off
Remote Control Input	Infra-red receiver
Display	Option for 4 Digits 7-segment LED display
Connector	1xUSB2.0 interface

Rear Panel
Connector	2 x F-Female connector for ANT.IN and Loop THROUGH
	HDMI 1.3 interface, up to 1080p
	1xAV RCA( CVBS, L/R)
	1xCOAXIAL
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.(front distance from receiver)
Operation Angle Range	±45°(horizontal),±20°(vertical)

Packaging & Shipping

Paking details:

Product Name:	VCAN1046
Carton size:	554339(cm)
Unit Weight including package:	0.74(kgs)
Quantity per carton:	40 (pcs)
Gross Weight per carton:	21.5 (kgs)
Product size:	21197(cm)
