Selling Points:
Philippines ISDB-T
TV plus Black Box
HDMI / USB PVR
Analog TV upgrade Digital TV
Digital ISDB-T HD/MPEG-4

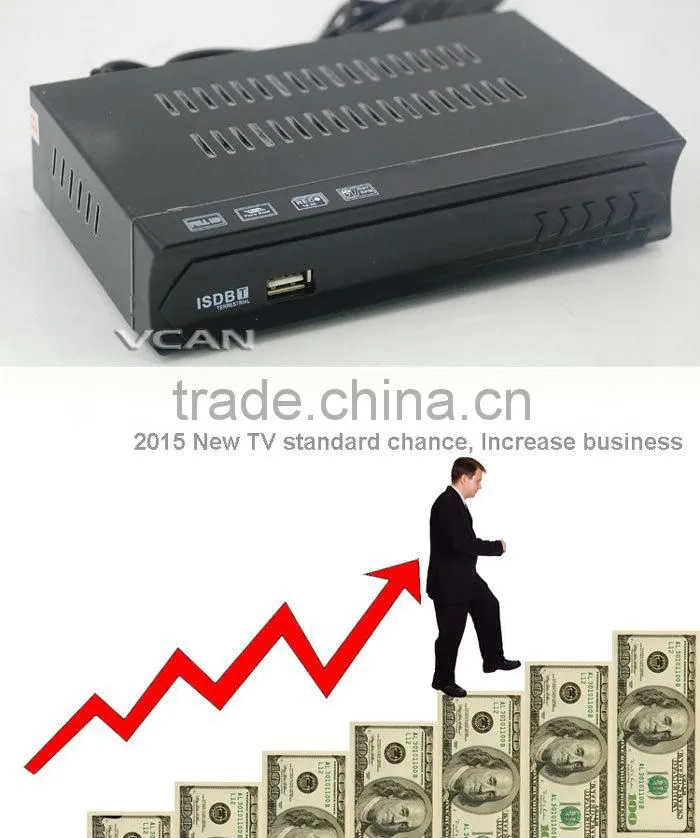

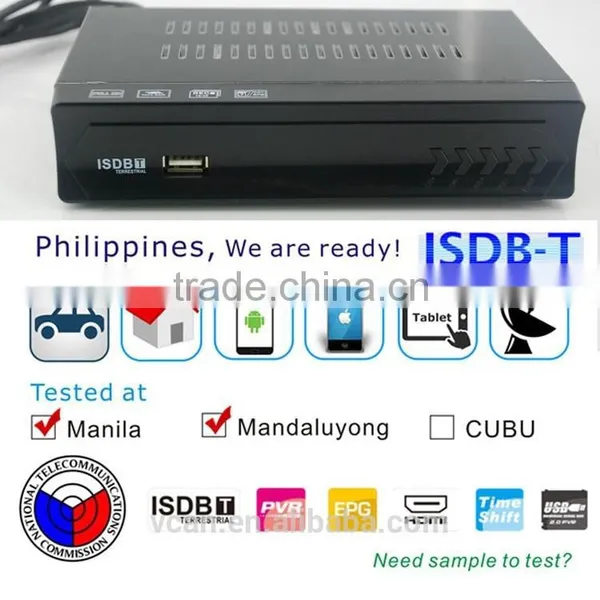

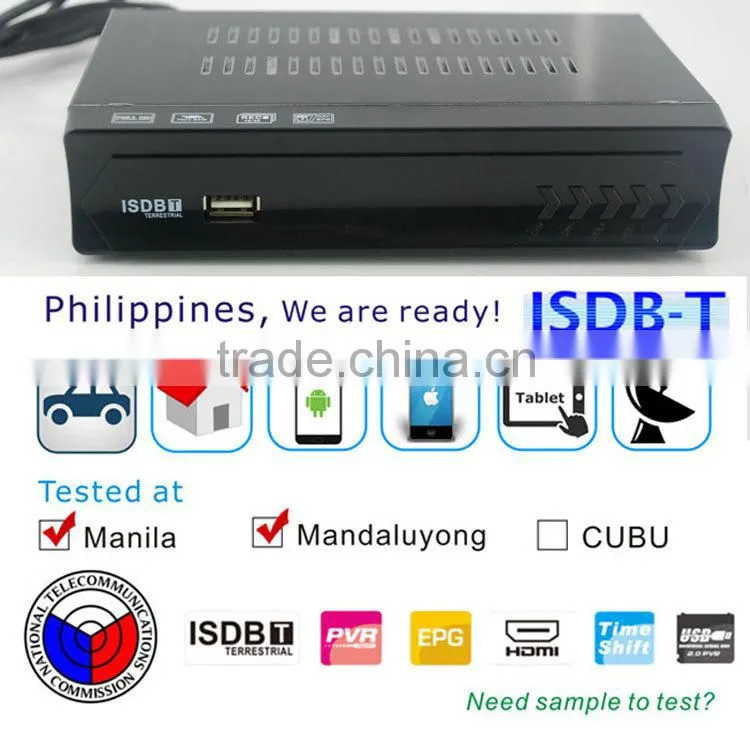

VCAN1047 Home ISDB-T Digital TV Receiver for Philippines
RF Input/Demodulation
Connector Type:F-Female x1 for ANT input;F- Female x1 for LOOP THROUGH
Input Frequency:(UHF)470-866MHz,(VHF)170-230MHz
Bandwidth:6,7,8MHz
Signal Input level:-80dBm - -20dBm
Input Impedance:75Ohm
ANT Power:5V(On/Off),Imax=100mA
Demodulation Scheme"QPSK,16-QAM,64-QAM
Demodulation Type:OFDM, fully compliant with ISDB-T Standard
Media Features
Picture:JPEG,BMP,PNG
Power Supply
Adapter
AC Input:100-240VAC@50/60Hz±5%
Power Consumption:Max10W
Memory
Flash:32Mbit
DDRII Memory:512Mbit
Physical Characteristics
Physical Size:170mm * 96mm * 40mm

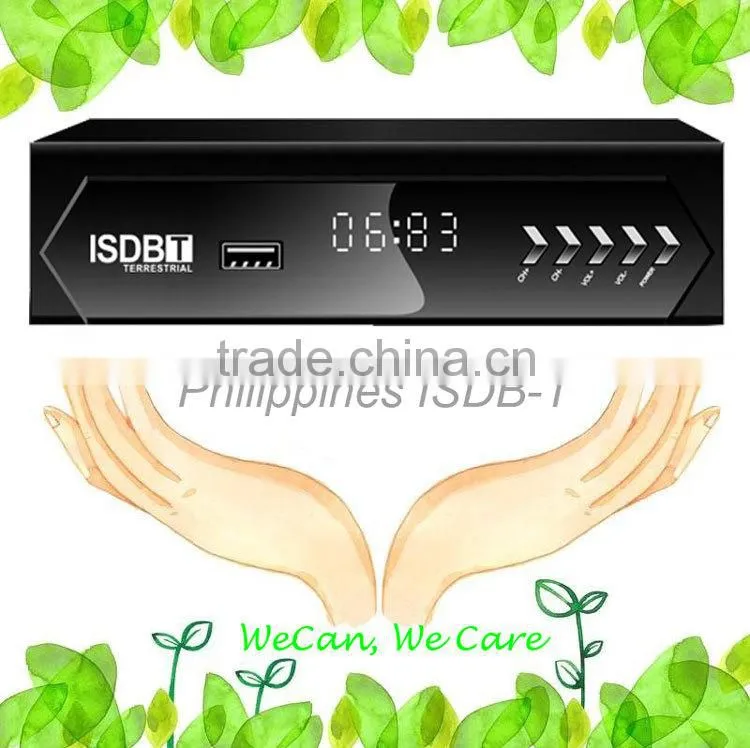

Front Panel
Key:POWER, CH+,CH-
Indicator:LED Indicator for Power On/Off
Remote Control Input:Infra-red receiver
Display:Option for 4 Digits 7-segment LED display
Connector:1xUSB2.0 interface

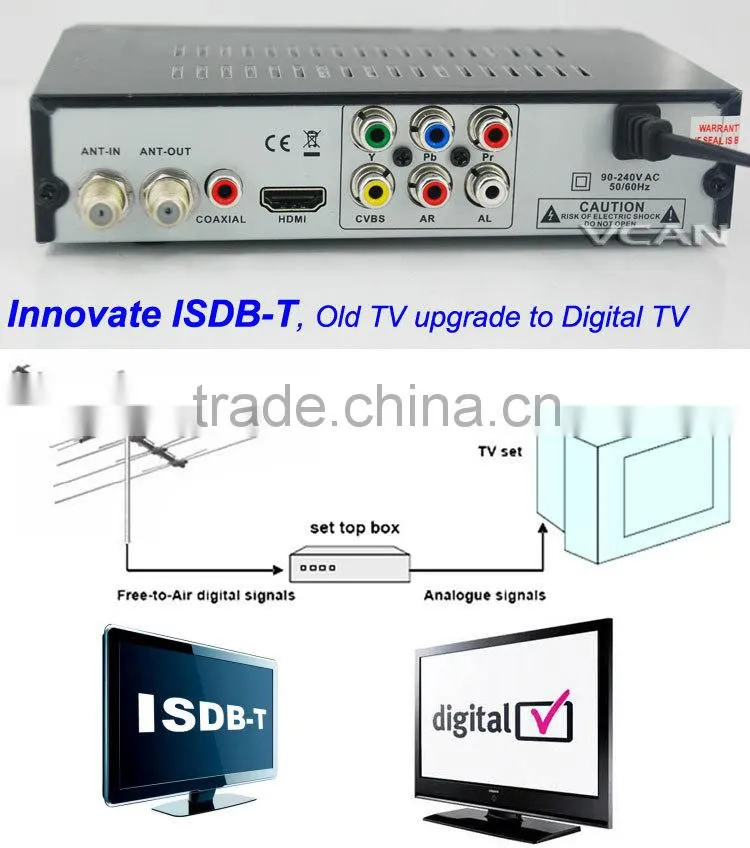

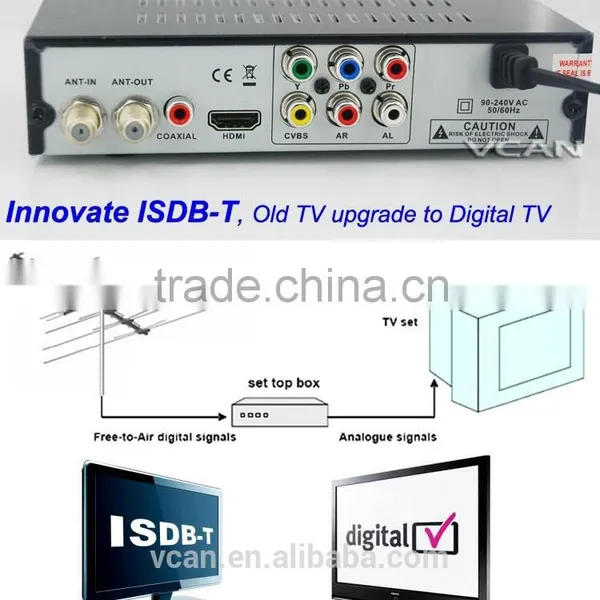

Rear Panel
Connector:2 x F-Female connector for ANT.IN and Loop THROUGH
HDMI 1.3 interface, up to 1080p
1xAV RCA( CVBS, L/R)
1xCOAXIAL

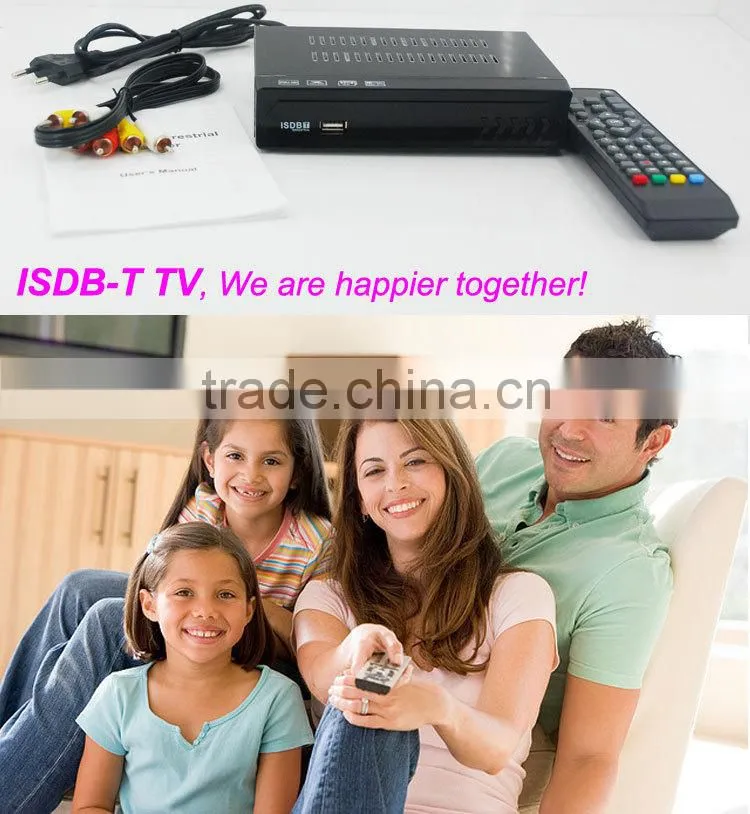

Remote Specifications
Battery:(AAA 1.5V)*2
Operation Distance:8m Min.(front distance from receiver)
Operation Angle Range:±45°(horizontal),±20°(vertical)
Features:
1.USB 2.0 for software update/PVR/movie,music,picture media play back
2.Fully compliant with ISDB-T (MPEG 2/MPEG 4/ H.264)
3.Full HD output in 720p, 1080i, 1080p
4.Less than 0.5 Watt in standby
5.Multi-lingual OSD and user-friendly UI
6.Parental Control, Teletext, EPG supported
7.Favorite Group supported
8.PVR recorder supported with external USB
9.RCA CVBS outpuinterface
