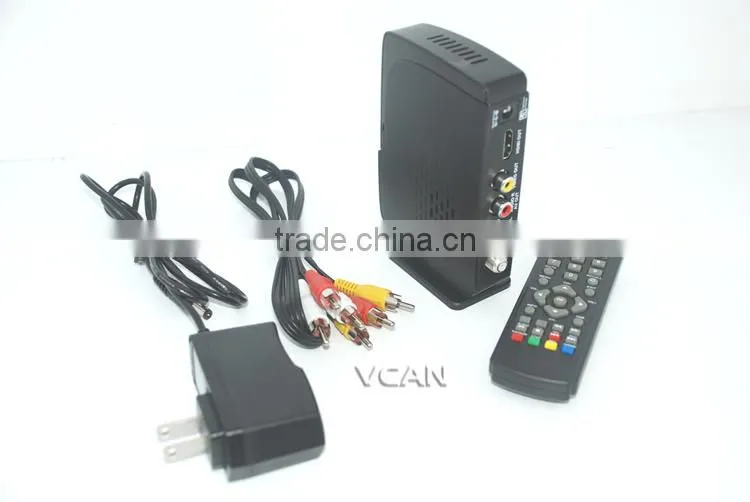

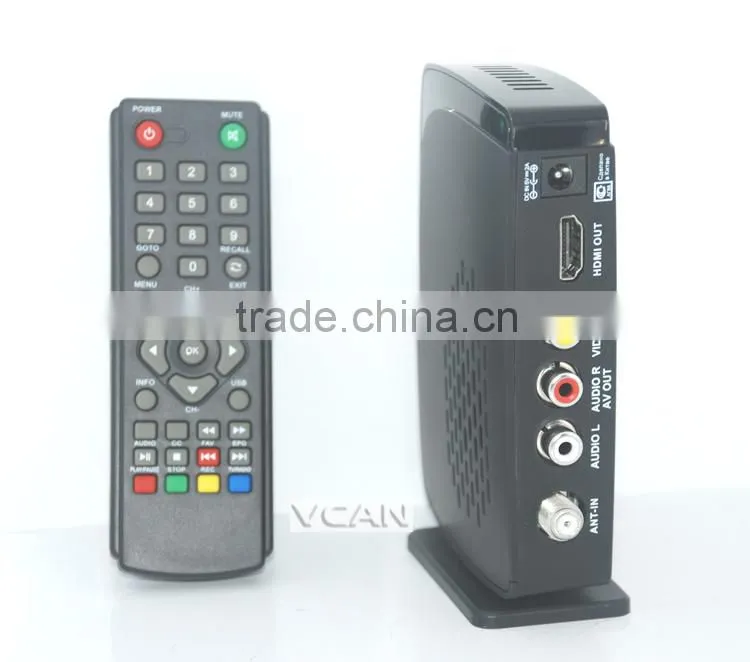

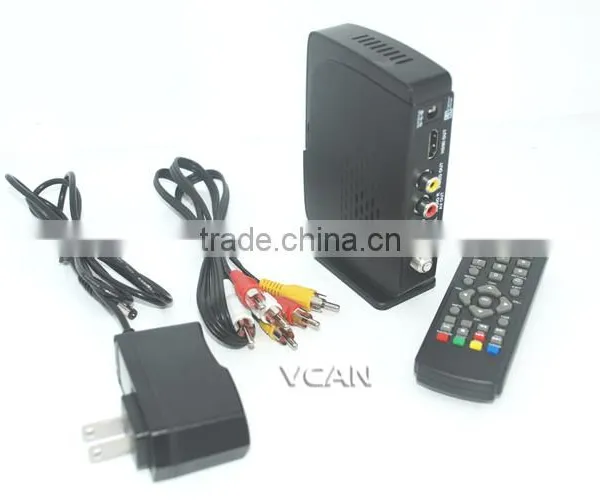

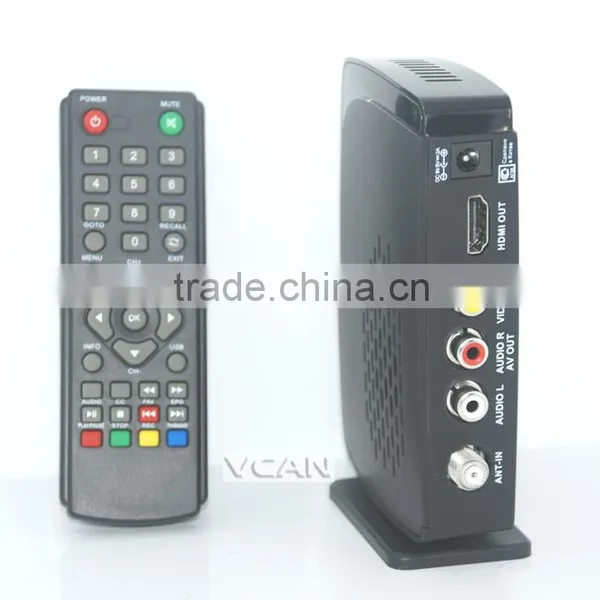

Help CenterVCAN1101 HD ISDB-T Home TV Receive Box Analog TV Upgrade USB for Philippines
Related Products
-
VCAN1046 Home ISDB-T MPEG4 Digital tv Receiver Full Segment for Philippines,Sri LankaUS$ 14.8 - 14.8MOQ: 1 Piece -
VCAN1047 Home ISDB-T Digital TV Receiver Digital tv Set Top Box for PhilippinesUS$ 14 - 16MOQ: 1 Piece
-
ISDB-T17 Digital MPEG4 HD DTV BoxUS$ 10 - 400MOQ: 1 Piece
-
VCAN1015 ISDB-T MPEG4 Digital TV Receiver USB RecorderUS$ 14.8 - 14.8MOQ: 1 Piece
-
ISDB-T17 Digital VGA LCD TV MPEG4 HD DTVUS$ 10 - 400MOQ: 1 Piece
RF Input/Demodulation
Connector Type:F-Female x1 for ANT input;F- Female x1 for LOOP THROUGH
Input Frequency:(UHF)470-866MHz,(VHF)170-230MHz
Bandwidth:6,7,8MHz
Signal Input level:-80dBm - -20dBm
Input Impedance:75Ohm
ANT Power:5V(On/Off),Imax=100mA
Demodulation Scheme"QPSK,16-QAM,64-QAM
Demodulation Type:OFDM, fully compliant with ISDB-T Standard
Media Features
Picture:JPEG,BMP,PNG
Power Supply
Adapter
AC Input:100-240VAC@50/60Hz±5%
Power Consumption:Max10W
Memory
Flash:32Mbit
DDRII Memory:512Mbit
Physical Characteristics
Physical Size:170mm * 96mm * 40mm
Front Panel
Key:POWER, CH+,CH-
Indicator:LED Indicator for Power On/Off
Remote Control Input:Infra-red receiver
Display:Option for 4 Digits 7-segment LED display
Connector:1xUSB2.0 interface
Rear Panel
Connector:2 x F-Female connector for ANT.IN and Loop THROUGH
HDMI 1.3 interface, up to 1080p
1xAV RCA( CVBS, L/R)
1xCOAXIAL
Remote Specifications
Battery:(AAA 1.5V)*2
Operation Distance:8m Min.(front distance from receiver)
Operation Angle Range:±45°(horizontal),±20°(vertical)
Channel List from Philippines market:
PTV SD1
PTV SD2
PTV SD3
PTV 1SEG
GMA
GMA 1SEG
GMA News TV
UNITV 1SEG
UNITV-1
UNITV-2
ADDTV
ABS-CBN
ABS-CBN One Seg
CINEMO! Encrypted
DZMM Teleradyo Encrypted
Knowledge Channel Encrypted
SPORTS+ACTION
YEY! Encrypted
TV Plus Xtra Channel Encrypted
SERVICE 1Seg
Service HD
BEAM SD1
BEAM SD2
BEAM 1seg
ETC+D
JACKCITY+D
2NDAVENUE+D
HSN+D
BTV+D
GNTV_SD
UNTV-3
TV5 1SEG
TV5 SD
