cctv cable rg59 cable with high quality
Specifications
cctv cable rg59 cable with high quality
ISO9001,ISO14001,CE,ROHS,UL(E365560)
| 0.81±0.02mmBC+3.71±0.1mmFPE+BONDED AL FOIL+64*0.12±0.01mmAL-MG Coverage 50%,Pitch 38mm+6.10±0.1mmPVC JACKET | ||

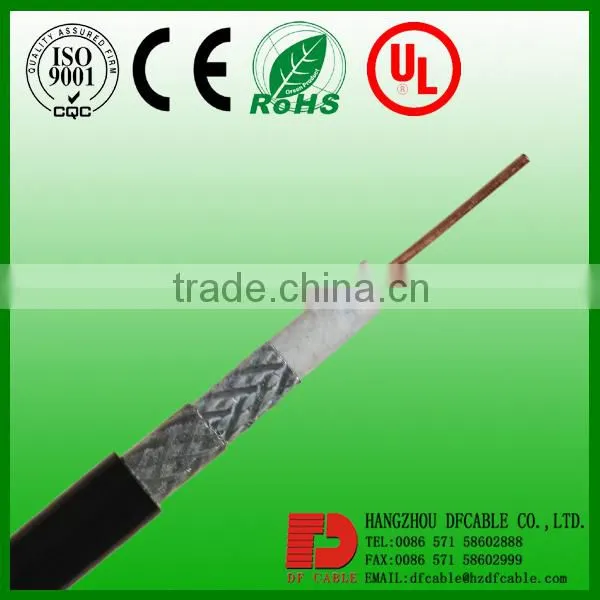

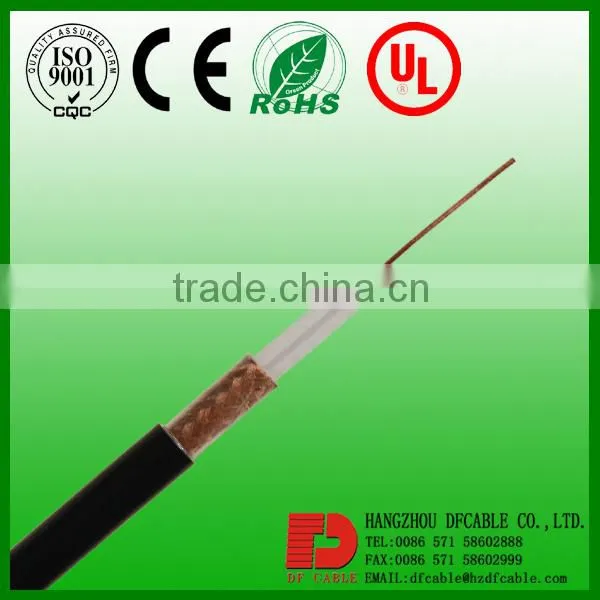

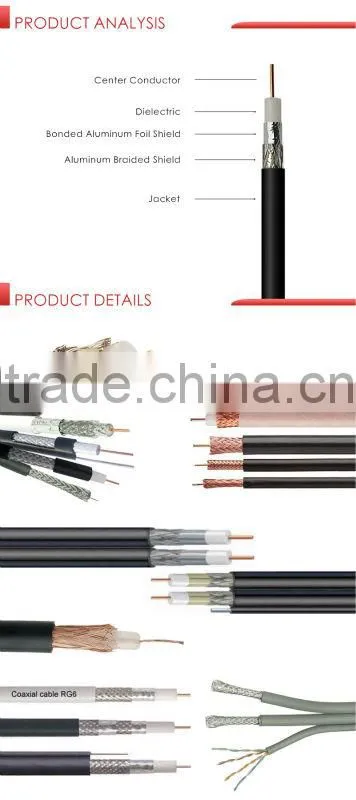

| Construction | ||
| inner conductor | 0.81±0.2mm | Bare Copper |
| dielectric | 3.71±0.1mm | Foam PE |
| shield | 15mm wide | Bonded Al Foil |
| braid | 4*16*0.12mm | Al-mg |
| jacket | 6.10±0.1mm | PVC |
| messenger | 1.30mm | Steel |
| jelly | per customs' request | |
| Mechanical Charecteristics | |||
| Minimum breaking | Dia. 1.30mm 82 kgf | ||
| Electrical Characteristics | |||
| Impedance | 75±3 ohms | ||
| Shielding Effectiveness(≥dB) | 50MHz | 85 | |
| 200MHz | 90 | ||
| 800MHz | 90 | ||
| Echo Loss(≥dB) | VHF | 22 | |
| UHF | 20 | ||
| Attenuation(20°C,dB/100m) | |||
| 5MHz | 2.82 | 400MHz | 16.73 |
| 55MHz | 6.73 | 450MHz | 17.72 |
| 211MHz | 12.47 | 550MHz | 19.52 |
| 270MHz | 13.85 | 750MHz | 22.87 |
| 300MHz | 14.60 | 870MHz | 24.85 |
| 330MHz | 15.29 | 1000MHz | 26.64 |
Q1:Are you a trading company or manufacture?
A1:DF cable is a professional manufacture,not a trading company,Thus,we can control
your order from the first begining to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after PO confirmation,but every inquiry will
be based on the quantity.
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20M,but every inquiry will
be considered individually.
A4:Usally we require advanced payment,and the balance before shipment,but every inquiry
Q5:What is your commerial item?
A5:Usually we adopt FOB Ningbo/Shanghai,CIF,CFR and others.

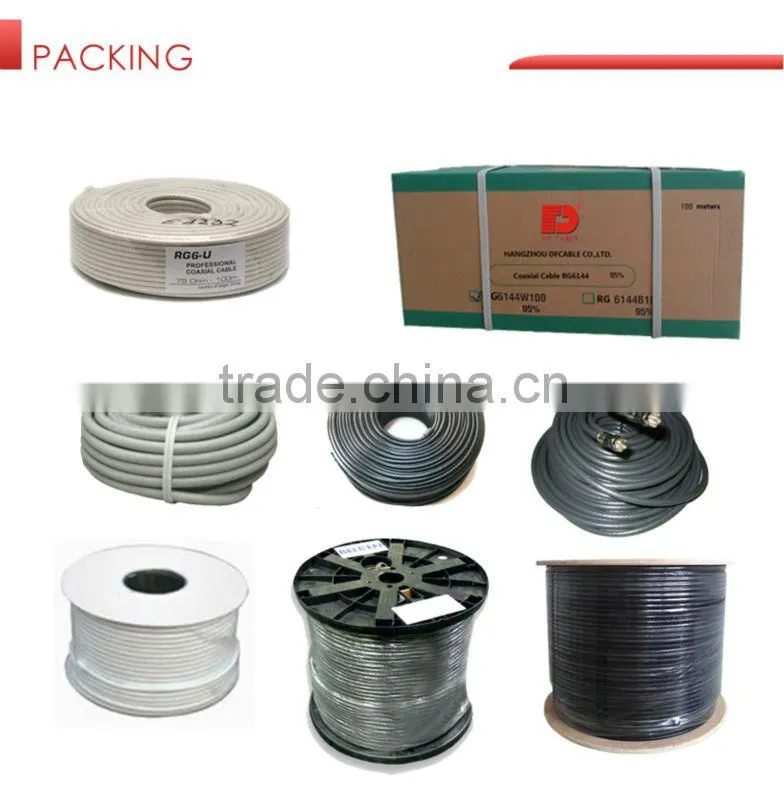

Q6:What is your main packing pattern?
A6: For inner packing:wooden reel,plastic reel,paper reel,shrink wrap:
For outer packing:carton box,pull-out box and pallet
Other packing methods are available after confirmation with clients
A7:Yes,we can.We have talented technical team and production team.
If you want to know more information about our products welcome to contact us in any time, And welcome to our company!
