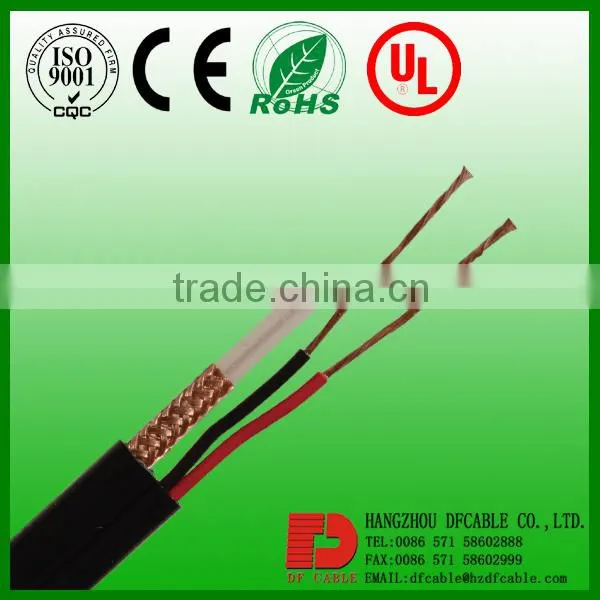

Help CenterFactory Direct Cable Coaxial RG59 With 2power Cable High Quality 75 Ohm CCTV
Related Products
-
Cctv Cable Rg59 Cable With High QualityUS$ 46 - 200MOQ: 10 Kilometers -
CE ISO9001Top Quality 75ohm Cable Rg59 Communication CableUS$ 50 - 300MOQ: 10 Kilometers
-
CE ISO9001 Beat Quality 75ohm Cable Rg59 Communication CableUS$ 50 - 300MOQ: 10 Kilometers
-
75ohm Cable Rj59 With Power CableUS$ 50 - 300MOQ: 10 Kilometers
-
Coaxial Cable Rg6US$ 0.1 - 0.5MOQ: 10 Kilometers
DESCRIPTION
1,RG59 Specs:0.81CCS+3.66FPE+AL FOIL+AL BRAIDS+6.1PVC
2,CE,ROHS,ISO9001
3,MOQ:30KM
4,Price:factory price
5,Leadtime:10days
Product DescriptionConstruction:
Inner Conductor:0.81± 0.01mm Copper Clad Steel 21%
Dielectric:3.66± 0.05mm Foam PE
Shield :Bonded Aluminum PET Aluminum
Braid Coverage:0.12mm *16*6 (60%)AL-Mg Alloy
Shield:Aluminum PET Aluminum
Jacket:6.1± 0.05 mm PVC
Jelly/APD:Per Customized
Note:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
Electrical Specifications:
Characteristic Impedance:75 Ohm± 3 Ohm
Nominal Velocity of Propagation:85%
Nominal Capacitance :16.2 pF/ft
Return Loss : 20dB min (5-2250 MHz)

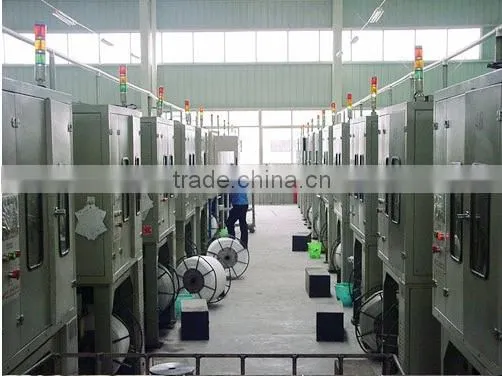

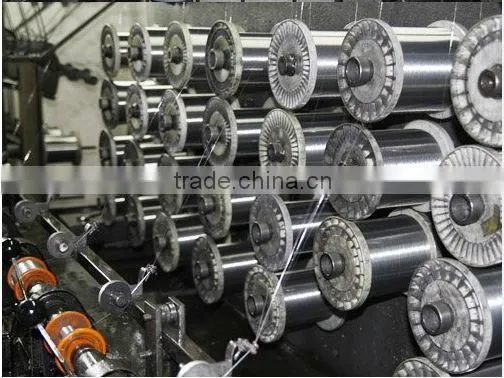

Product Procedure
Packing Picture
If you want to know more information about our products welcome to contact us in any time, And welcome to our company!
