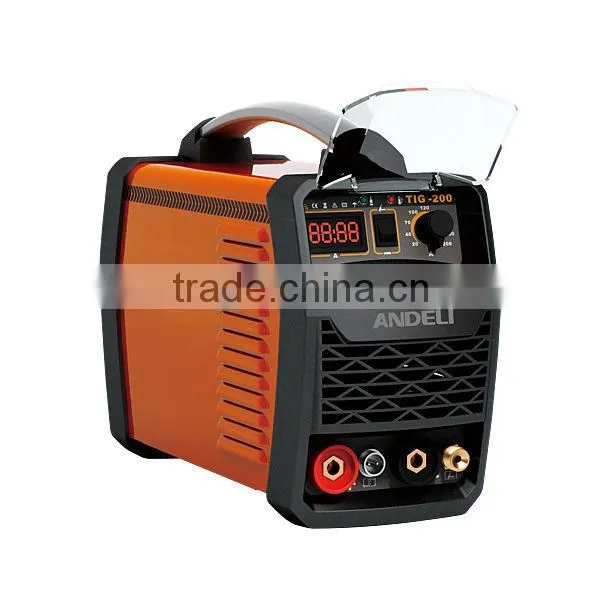

Hot Selling Inverter DC TIG Welding Machine TIG-200 (IGBT Chip) From Manufacturer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
ANDELI
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tig Welding Machine Using Aluminum Portable Electric IGBT Inverter Tig WelderUS$ 50 - 150MOQ: 50 Pieces -
Latest QUALITY Tig Welding Machine TIG-200P Inverter Welding Machine 110v With CE,CCCUS$ 100 - 299MOQ: 1 Set
-
Looking for China Representative Welding Machine Tig Mma Argon Welding Equipments TIG-200US$ 50 - 150MOQ: 50 Pieces
-
Pulse Tig Welding Machine From Famous Manufacturer ANDELINegotiableMOQ: 1 Set
-
Chinese Welding Machine Manufacturer Portable IGBT Inverter ac dc Tig Welder (TIG 200)US$ 50 - 150MOQ: 50 Pieces
Condition
New
Place of Origin
Zhejiang, China
Brand Name
ANDELI
Model Number
TIG-200 (IGBT chip)
Wire Feeding Speed
2.5-16 M/min
Dimensions
335*120*200mm
Weight
7kg
Usage
tig welding machine
Voltage
380v±10%
Power(W)
5.7KVA
Certification
CE,CCC ,ROHS
Warranty
1 year
After-sales Service Provided
Overseas third-party support available
Specifications
Inverter DC TIG Welding Machine1. Light & Portable
2. duty cycle 60%
3. IGBT chip
4. High welding quality
Factory wholesale Inverter DC TIG Welding Machine
| Portable TIG/MMA Welding Machine | |||
| Model | TIG-180G | TIG-200G | TIG-250G |
| Type | IGBT Chip | ||
| Rated input voltage (V) | single phase AC220 ±15% | three phase AC380 ±15% | |
| Rated frequency (Hz) | 50/60 | 50/60 | |
| Rated input power (KVA) | 5 | 5.7 | 8 |
| Rated input current (A) | 23 | 26 | 12 |
| Rated output | 155A/26.2V | 170A/26.8V | 220A/28.8V |
| Output current (A) | TIG: 20-175 MMA: 20-155 | TIG: 20-190 MMA: 20-170 | TIG: 20-220 MMA: 20-220 |
| No-load voltage (V) | 56±5 | 62±5 | 62±5 |
| Rated duty cycle (%) | 60 | 60 | 60 |
| Efficiency (%) | 80 | 80 | 80 |
| Power factor | 0.7 | 0.7 | 0.7 |
| Protection grade | IP21 | IP21 | IP21 |
| Insulation grade | F | F | F |
| Net weight (KG) | 5.5 | 6.4 | 20 |
| Gross weight (KG) | 8.4 | 9.3 | 22 |
| Housing of machine | iron | iron | |
| Dimension of machine (mm) | 335×120×200 | 480×200×375 | |
| Dimension of packing 1V1 (mm) | 428×228×226 | 472×237×336 | |
| Dimension of packing 4V1 (mm) | 475×445×485 | — | |
| including accessories: earth clamp×1pcs, cable joint×2pcs, inner hexagon spanner×1pcs, grounding cable×3meters, TIG torch×1set (QQ150A for TIG-180G/200G, WP-26 for TIG-250G) | |||
| plastic box with complete accessories is optional | |||
Our Competive:
Our clients include:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
Advanced inverter technology, simple circuit, compact, light, high efficiency and energy saving.
-Strong power line compensate ability, anti-power supply fluctuation, steady welding current, reliable performance.
-Small DC arc welder uses scale trust control technology, single knob adjustment, easy operation.
-Suit for low carbon steel, mid carbon steel and alloy steel, all ferrous metal can get good quality welding seam.

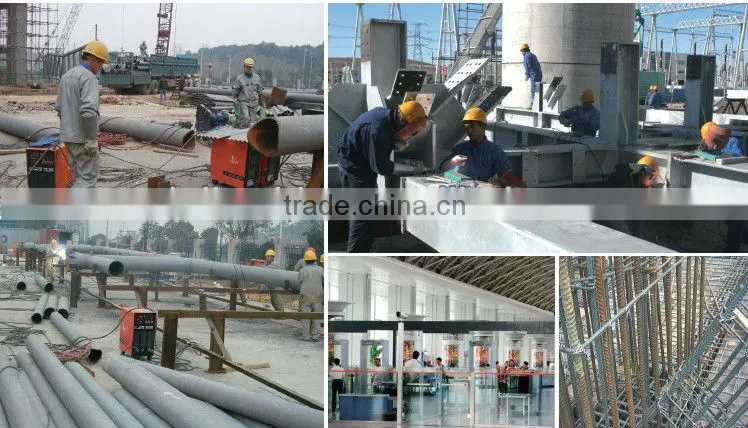

-Widely used for oil pipeline, petrochemical, car, shipbuildinge, boiler, nuclear electricity, bridge building and outdoor working
