Specifications
tig welding machine using aluminum portable electric IGBT inverter tig welderSupport TIG & MMA
IGBT technology
CE,CCC
tig welding machine using aluminum portable electric IGBT inverter tig welder
1.Product Features and Technical Details
Portable TIG/MMA Welding Machine
Model: TIG 200,250,315,400,500
A--Product Features
IGBT TYPE
1.support Tig MMA two kinds of welding
pact and portable,easy and simple to operate
3.hot striking arc current is adjustable
4.acid or electrode suit
B--Technical Details
| tig welding machine using aluminum portable electric IGBT inverter tig welder | |||
| Model | TIG-180G | TIG-200G | TIG-250G |
| Type | IGBT Chip | ||
| Rated input voltage (V) | single phase AC220 ±15% | three phase AC380 ±15% | |
| Rated frequency (Hz) | 50/60 | 50/60 | |
| Rated input power (KVA) | 5 | 5.7 | 8 |
| Rated input current (A) | 23 | 26 | 12 |
| Rated output | 155A/26.2V | 170A/26.8V | 220A/28.8V |
| Output current (A) | TIG: 20-175 MMA: 20-155 | TIG: 20-190 MMA: 20-170 | TIG: 20-220 MMA: 20-220 |
| No-load voltage (V) | 56±5 | 62±5 | 62±5 |
| Rated duty cycle (%) | 60 | 60 | 60 |
| Efficiency (%) | 80 | 80 | 80 |
| Power factor | 0.7 | 0.7 | 0.7 |
| Protection grade | IP21 | IP21 | IP21 |
| Insulation grade | F | F | F |
| Net weight (KG) | 5.5 | 6.4 | 20 |
| Gross weight (KG) | 8.4 | 9.3 | 22 |
| Housing of machine | iron | iron | |
| Dimension of machine (mm) | 335×120×200 | 480×200×375 | |
| Dimension of packing 1V1 (mm) | 428×228×226 | 472×237×336 | |
| Dimension of packing 4V1 (mm) | 475×445×485 | — | |
| including accessories: earth clamp×1pcs, cable joint×2pcs, inner hexagon spanner×1pcs, grounding cable×3meters, TIG torch×1set (QQ150A for TIG-180G/200G, WP-26 for TIG-250G) | |||
| plastic box with complete accessories is optional | |||

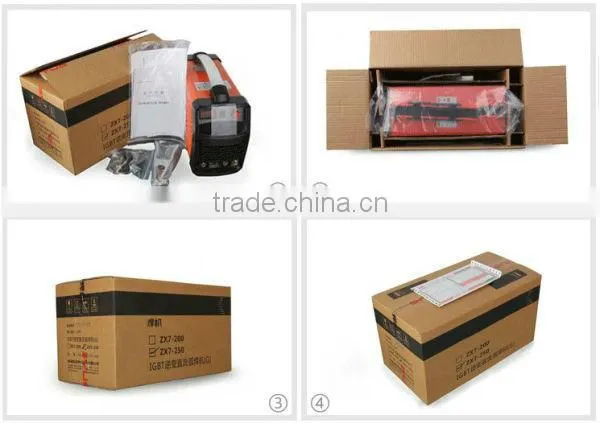

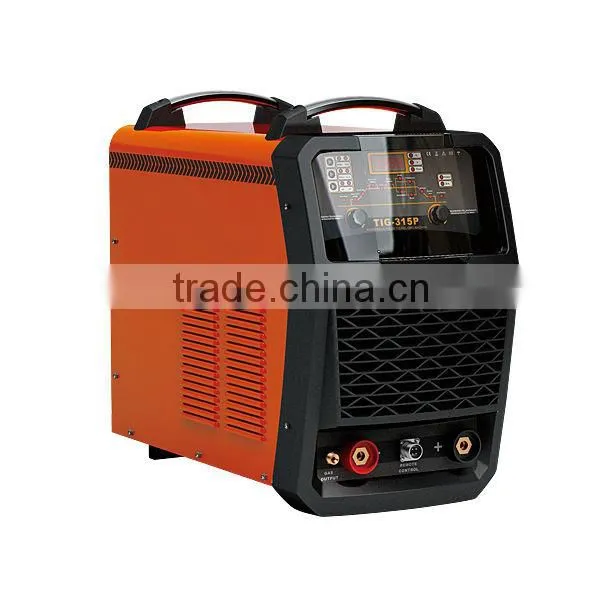

2.Product Show
3.About us
| Why choose us? |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993. |
AS a result,
ANDELI Welder selling NO.1 on (chinese biggest B2C website)
Contact with me :
Name:George Lin
Email:andeli308(at)
Tel: +86 0577 61722856/+86 15167775793
Skype:georgelin110
Thanks for your time,Feedback in 24 hours when Inquiry,Even in weekend!
