Inverter DC high duty portable Plasma stainless steel cutter cutting machine
- 5000 Piece / Pieces per Month
- FOB NingBo/ShangHai
- T/T Credit Card
- 1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
- 4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
- Automatic cnc plasma cutting machine gate cnc router 120a/200a
- Fully automatic 20mm plasma cutting machine custom size high quality
- 200mm pipe table axe for plasma metal cutting machine spare parts in weifang
- China gantry cnc plasma and oxy cutting machine dust removal equipment
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | Andeli |
Model Number: | cut 40 | Voltage: | AC220V | Rated Power: | 7KVA |
Dimension(L*W*H): | 450*235*390 | Weight: | 8.7KG | Certification: | CE,CCC |
Warranty: | 1 year warranty | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
stainless steel cutter cutting machine1.CE,CCC
2.plasma cutter stainless steel,
carbon steel,copper,aluminum
3.high duty
portable Plasma stainless steel cutter cutting machine
Models:
MOSFET Type:CUT-40 CUT-60
IGBT Module: CUT-100 CUT-120 CUT-160 CUT-200
1.Product Features and Technical Details
A--Product Features
Product description:
1. inverter air plasma cutting machine series adopt IGBT soft-switch technology,more stable performance
2. high duty cycle result in less power consumption
3. more economical and efficient than the traditional cutting machine
due to the high speed,high temperature and high energy plasma draught
4. small and smooth cutting seam,little transmutation
5. over-heat protection,over-voltage protection,under voltage protection
and lack of compressed air pressure protection
B--Technical Details
Portable Air Plasma Cutter | ||
Model | CUT-40 | CUT-60 |
Type | MOSFET | |
Rated input voltage (V) | single phase AC220 ±15% | three phase AC380 ±15% |
Rated frequency (Hz) | 50/60 | |
Rated input capacity (KVA) | 6.6 | 7.9 |
Rated input current (A) | 30 | 12 |
No-load voltage (V) | 230 | 260 |
Output current (A) | 20-40 | 20-60 |
Rated working voltage (V) | 96 | 104 |
Duty cycle (%) | 60 | 60 |
No-load loss (W) | 100 | 100 |
Efficiency (%) | 80 | 80 |
Power factor | 0.73 | 0.73 |
Net weight (KG) | 8.7 | 16.6 |
Gross weight (KG) | 12 | 21 |
Dimension of machine (mm) | 400×163×290 | 500×210×370 |
Dimension of packing (mm) | 450×235×390 | 560×270×460 |
Method of arc start | contact | contact |
Cutting thickness (mm) | steel: 0.3-16 | steel: 1-25 |
Optimum thickness of work piece (mm) | steel: 0.3-8 | steel: 1-15 |
aluminum/copper: 0.3-4 | aluminum/copper: 1-7 | |
including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, gas hose×0.6meter, hose hoop×2pcs, cutting torch×1pcs |

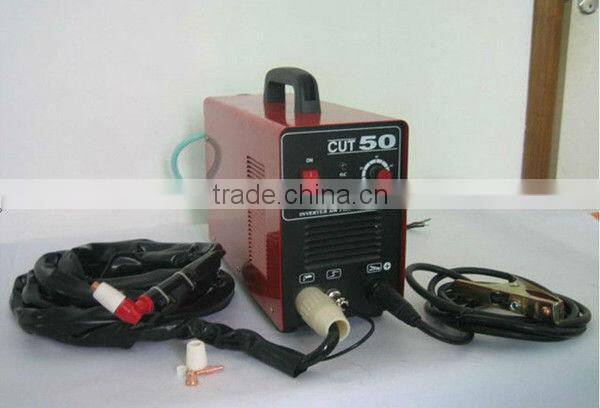

2.Products Show
Beautiful welding shape design-- Plasma cutting machine

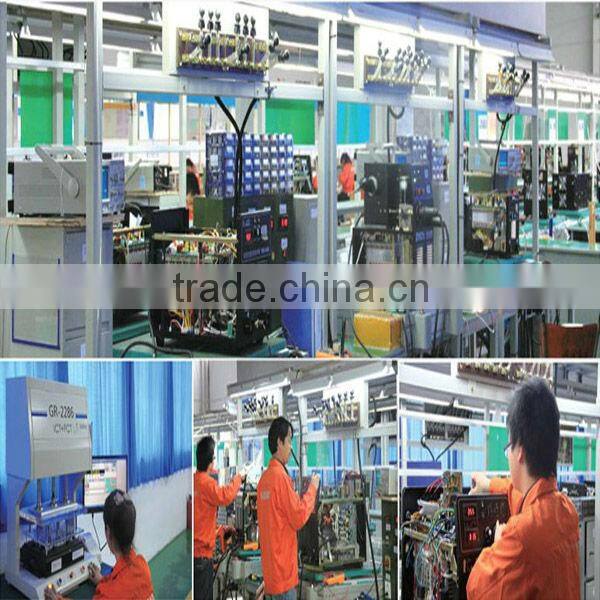

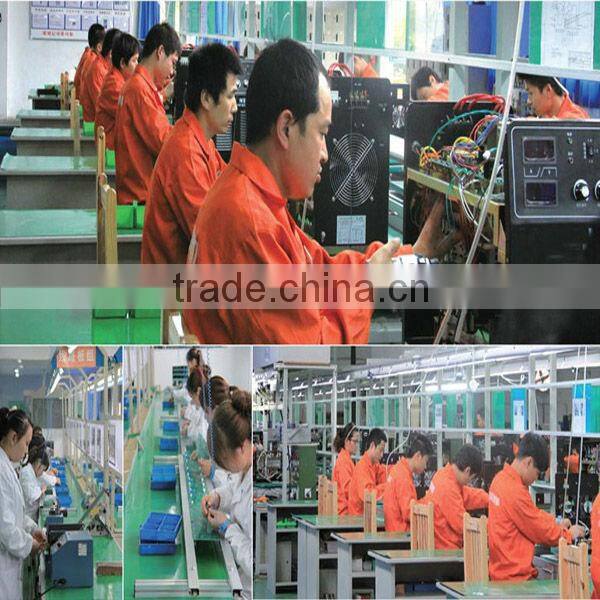

3.About us
Inverter DC high duty portable Plasma stainless steel cutter cutting machine
Why choose ANDELI Brand welding machine?
·Welding machine Manufacturer,OEM vendor.
·Annual 40,000 sets welders exported, good feedback.
·Dustproof straight blowing design----Super size radiator
·SMT patent PCBS----amorphous transformer
·Import Fairchild,Infineon,Renasas IGBT/MOsfet
·Other famous brand components.
·Foreign site instruction for large order
·1% free spare parts to support repairment,one year warranty.
AS a result,
ANDELI Welder selling NO.1 on (chinese B2C)
Market | Revenue(Previous Year) | Total Revenue (%) |
Eastern Europe | confidential | 20% |
Southeast Asia | confidential | 12% |
Mid East | confidential | 8% |
Domestic Market | confidential | 60% |
Inverter DC high duty portable Plasma stainless steel cutter cutting machine
