0.9m Flyaway Antenna System

FOB Price

USD $13,000 - $15,000 / Set

1 Set(Min.Order)

Supply Ability 0 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Beijing, China

Brand Name:

BCS

Model Number:

BCS900FM

Product Description

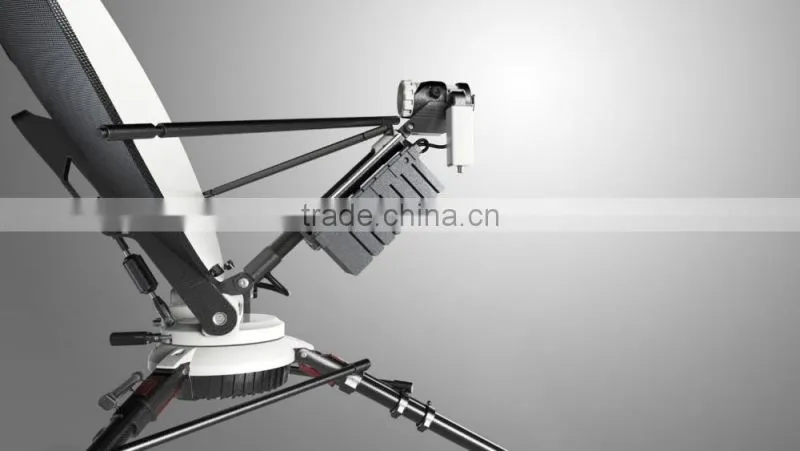

BCS900FM is a portable antenna system especially for individual backpacking. This antenna system is designed and developed by BCS which is very suitable for applying in emergency communication, news gathering, remote medical consultation, and rescue operation etc. This is a 0.9m manual operation backpacking flyaway antenna system with assistant satellite-acquisition function, which makes it the most convenient and fastest satellite-acquisition manual operation flyaway antenna system ever.

Features:

■ Extremely light weight

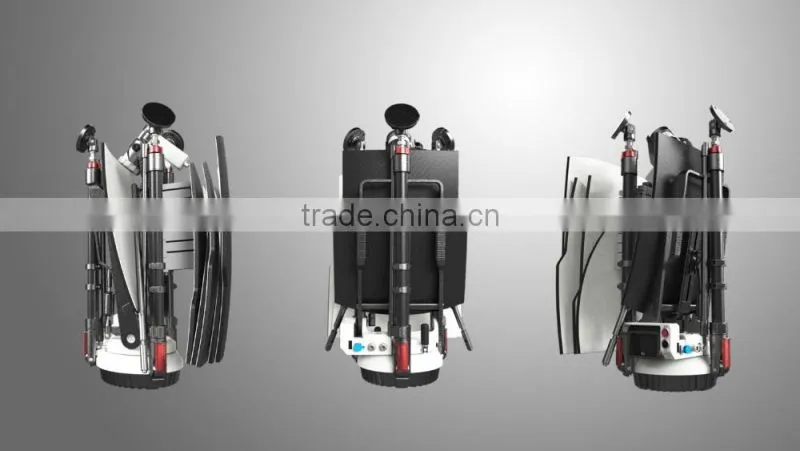

The antenna is made by carbon fiber material with extremely light weight so that the whole antenna system can be stowed in a backpack for individual backpacking

■ The antenna system is stowed and assembled easily and conveniently
All the components are using integrated design except the antenna reflector so that stowing or assembly work is minimal.

■ Excellent human-machine interaction

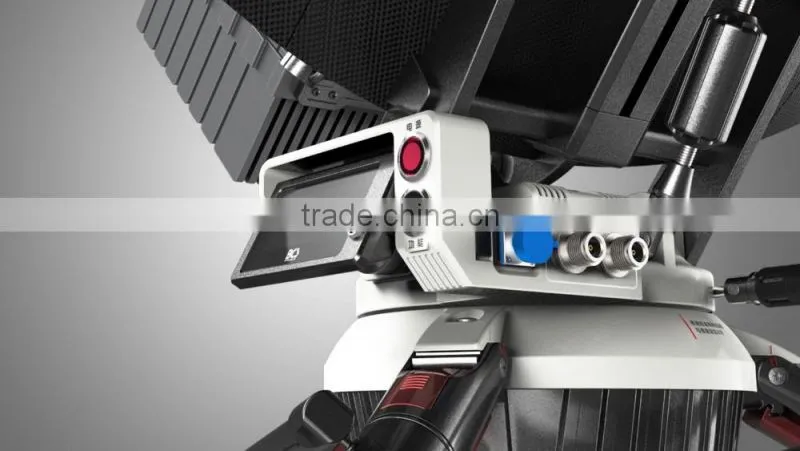

The graphical user interface is simple and clear so that any user is able to finish the satellite acquisition work without professional training.

■ Easy operation for satellite acquisition
Users are able to quickly finish the satellite acquisition work within two minutes according to simple instructions and UI.

Technical parameters:

Electrical properties
Reflector size	0.9 meter
Working frequency	Transmit (GHz)	14.00～14.50
Working frequency	Receive (GHz)	12.25～12.75
Gain	Transmit (dBi)	≥40.34 dBi（G0 at 14.25GHz）
Gain	Receive (dBi)	≥39.2 dBi（G0 at 12.5GHz）
Polarization mode	Linear polarization
Cross-polarization isolation	Axis direction	≥35dB
Cross-polarization isolation	1dB point	≥30dB
VSWR	≤1.3︰1
3dB wave width	Transmit	1.4°
3dB wave width	Receive	1.6°
Power capacity	300W
Port	WR75
Tx/Rx Isolation	≥85dB
Side lobe	Far side lobe envelope 29-25 log θ （100λ/D）°≤θ≤15°
Noise temperature	≤45K（at 10°、20°、30° 12.5GHz）
G/T	≥19dB/K （at 30° 12.5GHz）
Feed port isolation-Tx to Rx	Transmit	≥85dB
Feed port isolation-Tx to Rx	Receive	≥35dB
Insertion loss	Transmit	≤0.3dB
	Receive	≤1dB

Mechanical properties
Weight	Antenna weight ≤12kg; backpack≤2kg; Total weight ≤14kg (without BUC);
Elevation	0°~85°
Azimuth	±180°
Polarization	±95°
Backpack size	400mm×400mm×700mm (widthdepthheight)

Environmental conditions
Working temperature	-40—60℃
Storage temperature	-55—70℃
Working humidity	≤95%（30℃）
Altitude height	≤4500m
Sandstorm resistance	Can withstand the sandstorm in Gobi desert
Heavy rain resistance	Can work normally over 60min in 6mm/min rain
Salt fog resistance	Can withstand salt fog erosion in coastal areas
Working wind speed	Can work normally and freely under 8m/s wind
Working wind speed	Can work in fixed status and lowered precision under 11m/s wind
