4ft Automatic Portable Antenna System

4ft Automatic Portable Antenna System thumbnail-1
4ft Automatic Portable Antenna System thumbnail-2
4ft Automatic Portable Antenna System thumbnail-3
4ft Automatic Portable Antenna System thumbnail-4
4ft Automatic Portable Antenna System photo-1
4ft Automatic Portable Antenna System photo-2

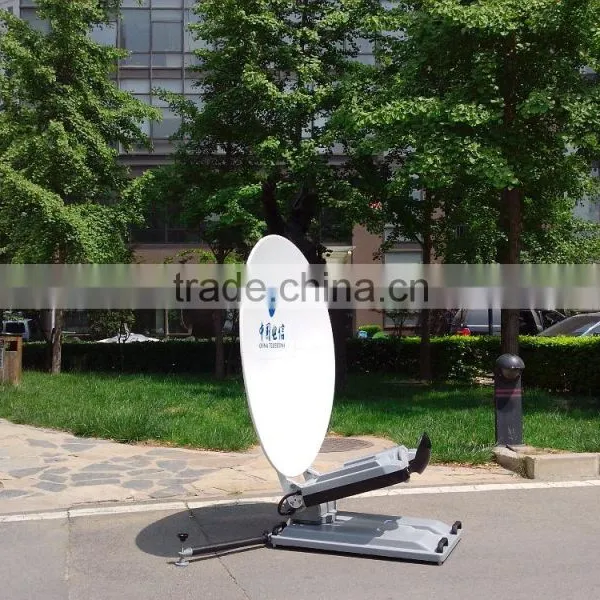

4ft Automatic Portable Antenna System photo-3
4ft Automatic Portable Antenna System photo-4
US$ 19,000 - 21,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
BCS
Model Number:
BCS1200FA
Contact Supplier Request Quote Chat Now
China Aerospace System Engineering Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name BCS
Model Number BCS1200FA
Product Description

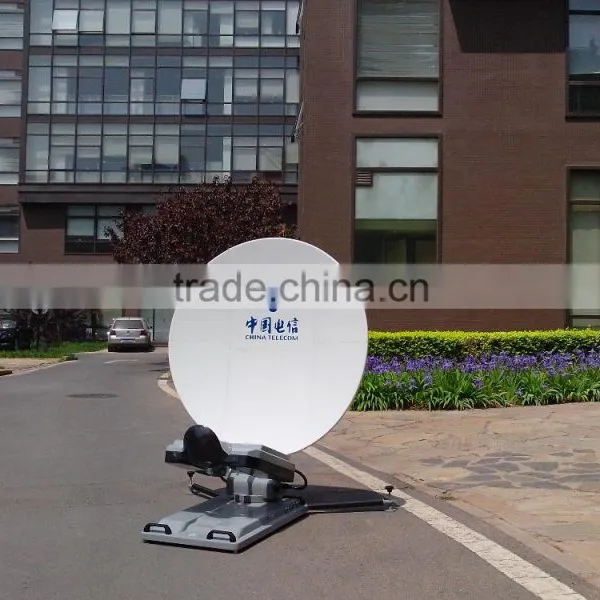

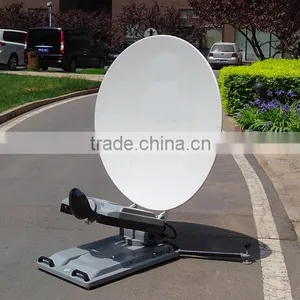

BCS1200FA is an automatic portable antenna system designed by BCS with full intellectual property rights. The product features easy operation, rapid deployment, stable and reliable performance etc. It is widely used in national security, emergency communication, telecommunication, news and broadcasting, petroleum and petrochemical, scientific exploration and other fields.

Features:

■ Structure and material：The dual-reflector feed system reduces the length of feed bracket. The BUC and LNB are build-in, which reduces the workload for antenna expanding and stow, this also improves the positioning accuracy. Most of antenna materials are made of carbon fiber, which makes the antenna has lighter weight and stronger rigidity.


■ Satellite-acquisition capability: With both automatic and manual operating mode, the antenna could deploy in minutes. The antenna is compatible with satellite beacon receiver and DVB satellite signal receiver. The acquisition and stowing process can be realized by one button. Highly reliable transmission system and antenna control system guarantee the satellite tracking precision and 100% satellite capturing accuracy.

■ Highly integrated power management system: The exterior of antenna is designed with unified power port. Antenna-control circuit, sensor, electrical engine, and even BUC and LNB are all powered uniformly by electric power management system. The total power consumption of antenna system (without BUC) is less than 65W.

■ Reliability: The whole antenna system is designed and manufactured strictly according to military standard and has successfully passed 4 units of military test. The MTBF is up to 2000h.

Technical parameters:

Electrical
Reflector
1.2m Carbon-Fiber
Precision of Reflector
RMS≤0.1mm
Feed
Linear polarization, two-port，dual reflector，offset
Frequency
Transmit
13.75—14.5GHz
Receive
12.25—12.75GHz
Gain
Transmit
≥43dBi
Receive
≥41.8dBi
Cross Polarization Isolation
On-Axis
≥35dB
1 dB
≥30dB
Feed Port Isolation - TX to RX
≥85dB
VSWR
≤1.25：1
Power Capacity
300W
RF Interface
WR75
3dB Beam Width
Transmit
1.2º
Receive
1.38º
Side lobe
Side lobe level: Side lobe peak of portable stations≤90%
G=29-25logθdBi(1º≤θ≤20º)
G=-3.5dBi(20º <θ<26.3º)
G=32-25logθdBi(26.3º≤θ≤48º)
G=-10dBi(θ>48º)
Mechanical
Case Dimensions
946mm×690mm×494mm
Total Antenna Weight
≤37kg(without BUC)
Case Weight
25kg
Handling
By hand or roller to move

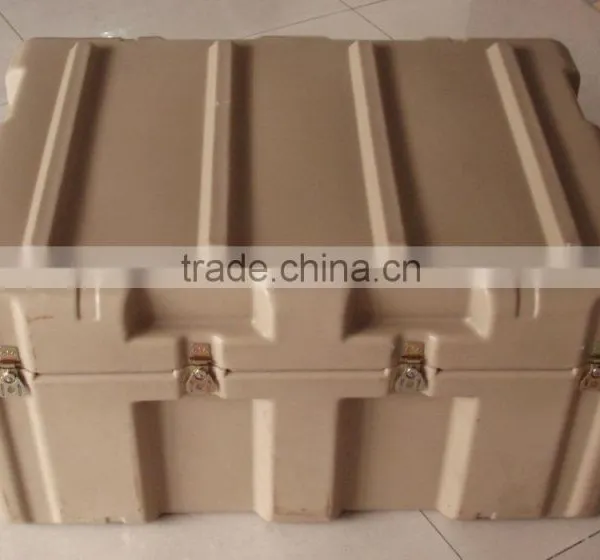

Rugged Case
Tri-axis motor-driven
Travel range
Azimuth
±90º
Elevation
0º—90º
Polarization
±95º
Travel speed
Azimuth
0．1—4.5º/s Adjustable,0.1ºstep
Elevation
0．1—4.5º/s Adjustable, 0.1ºstep
Polarization
4º/s constant, 0.1ºstep
Bearing Capacity
Azimuth
175 Nm
Elevation
291Nm
Controllers
Input Power
AC220V
Acquisition
Automatic or manual, one-button acquisition for required satellite
Configuration
Hand-hold controller in the case
Interface
Chinese/English
Auxiliary device
GPS, Inclinator, Absolute Controller, Electronic Compass
Auto-Acquisition Time
≤3min
Acquisition Accuracy
≤0.2º (≤0.5dB)consumption
Equipment Power Consumption
≤65W（without BUC）
Environmental
Drop test
In loading state, antenna case falls without any damage in 500mm height.
Operating Temperature
-40—60℃
Storage Temperature
-55—80℃
Operating Humidity
0-95%(30℃)
Operating altitude
≤5000m
Sand-proof
Resist dust blowing in deserts
Rain-proof
Not less than 60min in the rainfall intensity of 6mm/min
Salt mist test
Military communication equipment standards
Shock resistance
Operational vibration 15m/s²
Operating Wind Speed
≥11m/s in free working state
≥25m/s reduced accuracy
Survival Speed
≥25m/s(packing state)
Our company

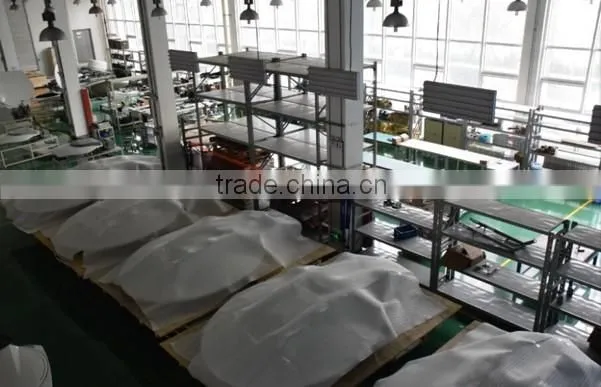

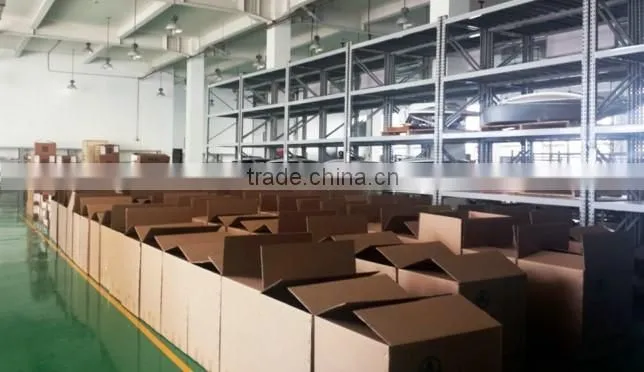

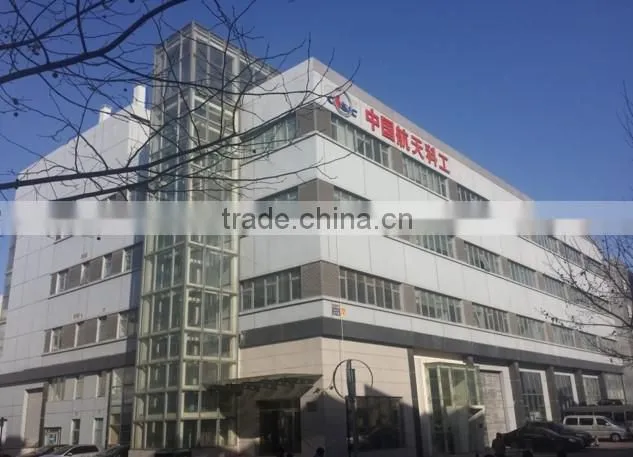

Beijing Aerospace Science & Industry Century Satellite Hi-Tech Company (abbreviated as BCS) is affiliated with China Aerospace Science & Industry Group. It is a high-tech company specialized in manufacturing, integrating and developing  satellite communication related products. BCS has great advantage in satellite communication system R&D and integration since we got the valuable experience of military product R&D and large-scale project management from China Aerospace industry as well as the rigorous working style.




CERTIFICATATIONS

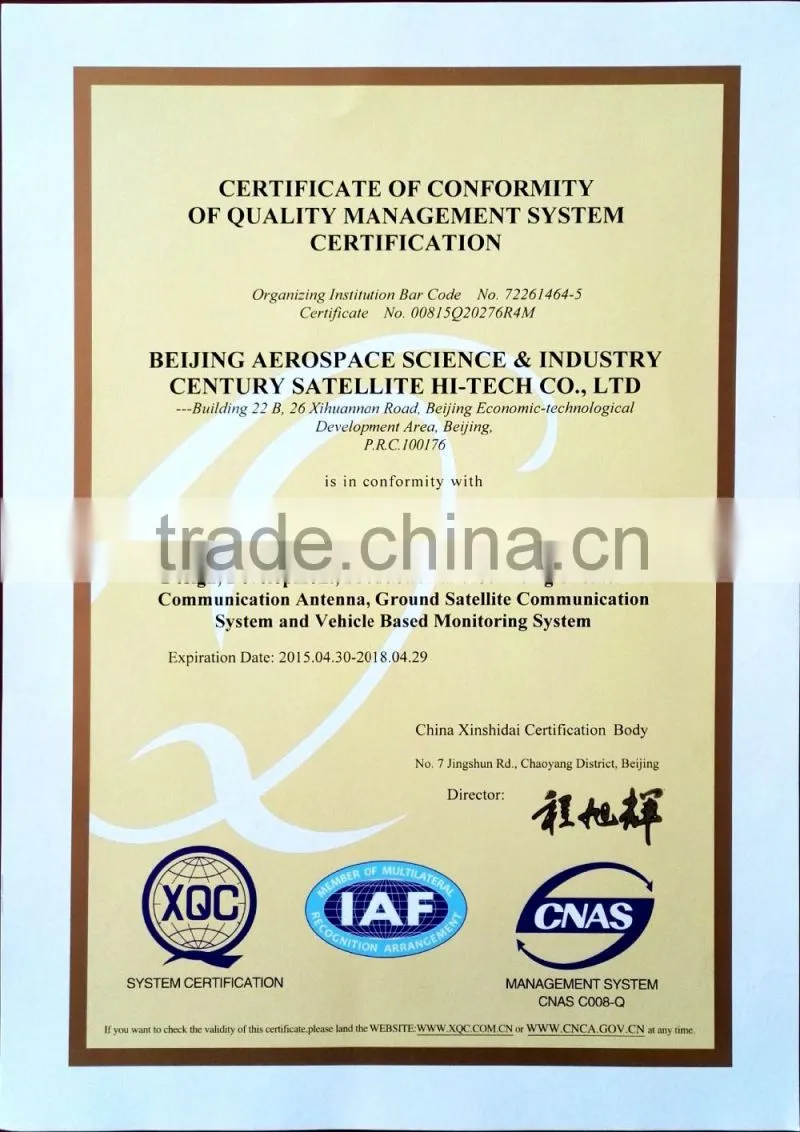

■ GB/T19001-2008/ISO9001-2008 quality certification

■ GJB9001B-2009 Weaponry quality certification

■ Qualification certificates of communication information network system integration



Our customers:

China Mobile;

China Telecom;

PLA Armed Police Force;

Ministry of Public Security of China;

China National Petroleum Corporation;

Sinopec;

China Central Television;

China Seismological Bureau;

DongFeng Motor Corporation;
