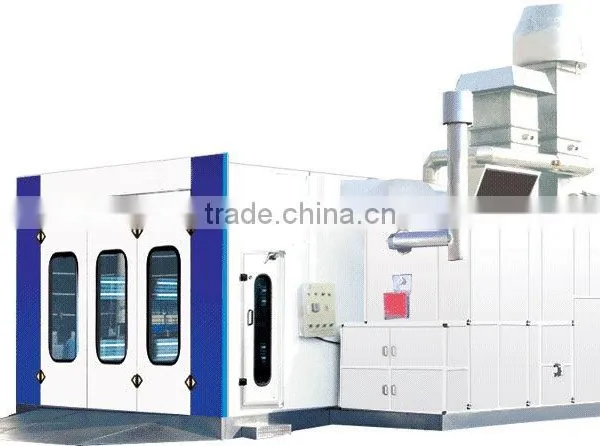

Spray Booth/Spray Room/Auto Spray Painting Booth/Auto Care/Auto Maintenance/Paint Booth/Auto Spray Booth/Car Spray Booth CRE8700
Product Specification:
Outside Size (mm) |
7040×5500×3450 |
Front Door(mm) |
3000(w)×2600(H) |
Inside Size(mm) |
6900×4000×2650 |
Total Power(km) |
30 |
Product Description:
Cabin System |
Wallboard |
EPS (epispastics polystyrene) Colorful Steel Skin Boards, 70mm Thick, Ceiling panel: 50mm thick. The side door with a pressure lock which will automatically open when the pressure inside is over-pressure. |
||
Basement |
Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps |
|||
Air Circulation System |
Inlet Fan |
Model: YDW 4.5L1 |
Outlet Fan |
Model: 4-82-6.3E |
Capacity: 24000m3/h |
capacity: 30000m3/h |
|||
Pressure: 800Pa |
Pressure: 1236Pa |
|||
Power: 4kw |
Power: 15kw |
|||
Quantity: 2 sets |
Quantity: 1set |
|||
The circulation system covers a set of automatic valve and two sets of manual valve. Manual adjustment valves are placed in inhaling and exhaust duct to control airflow volume and adjust pressure. A stainless steel trapezoid hood and a stainless cone hood | ||||
Purification System |
Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 4μm. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.2mg/m3 |
|||
Heating System |
Burner |
Italy Riello Brand, RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor 2 sets quick dryer. |
||
Heat Energy Converter |
SUS304 Stainless Steel heat exchanger, argon arc welding, heat exchange rate 85%; |
|||
Max Temp:80.C, Heating Time:4-6min(20-60), Fuel Consumption: 6-8kg/vehicle | ||||
Light System |
Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, 1100 Lux |
|||
Controlling System |
PLC controlling, soft touching button, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, Failure alarm, timer |
|||
Environmental System |
No-pump water curtain for mist filtering device can reduce more than 98% of the fog without the trouble of replacing drying-method filter by fully mixing fog, water and air, and ensure a qualified exhaust according to the relevant state standards |
|||
