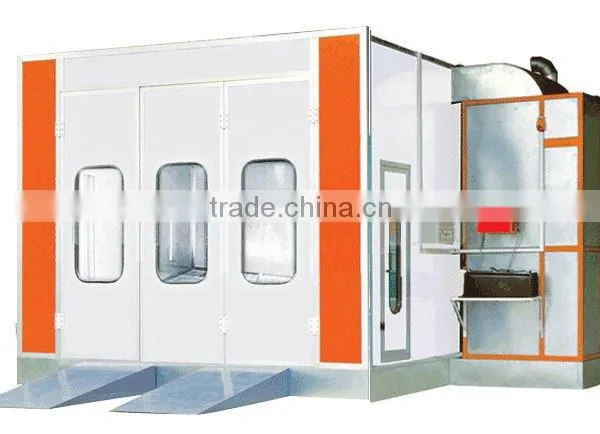

Spray Booth/Spray Room/Auto Spray Painting Booth/Car Spray Booth/Automobile Spray Booth/Bus Spray Booth/Auto Spray Booth CRE8200

Outside Size (mm)

7000×5560×3430

Front Door(mm)

3000(w)×2700(H)

Inside  Size(mm)

6900×4000×2800

Total Power(km)

10

Cabin System

Wallboard

EPS (epispastics polystyrene) Colorful Steel Skin Boards, 50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation, Galvanized steel roof panel

Basement

Galvanized Steel Sheet and Square steel pipe assembling, Grid &embossed plate floor, Three embossed steel ramps.

Air Circulation System

Inlet Fan

Model:              YDW 4.5L1

Outlet Fan For Option

Blower capacity:     24000m³/h

Pressure:                815Pa

Rolling speed:          900rpm

Power:                     4kw

Quantity:                 2 sets

Air Volume: 24000m³/h; Air Speed: 0.35m/s, Air Recycling times:280 times/h;

Purification System

Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 4μm. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.4mg/m³

Heating System

Burner

Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h, 10N Damp Motor

Heat Energy Converter

SUS304 Stainless Steel heat exchanger, argon arc welding;

Max Temp:80^.C, Heating Time:4-6min(20-60), Fuel Consumption: 4-5kg/vehicle

Light System

Ceiling Light: 24pcs 36w Philips Lamp; 800 Lux

Controlling System

Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
