Factory price Very-high performance Intel 1037U DDR3 dc 12v motherboard , embedded motherboard ,1037u mini itx motherboard
Specifications:
CPU |
Integrated Intel ® 1037 u, 3217 u I3, 22 nm 1.8 GHz processor, compatible Intel ® 847, 1007
|
Chipset |
Using Intel ® NM70 High-speed Chipset
|
Memory |
1*SO DDR3 1333/1066MHz,Max to 8GB |
Power |
12v DC |
|
Storage
|
Up to 3*SATAⅡ hard disk interface, transmission speed can reach 3 GBPS
|
|
Network
|
1* RTL8111E gigabit network integration chip, support network awaken, PXE function
|
|
Sound
|
Integrated ALC662 6 channel high-fidelity audio controller, supporting the MIC and Line out
|
|
Display
|
Integrated Intel GMA3600 graphics (MB) Shared memory 128/224, support HDMI, VGA, an LVDS synchronous/asynchronous display, with an LVDS supports single channel 24 bit , at the same time also can support dual channel 24 bit (system), support separate display, double copy, double extension
|
|
Expansion Bus Interface
|
Provide a MPCIE slot, support WIFI, USB WIFI, 3Gmodule, a MSATA slot, support WIFI, USB WIFI, SSD solid-state drives (support Intel agreement SSD solid-state drives, transmission speed can reach 6 GBPS)
|
BIOS |
32MB SMT Flash ROM |
Size |
170mm * 170mm |
SATA |
l 1 * an LVDS interface, support for dual channel 24 bit lcd (double 8) 2 * 15 pin l 1*JHDMI interface 2*8Pin l 1 * JVGA1 interface, the same as the DB15 signal 2 * 5 pin l 2 *& 6 * RS232 serial port, COM2 support 422 485, 3 and 9 pin support functions of charged l (2 * COM option does not support 422, 485), can also support up to 10 RS232 serial port (custom) l 1 * TX - RXCOM RS422, 2 * 5 pin 485 interface l 1 * LPT port printing l 4 * USB 2.0 interface, Mini-PCIE if USB signal support two USB l 1 * 6 pin PS / 2 mouse and keyboard interface l 1 * FP1 function button and the indicator light on the front panel interface 2 * 5 pin l 1* AUDIO AUDIO interface on the front panel l 1*interface power amplifier 4pin l 1 * SIM gets stuck l 2 * PWROUT hard disk power supply interface l 1 * ATX_12V interface to do + 12 v input and output power l 1* LVDS INVERTER
|
|

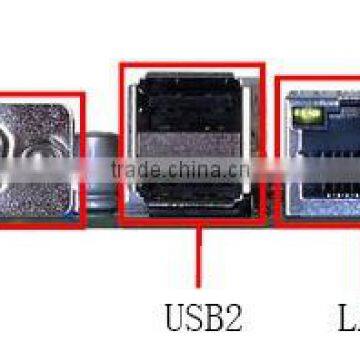

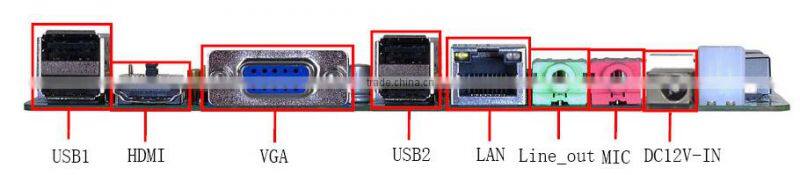

Backplane Interface
|
l 4 * USB 2.0 interface, including USB2 can support USB 3.0 (custom) l 1 * HDMI interface l 1 * VGA interface l 1 * RJ - 45 network interface 1 * the Line out (green) l 1 * Mic (red) l 1 * 12 v DC_JACK input
|
VWM- M100_I3 |
l Ultra-thin I3 3217 u processor, HD video card, DDR3 memory, 1 * gigabit nics, double eight l LVDS,1*MSATA,1*MINIPCIE,6*COM |
VWM- M100-I5 |
l Ultra-thin I5 3337 u processor, HD video card, DDR3 memory, 1 * gigabit nics, double eight l LVDS,1*MSATA,1*MINIPCIE,6*COMVWM-M100-I7 |
VWM-M100-I7 |
l Ultra-thin I7 3537 u processor, HD video card, DDR3 memory, 1 * gigabit nics, double eight l LVDS,1*MSATA,1*MINIPCIE,6*COM |
GUANGZHOU VINWO ELECTRONIC CO., LTD was established in 2008 , located in Tianhe area Guangzhou, our factory covers an area over 2300 square meters.
We specialized in produce,sales and provide good techniques support for Digital Signage Kiosk ,Mini - Itx industrail
Motherboard ,Pos system,SSD, Information Kiosk, LCD video wall, LCD Television, Electronic Whiteboard for Education, Multimedia exhibition planning and Film production planning.
Q:How many years warranty?
A:Generally speaking, we wil guarantee freely 3 years.
Q:What's your mode of transportation?
A: In general , we will make shippment by DHL, FedEx, EMS,etc,and also according to your request.
Q:What‘ your
