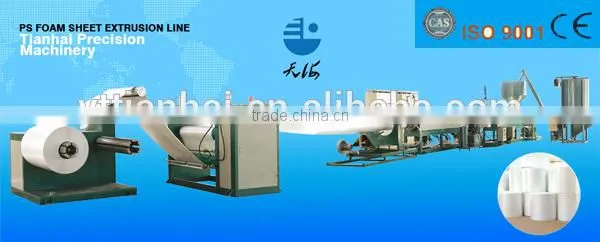

PS Foam Sheet Making Machine
Technics flow as below:
General Polystyrene Granule (GPPS) with additive are mixed in feeding sysytem, then go into
No.1 Extruder---Inject foaming agent--After filter changer, material go into N0.2 Extruder--Extruded from mold head --Cooling and Shaping--Hauling off--Winding --Finished Products—Packing.
Introduction:
1.It adopts Gentian type double-stage series high foam technology.

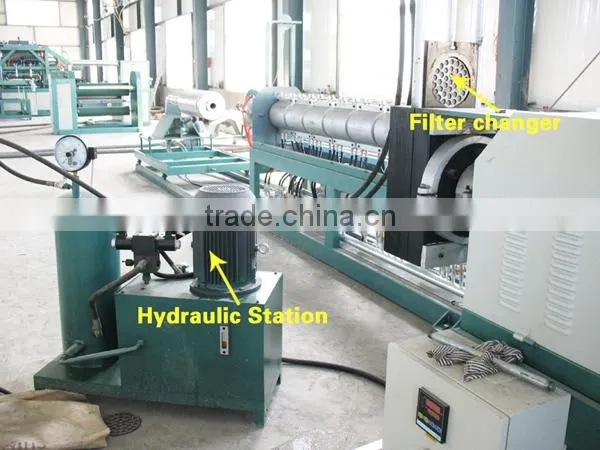

2.This equipment adopts high speed hydraulic filter changer, which has steady feature, can
change the filter immediately without stopping the machine.
3.The foaming shaping machine adopts PLC control, touch screen operation, easily to operate.
4.The raw material is general polystyrene granule (GPPS).
5.In the extruding process, foam agent (such as butane gas or LPG) is injected at high pressure.

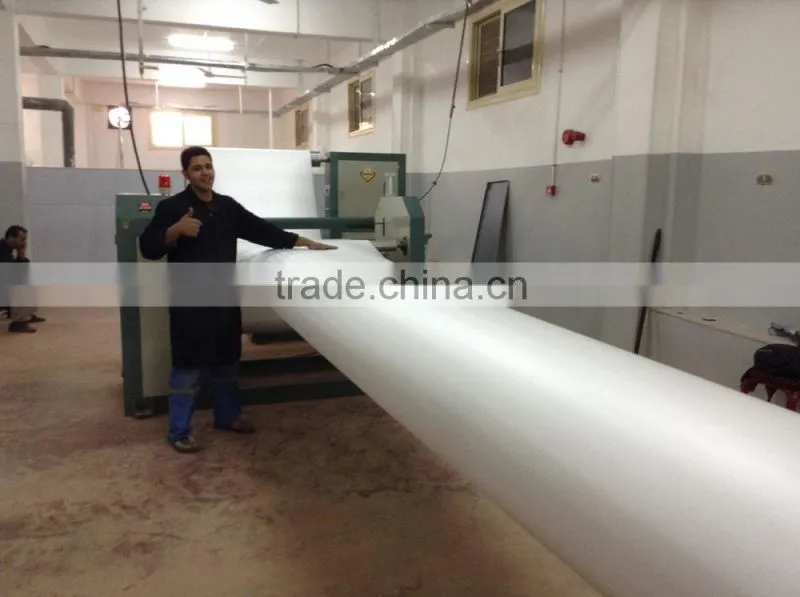

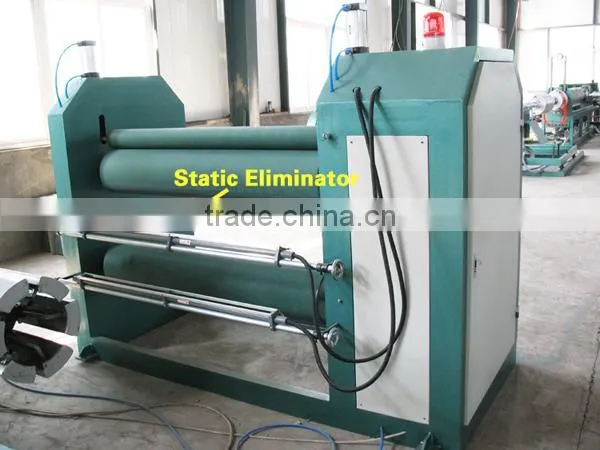

6.After extruding, foaming, cooling, shaping and
hauling off, it is winding to finished ps foam
sheet rolls.

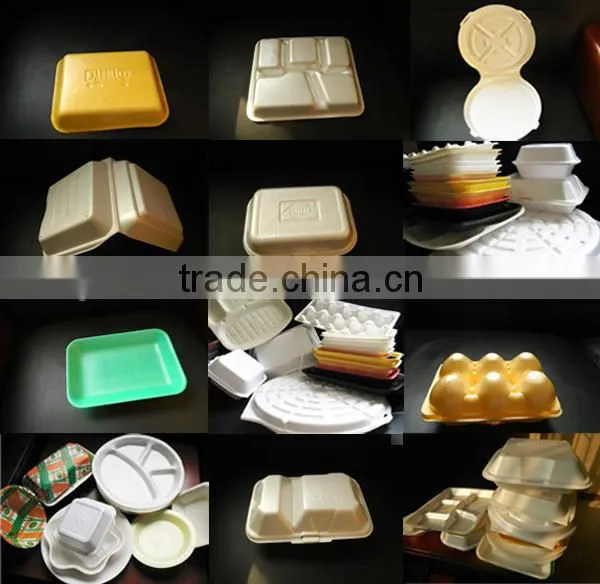

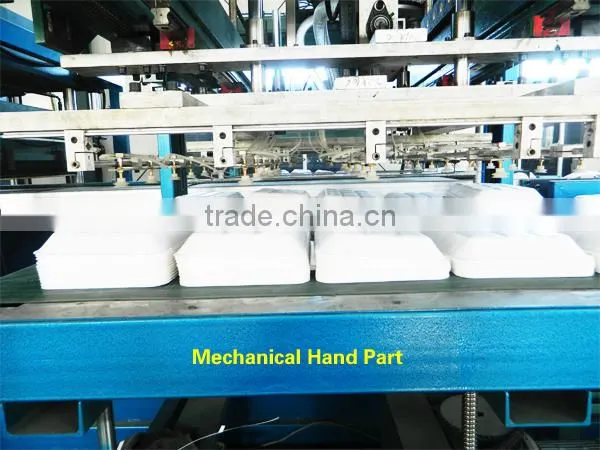

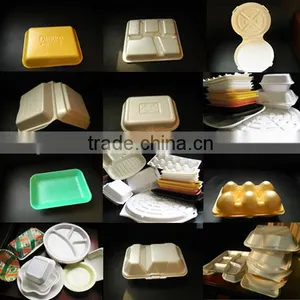

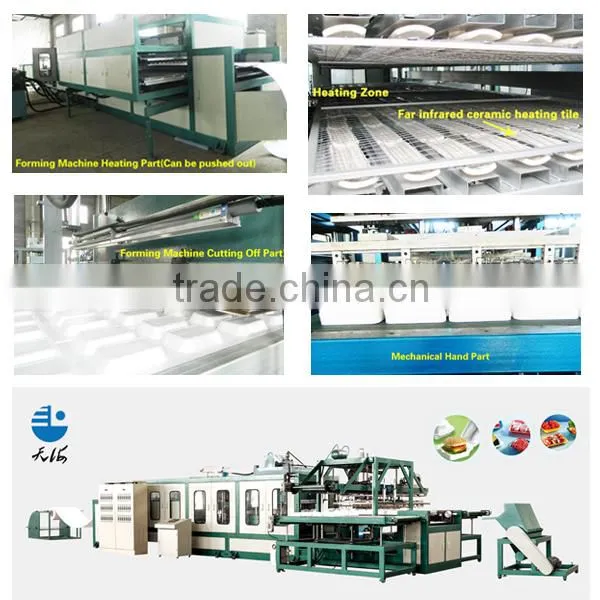

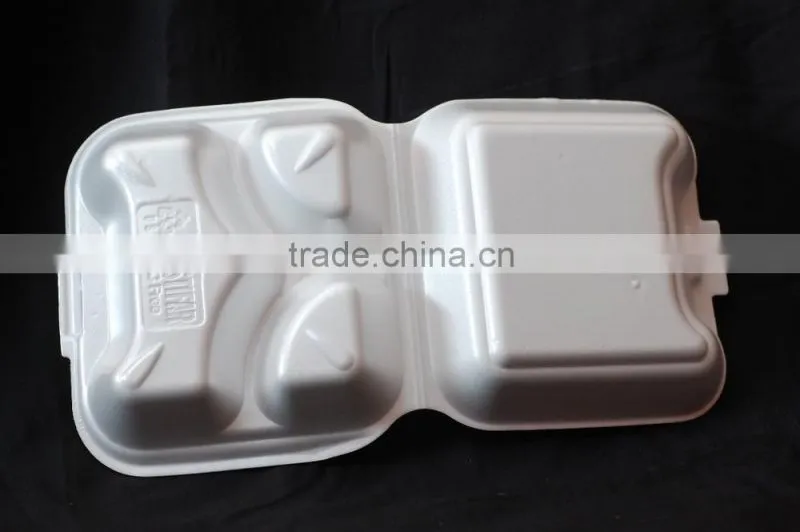

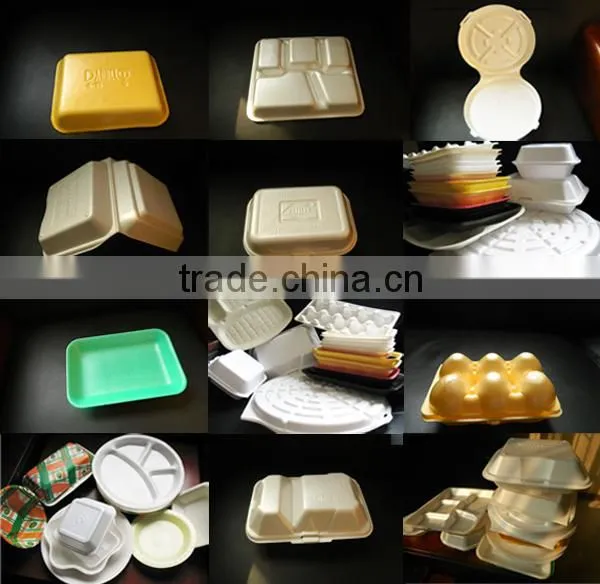

7.After vacuum forming system, the finished PS foaming sheet can be made into variety of packaging vessels ,such as fast food box ,aquatic plate,supermarket tray ,cake tray , KT board ,instant noodle bowl ,foam tray etc.
8.It is widely used in the packing for food, fruit, and advertising industrial products, etc.
Technical data:
|
parameter |
Unit |
Model |
|||
TH-70/90 |
TH-105/120 |
TH-110/130 |
TH-130/150 |
||
|
Capacity |
KG/H |
70-90 |
100-180 |
180-230 |
230-300 |
|
Sheet thickness |
MM |
0.8-4 |
1-4 |
1-5 |
1-5 |
|
Sheet width |
MM |
480-1080 |
600-1200 |
600-1200 |
600-1400 |
|
Foaming rate |
|
10-22 |
|||
|
Cooling method |
|
wind cooling & water cooling |
|||
|
Cutting method |
|
Single and double cutting |
Double cutting |
||
|
Butagas pressure |
MPa |
1.5 |
|||
|
Installed power |
KW |
120 |
200 |
220 |
320 |
|
Installation Dimension |
M |
22X4X3 |
25X4.5X3.2 |
28X5X3.5 |
32X5X3.5 |
|
Power supply |
380V 50HZ 220V 60HZ 3 phase 380V 50HZ 3 phase 220V 60HZ |
||||
