Polystyrene Foam Sheet Extrusion Machine1. Makes PS foam sheet
2. CE & ISO standard
3. Products for packing industry

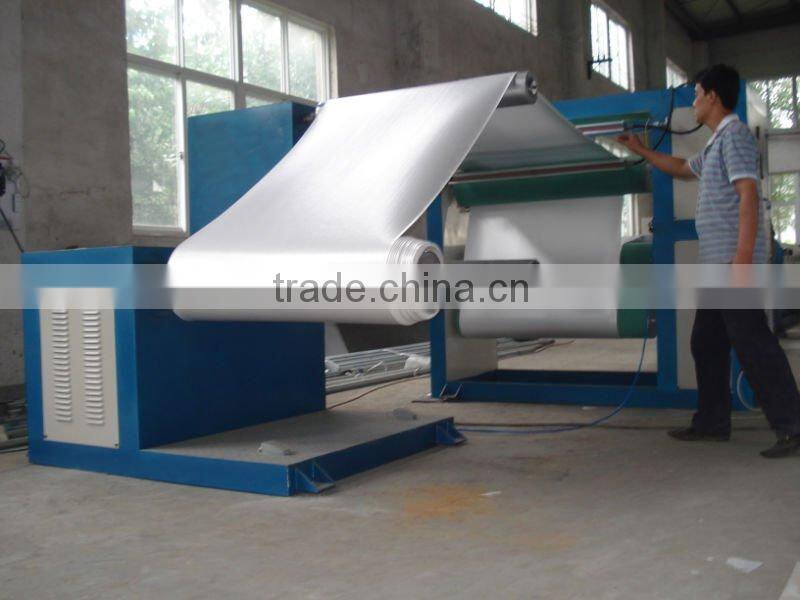

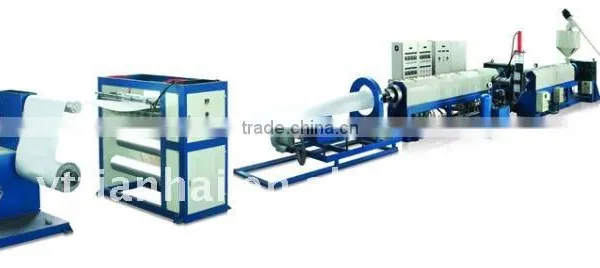

Polystyrene Foam Sheet Extrusion Machine
Technics flow as below:
General Polystyrene Granule (GPPS) with additive are mixed in feeding systerm, then go into No.1 Extruder---Inject foaming agent--After filter changer, material go into N0.2 Extruder--Extruded from mould head --Cooling and Shaping--Hauling off--Winding --Finished Products—Packing.
- It adopts Gentian type double-stage series high foam technology.
- The raw material is general polystyrene granule (GPPS).
- In the extruding process, foam agent (such as butane gas or LPG) is injected at high pressure.
- After extruding, foaming, cooling, shaping and hauling off, it is winding to finished ps foam sheet rolls.
- After vacuum forming system, the finished PS foaming sheet can be made into variety of packaging vessels ,such as fast food box ,aquatic plate, supermarket tray ,cake tray , KT board ,instant noodle bowl ,foam tray etc.
- It is widely used in the packing for food, fruit, and advertising industrial products ,etc.
- This equipment adopts high speed hydraulic filter changer, which has steady feature, can realize change the filter immediately without stopping the machine.
- The foaming shaping machine adopts PLC control, touch screen operation, easily to operate
- Technical data:
Parameter |
Unit |
Model |
||||||
TH-70/90 |
TH-105/120 |
TH-110/130 |
TH-130/150 |
|||||
Capacity |
KG/H |
70-90 |
100-180 |
180-230 |
230-300 |
|||
Sheet thickness |
MM |
0.8-4 |
1-4 |
1-5 |
1-5 |
|||
Sheet width |
MM |
480-1080 |
600-1200 |
600-1200 |
600-1400 |
|||
Foaming rate |
|
10-22 |
||||||
Cooling method |
|
Wind cooling & Water cooling |
||||||
Cutting method |
|
Single and double cutting Double cutting |
||||||
Butagas pressure |
MPa |
1.5 |
||||||
Installed power |
KW |
120 |
200 |
220 |
320 |
|||
Installation dimension |
M |
22x4x3 |
25x4.5x3.2 |
28x5x3.5 |
32x5x3.5 |
|||
Power supply |
380V 50HZ ( 3 Phase 380V 50HZ) 220V 60HZ (3 Phase 220V 60HZ) |
|||||||
