Home > Packaging & Printing > Packing Machinery > Gluing Machine > 3 Axis Automatic Glue Dispenser

3 Axis Automatic Glue Dispenser

Name: 3 Axis Automatic Glue Dispenser
Brand: Daheng
SKU: 132630857
Availability: InStock

3 Axis Automatic Glue Dispenser thumbnail-1

US$ 1 - 100 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, LED Bulb,motor,speaker

Packaging Type:

Cartons

Contact Supplier Request Quote Chat Now

Guangzhou Daheng Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, LED Bulb,motor,speaker

Packaging Type Cartons

Packaging Material Wood

Automatic Grade Semi-Automatic

Driven Type Pneumatic

Voltage AC220V or AC 380V

Power 300W

Place of Origin Guangdong, China

Brand Name Daheng

Model Number SZD-300

Dimension(L*W*H) L610 X W500 X H600mm

Weight 40kgs, 40kg

Certification CE, SGS

After-sales Service Provided Engineers available to service machinery overseas

3 axis automatic glue dispenser

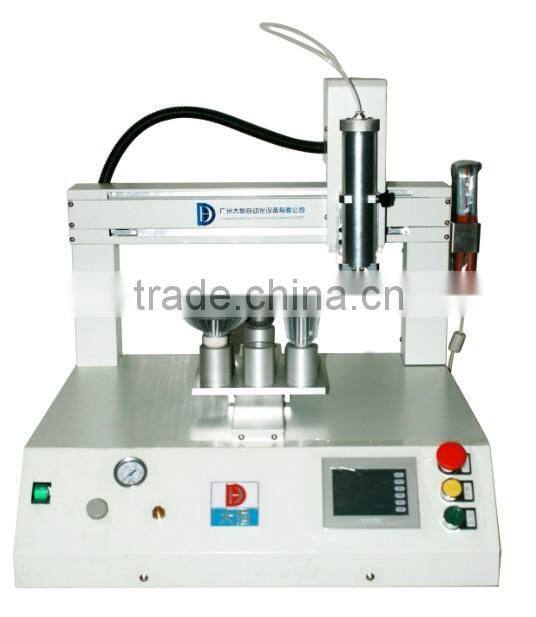

Desktop Three-Axis Glue Dispenser SZD-300

Main Technical Data:

Model & Type:	SZD-300 Desktop Gluing Dispenser
Certificate	CE, SGS
Dimension	L610 X W500 X H600mm
N.W.	40kg
XYZ Working Area	300x300x50mm
Flow Speed	0-66g/5s, or customized
Moving Speed	0-300mm per second
Glue & Ratio	1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability	+/-0.02g
Accuracy	+/- 1%
Power	AC220V or AC 380V

Features and Benefits:

1) Easy operation

Touch screen, English interface, store data, alarm system.

2) High accuracy of glue control:

All key parts imported, with unique control system, no affected by air pressure, avoiding uneven gluing, glue drawing, deckle edge, etc.

3)Quick program editing

In the gluing control system, we can store 99 programs according to different models of the products which have different dispensing track. It's very easy to select one of the programs when dispensing.

4) Simple adjustment for syringes:

Syringes can be adjusted in directions of up and down, left and right at a certain range, without change for the dispensing track.

5) Great generality, high speed:

1, 2, 4 needles dispensing head are available to improve the speed, widely used in various fluid, industry, and graphics (dot, line, curve, arc and round etc.)

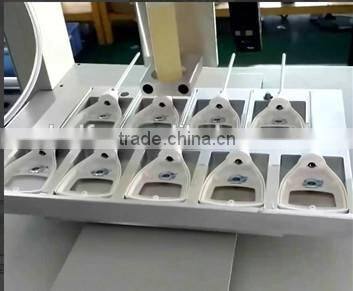

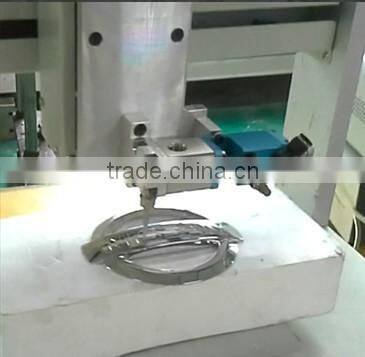

Products Pictures:

Application:
SMD, bulb lamp, COB binding, hand touch, TOP, dot matrix modules, circuit board, relay, cell phone and some other electric product with glue.

Certification:

Factory Tour

Parts of our Oversea Customers

WHO ARE WE & WHY CHOOSE US?

Guangzhou Daheng founded in 2006, is one of the leading manufactuers for gluing machines in China. We mainly provide fully automatic and semi automatic AB glue dispensing machine for various application.
We are headed in Guangzhou, have branches in Shenzhen, Shanghai, Beijing, Zhongshan, Xiamen; exported regularly to many coutries such as Thailand, Malaysia, Singapore, Turkey, Dubai, India, Netherland, Ukraine, Russia, etc. Based on years of customers experience, we built up very complete and helpful sales service.
