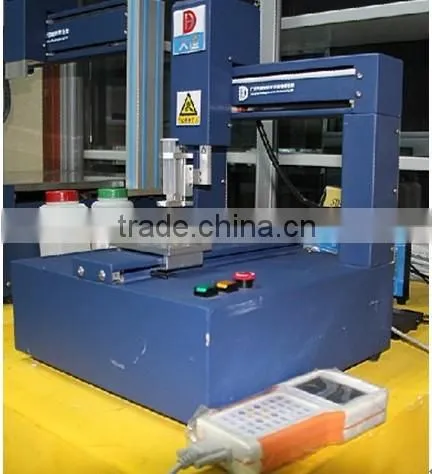

High Speed Desktop Gluing Dispenser (SZD-200)
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Desktop Gluing Dispenser (SZD-300)US$ 1 - 2MOQ: 1 Set -
High Speed Desktop Gluing Sealing Machine (SZD-400)US$ 1 - 2MOQ: 1 Set
-
High Speed PCB Gluing DispenserUS$ 1 - 2MOQ: 1 Set
-
Glue Sealing Machine for LED Bulb Qpd-300US$ 1 - 2MOQ: 1 Set
-
LED Bulb Lamp Gluing Machine Dispenser (QPD-300)US$ 1 - 2MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Packaging Type
Cartons
Packaging Material
Wood
Automatic Grade
Semi-Automatic
Driven Type
Pneumatic
Voltage
AC220V or AC 380V
Place of Origin
Guangdong, China
Brand Name
daheng
Model Number
SZD-200
Dimension(L*W*H)
200*200*50mm
Weight
40kgs
Certification
CE, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Easy operationTouch screen, English interface, store data, alarm system.
High accuracy of glue control
Desktop Gluing Dispenser (SZY-200)
1. Features
1) Easy operation
Touch screen, English interface, store data, alarm system.
2) High accuracy of glue control:
All key parts imported, with unique control system, no affected by air pressure, avoiding uneven gluing, glue drawing, deckle edge, etc.
3)Quick program editing
In the gluing control system, we can store 99 programs according to different models of the products which have different dispensing track. It's very easy to select one of the programs when dispensing.
4) Simple adjustment for syringes:
Syringes can be adjusted in directions of up and down, left and right at a certain range, without change for the dispensing track.
5) Great generality, high speed:
1, 2, 4 needles dispensing head are available to improve the speed, widely used in various fluid, industry, and graphics (dot, line, curve, arc and round etc.)
2. Industrial Application
SMD, bulb lamp, COB binding, hand touch, TOP, dot matrix modules, circuit board, relay, cell phone and some other electric product with glue.
| Model & Type:SZD-200 Desktop Gluing Dispenser | |
| Certificate | CE, SGS |
| Dimension | L610 X W500 X H600mm |
| N.W. | 40kg |
| XYZ Working Area | 200x200x50mm |
| Flow Speed | 0-66g/5s, or customized |
| Moving Speed | 0-300mm per second |
| Glue & Ratio | 1:1 to 20:1, Epoxy, Silicone, PU, UV |
| Repeatability | +/-0.02g |
| Accuracy | +/- 1% |
| Power | AC220V or AC 380V |
