Luxury Infrared Heating Car Paint Baking Oven
US$ 7,800 - 9,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Power:
38.5kw
External Size:
7000*5500*3300mm
Internal Size:
6900*3900*2650mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Diesel Heating Spray Booth PriceUS$ 7,800 - 9,800MOQ: 1 Set -
QX1000A CE Approved Vehicle Body Paint Room For SaleUS$ 6,800 - 7,800MOQ: 1 Set
-
CE Approved Good Quality Diesel Burner Heating Car Paint Spray Booth For SaleUS$ 7,800 - 9,800MOQ: 1 Set
-
QX500A CE Approved Economical Type Good Air Ventilation Dry Paint OvenUS$ 5,500 - 6,500MOQ: 1 Set
-
QX3000 CE Approved Good Quality Truck Paint Baking OvenUS$ 20,000 - 28,000MOQ: 1 Set
Power
38.5kw
External Size
7000*5500*3300mm
Internal Size
6900*3900*2650mm
Voltage
380V
Certification
CE
No Load Speed
0.25m/s
Place of Origin
Guangdong, China
Brand Name
Qiangxin
Model Number
QX2000AB

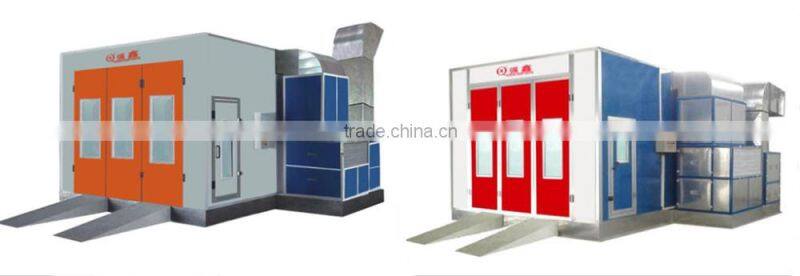

luxury infrared heating car paint baking oven
Product Description
Features
1. With 2 sets centrifugal air intake blowers and 1 set exhasut blower,increasing the air flow speed.
2. Heating system with 10groups luxury heating lamps for heating,fast baking and long working life.
3. Lighting with 24 pcs LED lamps,with good energy saving effect and lighting effect,anti-explosion.
4. Environmental system with 3 layers activated carbon filter which can meet high environmental protection system.
Parameter For QX2000AB infared heating car paint baking oven
| Diemension | Internal Size:6900*3900*2650mm | External Size:7000*5500*3300mm |
| Doors | Entrance door :Aluminum alloy binding framework (thickness 1.8mm),1 set folding door :3000*2600mm(W*H) | |
| Access door :1 set hung side door:700*1700mm(W*H) | ||
| Wallboard | 50mm EPS (epispastics polystyrene ) insulation material with 0.426 two side steel panel | |

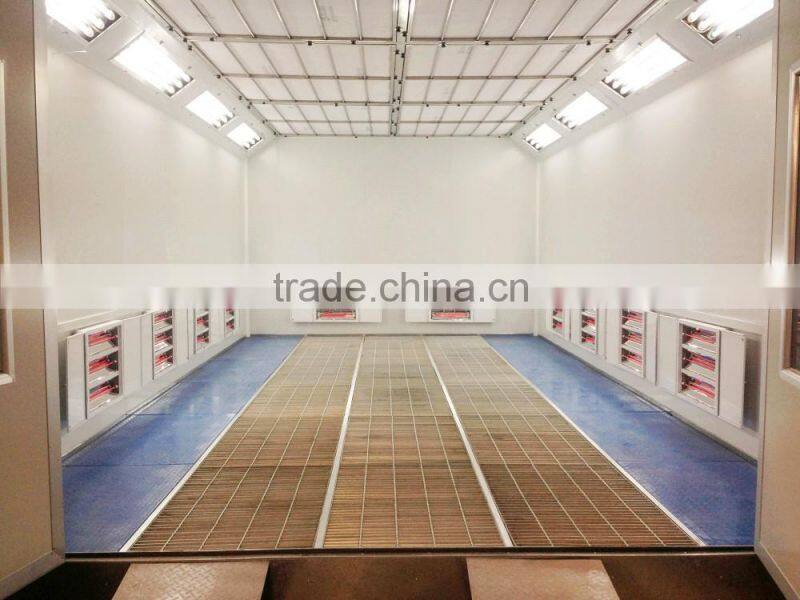

| Lighting system | Upper oblique 45°,8 group *3 pcs =24pcs ,16w led energy saving lamps | |
| Cabinnet Setting | Intake air from upside ,downside exhaust wind ,frame made tube 50*50mm ,0.8mm galvanized plate for body plate | |

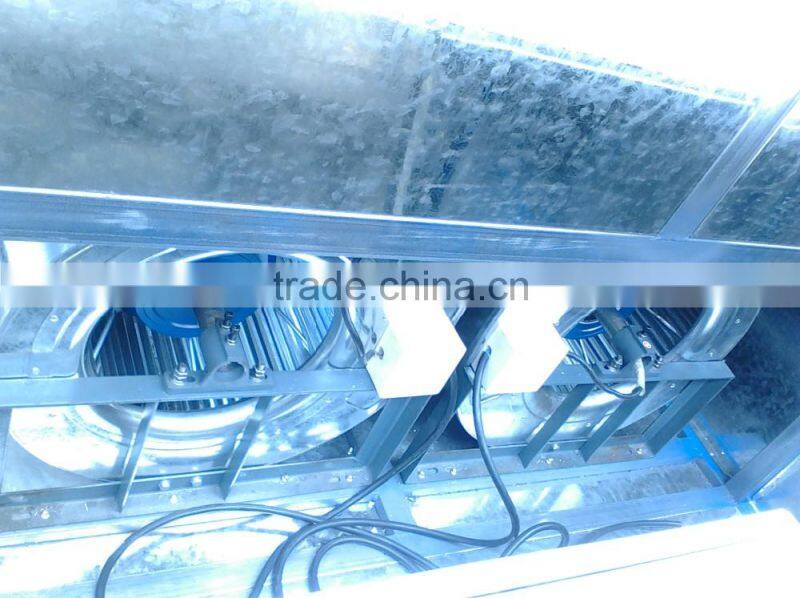

| Ventilation system | 2 pcs double inlet Siemens technology dedicated fans :single parameter :YOW5.6m.4kw .12500m³/h | |
| 1 pcs exaust centrifugal fans .Single parameter :TAE-710H,5.5kw ,18000m³/h | ||
| Heating system | 30 pcs infrared carbon fiber lamps ,800W per piece ,6 piece one group .The operating temperature 50°-75°.Max temperature 80° | |
| Filtration system | Air inlet with prefilter ,ceilling equiped with high effciency filter ,can effectively filter the 5PM dust articles .With three layers of carbon filter ,plus an environmental protection cabinet | |
| Roof | Galvanized steel panel | |
| Basement | Galvanized grille and channel steel is convex ,column is made of channel steel , dimond plate using high performance anti-rust treatment .2 ramps :2000*630mm(L*W) | |

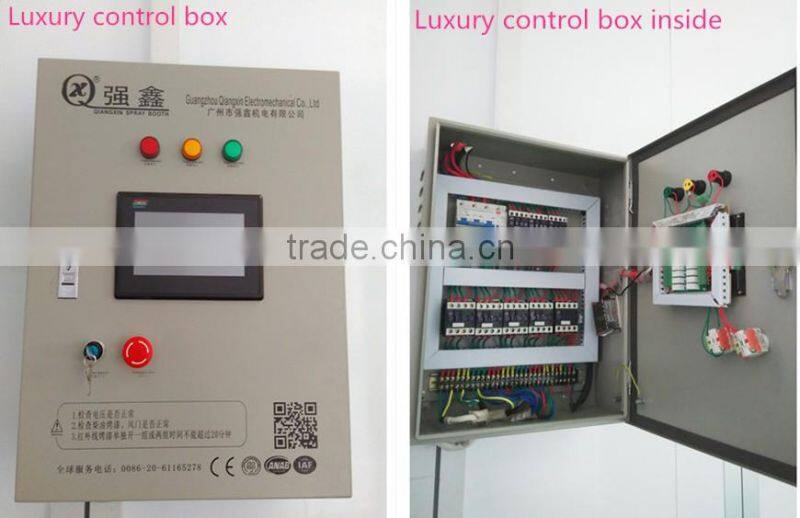

| Control system | Painting ,baking ,temperature controller , breakdown indicator , power switch ,emergency stop switch and time setting | |
| Voltage frequency | 380V 50HZ | |
| Light intensity | More than or equal to 1000luxes | |
| Air flow speed | More than or equal to 0.25m/s | |
| Total power | 38.5KW | |

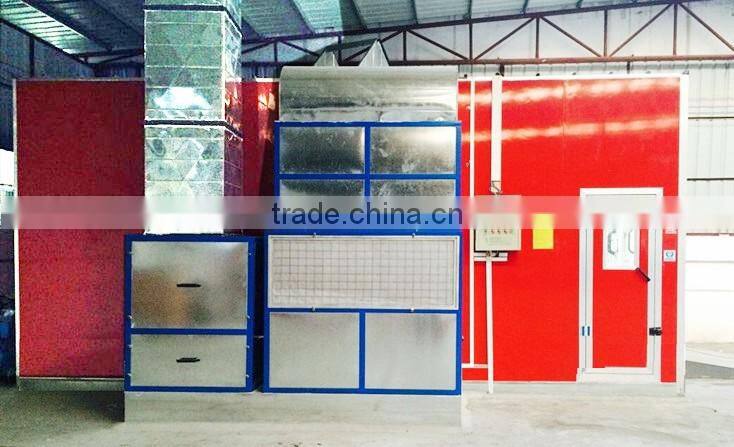

QX2000AB electric heating car paint baking oven project
Durable Accessories
Factory Information
Professional factory
Packaging & Shipping
Packing and shipping
Our Services
Service
*Customize service and design service
*Trade assurance(100% protection for product quality and on-time shipment)
*One year guarantee for spray booth
*Installation teaching service
*Longlife after-sale service
