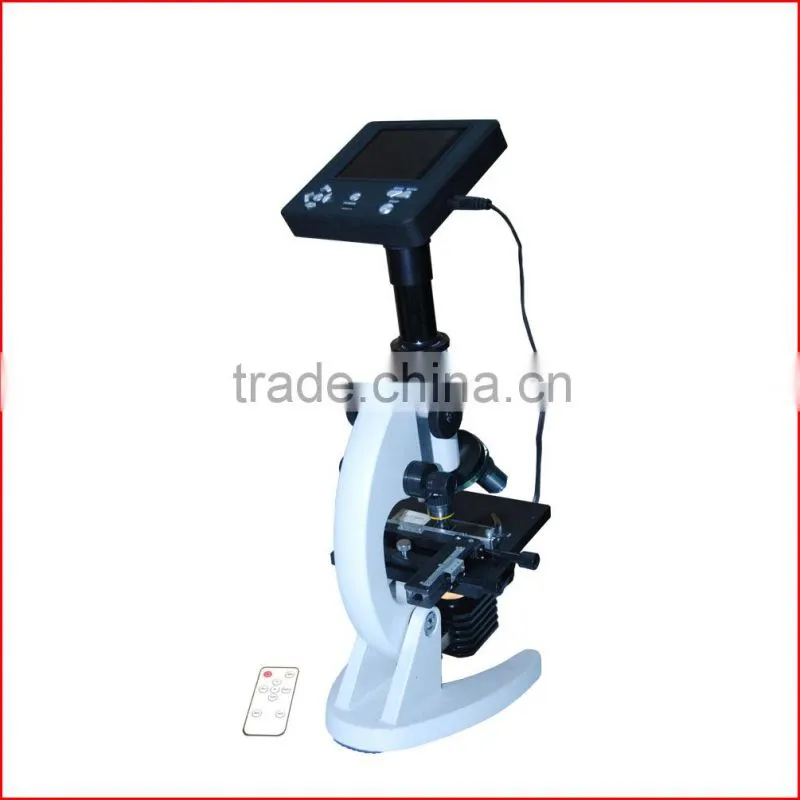

Help CenterMultifunction MDC2000-44R Wireless Remote Control Digital Microscope With Lcd Screen
Related Products
-
Student Digital Microscope Equipped With Calibrating Micro Ruler for Measurement Function MDA1300RUS$ 1 - 199MOQ: 50 Pieces -
2.0MP MDC2000-M Digital Portable Metallurgical Microscope Equipped With 3.6 Inch Lcd Screen and Coaxial IlluminationNegotiableMOQ: 20 Sets
-
3.0MP High Resolution MVV3000DM Digital Metallurgical MicroscopeNegotiableMOQ: 20 Sets
-
M100-R LCD Wireless Control Portale LCD Digital Stereo MicroscopeNegotiableMOQ: 20 Sets
-
1.3Megapixels Wireless Wifi and USB Portable Digital Microscope Working With Mobile Terminal of IPhone IPad Android and PCNegotiableMOQ: 50 Pieces
♦Features:
1. Imaging module: 2.0MP CMOS imaging and processing module:

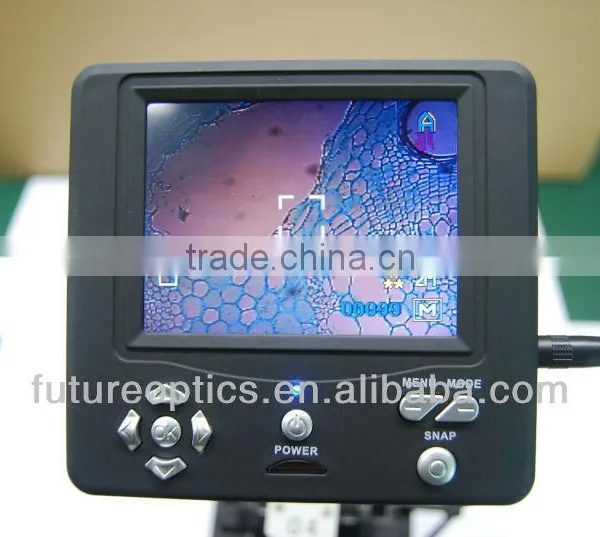

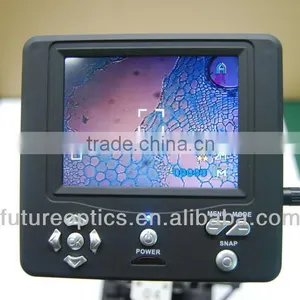

2. Multiple output model:3.6”TFT LCD USB port, video port and 2GB SD card included
3. Imaging software of Future Win Joe for USB model included on CD
4. Opticalmicroimaging module: 4X,10X,40X,100X lens,bottom illumination, movable specimen holder, condenser and diaphragm;
5. Built-in wireless remote control receiver and hand remote controller.
♦Applications:
Easy and comfortable viewing images of cell specimen on screen without a PC and to share with others, and easy to snapshot or to record videos.
♦Function:
1. View images or video on LCD screen without connecting a PC;
2. Capture and save images or video in SD card;
3. Camera control menu allows you to adjust the gain, resolution, WB, contrast;
4. USB camera model to act as a PC microscope camera under the control f Future Win Joe.
5. Video output model to show video on TV or monitor.
♦Benefits:
1. Working without connecting a PC;
2. Built-in relay lens located between objective and sensor to widen field and to have image sharp and bright;
3. All the menu operation with keyboard can be replaced by remote controller.
♦Quality control:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code:2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦OEM/ ODM:
Available for both hardware and software to be designed and made on clients' specification.
Including:
Logo package printing;
Optical system design;
PCB imaging module design;
Shell design ;
Software amendment.
Main specifications:
Digital eyepiece |
2.0 MP USB compact digital camera |
Active resolution of sensor |
1600*1200 |
Sensitivity |
1.0V/lux-sec |
Dynamic rage |
60 dB |
Frame rate |
10fps@1600*1200 |
|
Total magnification (optical eyepiece loaded ) |
50X ~ 1250X, |
Picture resolution |
12.0MP/8.0MP/5.0MP/3.0MP/2.0MP/1.3MP/0.35MP |
Video resolution |
640*480 |
Optical eyepiece |
5X, 10X, 12.5X |
Viewing head |
Monocular vertical tube |
Nosepiece |
Triple nosepiece with positive click stopper |
Objective lens |
10X, 40X, 100Xs(oil) |
Working stage |
Stage 120mmX120mm with movable specimen holder, controlled by X-Y adjustment knobs. |
Condenser |
NA1.25 abbe condenser, iris disc diaphragm, filter |
Illumination |
Electrical illumination (110V/20W,220V/ 20W optional) |
Coarse adjustment range |
50mm |
Fine adjustment range |
1.8mm~2.2mm |
CD of software |
Future Win Joe imaging software |
Optical eyepiece |
5X, 10X, 12.5X |
Packing |
Carton size: 53cm X 22cm X 38.5cm |
