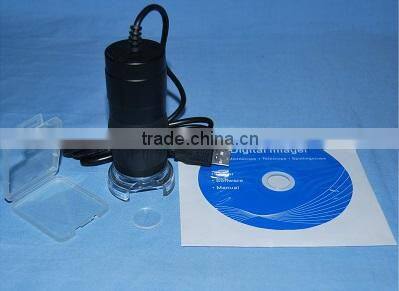

Patent MDA2000R Digital Portable Zoom Measuring Microscope Equipped With Reticle Software and LED Ring Light

1. Digital imaging module:2.0MP high performance CMOS imaging module;

2. Imaging software: Future Win Joe image & movie capturing and processing program with movable reticle

3. Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;

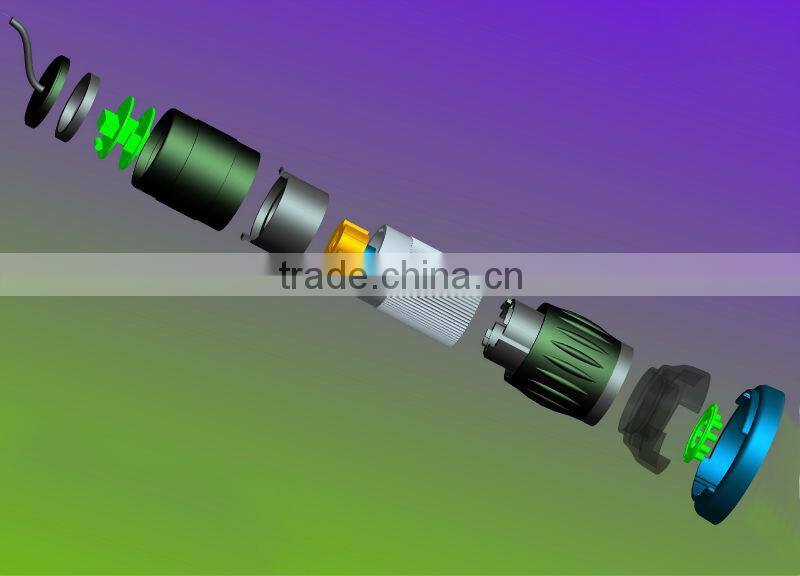

4. Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus;

5. Uniform illumination part: Falling–in ring- lighting panel with 8 LED lamp;

6. Calibration ruler: 0.1mm/10mm calibrating slide.

♦Applications:

The combination of high performance digital imaging module with innovating optics & mechanism design and powerful software provides a large breakthrough in digital microscope design. It has widely applications in industry, education, science, medicine and daily life to view, acting as a powerful digital gadget with measurement to check and to record detailed message of the micro world.

♦Function:

1. Zoom function: low magnification for wider field searching and high magnification for detailed message checking;

2. Capability of capturing image in high resolution:

    Display resolution:1600*1200

    Picture resolution: 1600*1200

    Video recording resolution: 1600*1200

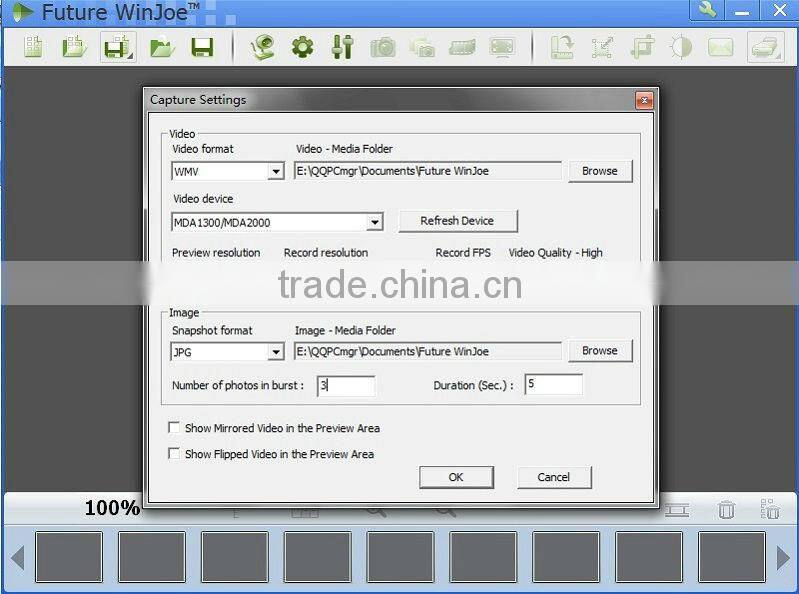

3. Capture settings: Software allows you to adjust the gain, resolution, WB, contras, exposure time, converting image direction;

4. Image amendment: RGB color and gray scale.

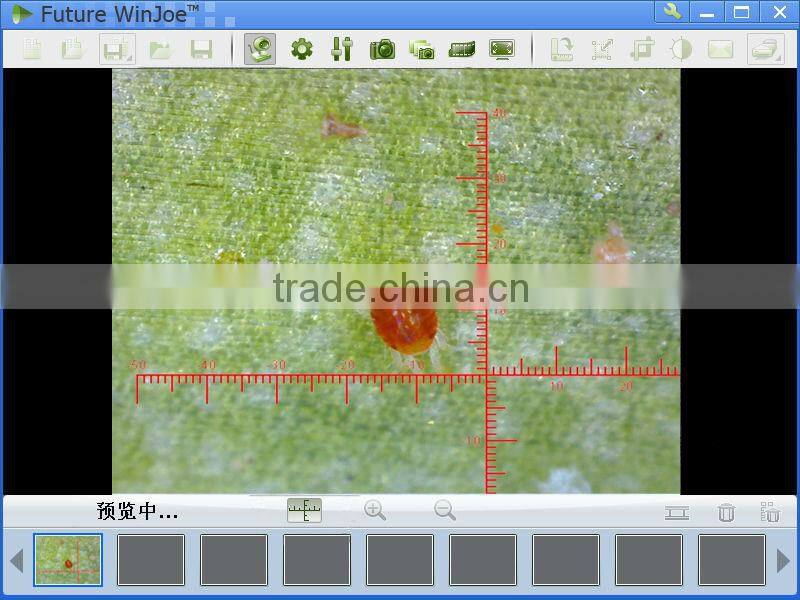

5. Make measurement and compare with the movable software reticle calibrated.

♦Benefits:

1. Very wide dynamic range to enrich grey scale of image;

2. Well express true colors of RGB;

3. Low noise electronics, no any hot pixel inside picture;

4. Easy zooming and fine focusing with one hand or two hands;

5. Standing without support;

6. Compatibility: WIN8 / MAC /Linux;

7. Easy to make measurement without movement of the target.

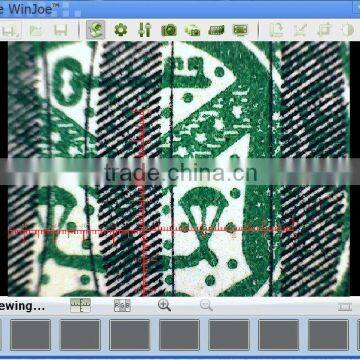

♦Caputer images:

♦Certification:

CE issued by SGS laboratory Verification No. SHEMO0808001971T01C

FC issued by SGS laboratory Verification No.SHEMO081100389IT01C

ROHS issued by POCE laboratory, Verification No.POCE13072325TCR

Copyright software of Future Win Joe V1.0  Registration Code: 2009SR035346

ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M

♦OEM/ ODM:

Available for both hardware and software to be designed and made on clients' specification.

Including:

Logo package printing;

Optical system design;

PCB imaging module design;

Shell design;

Software amendment.

♦Detail Specifications:
