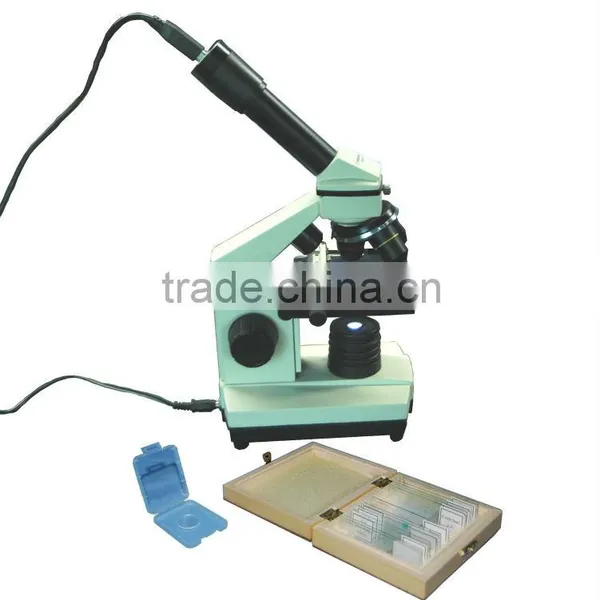

Help CenterCompact MDA1300-M410 USB Digital Microscope With Dual Functions of Biological Microscope and Stereomicroscope
Related Products
-
2.0 MP Portable Digital Microscope With Lcd ScreenNegotiableMOQ: 20 Sets -
Digital Trinocular Stereo Microscope With LCD CameraNegotiableMOQ: 5 Sets
-
2.0MP LCD Digital & Video 0.7X--4.5X Zoom Monocular Stereo MicroscopesNegotiableMOQ: 5 Cases
-
0.35MP Compact USB Digital Biological Microscope for Student UseNegotiableMOQ: 1 Case
-
5.0MP Digital Trinocular Microscope Euipped With Microscope CameraNegotiableMOQ: 20 Pieces
- MDA1300-M410 USB digital microscope incorporates analogue and digital image technology to reveal microcosms.
- Objective lenses mounted with a high magnification digital eyepiece creates a great digital gadget with dual functions of biological microscope and stereomicroscope.
- To view microorganism slides and to view rock specimens with the same device.
- Wide application in life science, industry, education and the amateur.

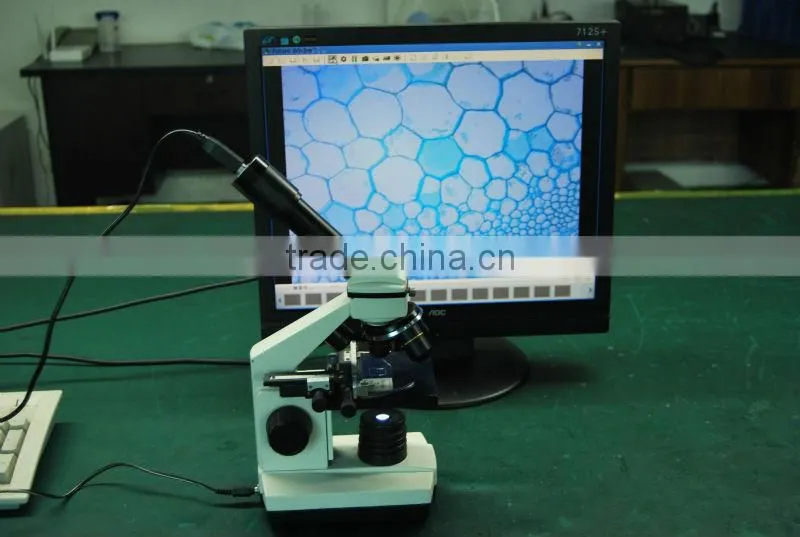

Transmitted lighting: ---plant slide picture
High magnification and bottom illumination to examine transparent specimen slides of plant, bacteria and more.

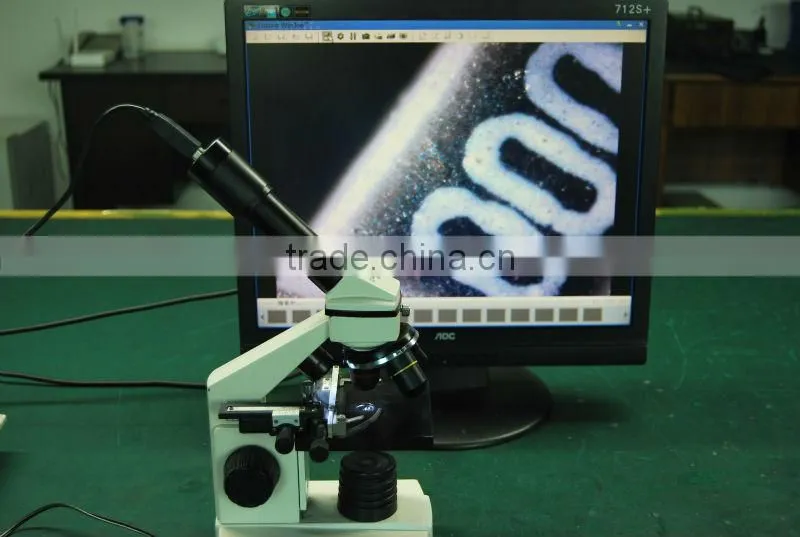

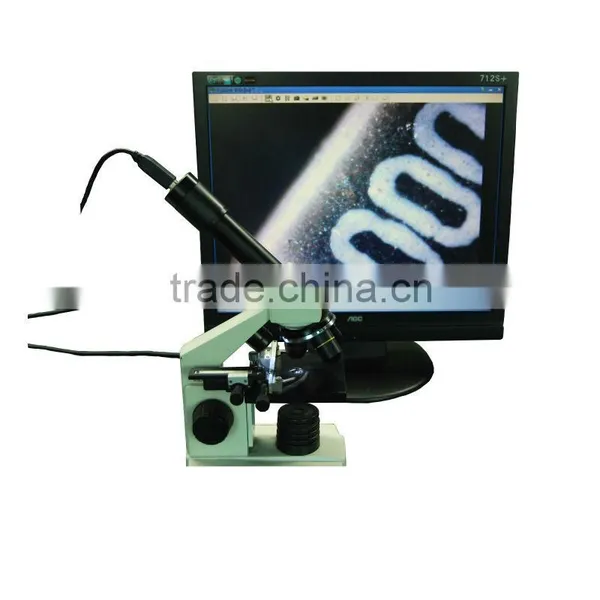

Reflective lighting:----picture of printing code on a resistor
Low magnifications and top illumination to examine opaque objects like coins, rocks, insects and more.
♦Powerful function:
1. R, G, B amendment function: to express true color for view.
2. Image direction converter function: to display nature indication of specimen.
3. High resolution movie recording function: No interpolation.
4. Movable reticle function: to act as a rule and pointer
♦Specifications:
Dimensions |
685 mm (l)x 385 mm (w)x 290 mm (h) |
Weight |
1520g |
Objective Nosepiece |
Triple with click stop |
Illumination |
Top and bottom lighting bulb |
Working Stage |
X-Y movable plain stage with specimen holder |
Condenser |
NA0.65 condenser, disc diaphragm |
Objective Lens Magnification |
4x, 10x, 40x |
Optics Eyepiece Magnification |
WF 10 X |
Total Optics Magnification |
40X, 100X, 400X |
Digital Eyepiece Magnification |
96X (17” screen, 1280*1024 resolution setting) |
Total Optics & digital Magnification |
384X, 960X, 3840X |
Active Resolution |
1280*1024 |
Preview image resolution |
1280*1024 |
Picture resolution |
1280*1024 |
Video resolution |
1280*1024 |
Compatibility |
Window XP, Vista, 7, 8. |
Digital Eyepiece Sensor Parameter |
1/4” 1.3MP Color CMOS |
Sensitivity |
1.0V / lux-sec |
Dynamic Range |
71.0 dB |
S/N Ratio |
44.0 dB |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
16fps@1280*1024 |
Proview Model |
1280*1024; 640*480; 320*240 |
Exposure |
ERS or Manual |
White Balance |
ERS or Manual |
Trade terms
Payment:
100% prepaid for first order
For quantity order: T/T to our company account
For sample order or trial order: T/T to our company account, Western Union, Escrow
Delivery time and shipping:
Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.
Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s confirmation.
OEM orders need an extra customization time. Generally customization will take 10 days.
Warranty:
We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.
Customization:
We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making .--------------more information
Free sample for clients to place repeat orders:
We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.
Pre-sales service
As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.
1. Provide basic knowledge to help our clients understand working principle of our products;
2. Provide key factors and skill to our clients when they choose our products;
3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;
4. Provide product design drawing and package drawing to help clients work out customization pattern.
