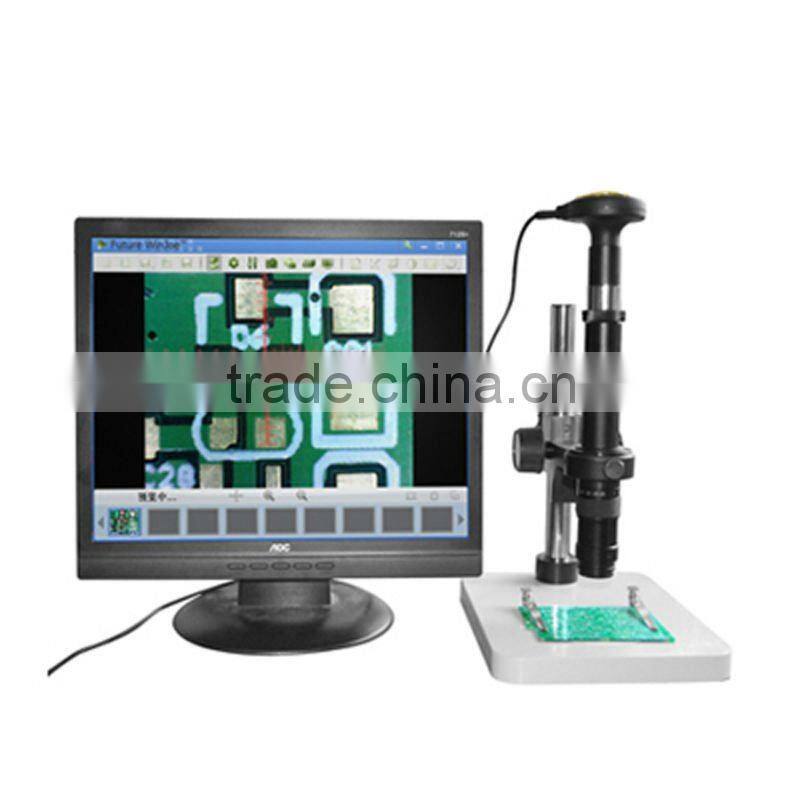

A new digital microscope made by yourself when inserting digital eyepiece into eyepiece tube to replace the ocular eyepiece of microscope.
All features and specifications of microscope remain, and digital modules can keep updating easy. In compare with the built in digital microscope, this compounding microscope can do all the things covering analog mode and digital mode.

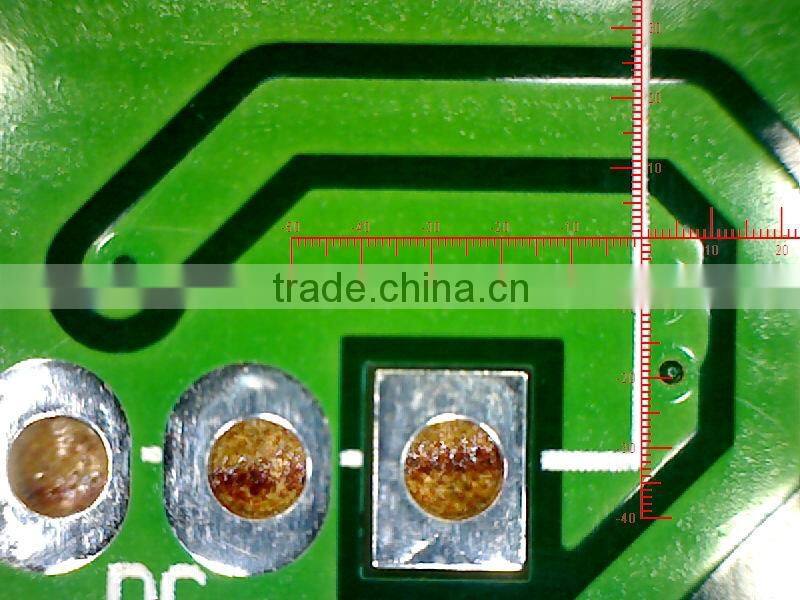

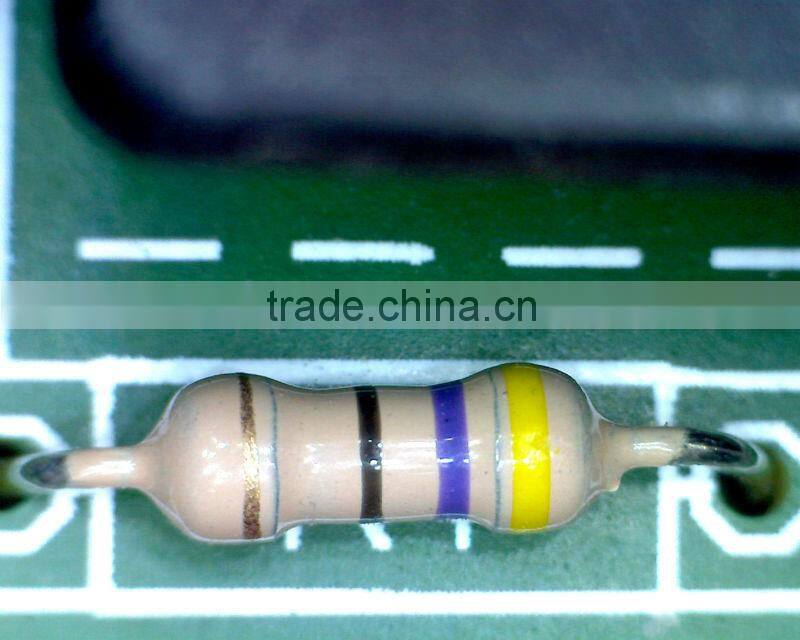

PCB borad Resistance
Specifications:

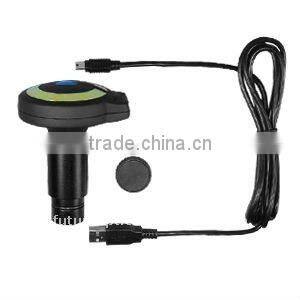

Digital eyepiece | 3.0 MP USB digital camera equipped with built-in relay lens |
Active resolution of sensor | 2048*1536 |
Sensitivity | 1.4V/ lux-sec |
Dynamic rage | 70.1 dB |
Frame rate | 15fps@2048*1536 |
Equivalent magnification of digital eyepiece | 30X (17” LCD screen display pixel size: 0.2625mm ) |
Total magnification (digital eyepiece loaded ) | 21X ~135X |
Magnification of built-in relay lens of digital eyepiece | 0.258X |
Zoom lens body | Parallel optical path rotated 360° |
Zoom objective | 0.7X ~ 4.5X |
Extra objective | 1X |
Working distance | 198.0mm |
Viewing field | 35.0mm –5.0mm |
Micro ruler | 0.1mm / 10 mm |
Illumination | Reflected LED illumination with adjustable brightness |
Working stage (base) | Pillar base 285mm X 238mm |
Focusing adjustment range | 49mm ( pillar vertical size 240mm) |
CD of software | Future Win Joe imaging software with movable reticle |
Packing | Carton size:25.5cm X 40.1cm X 41.5cm |
