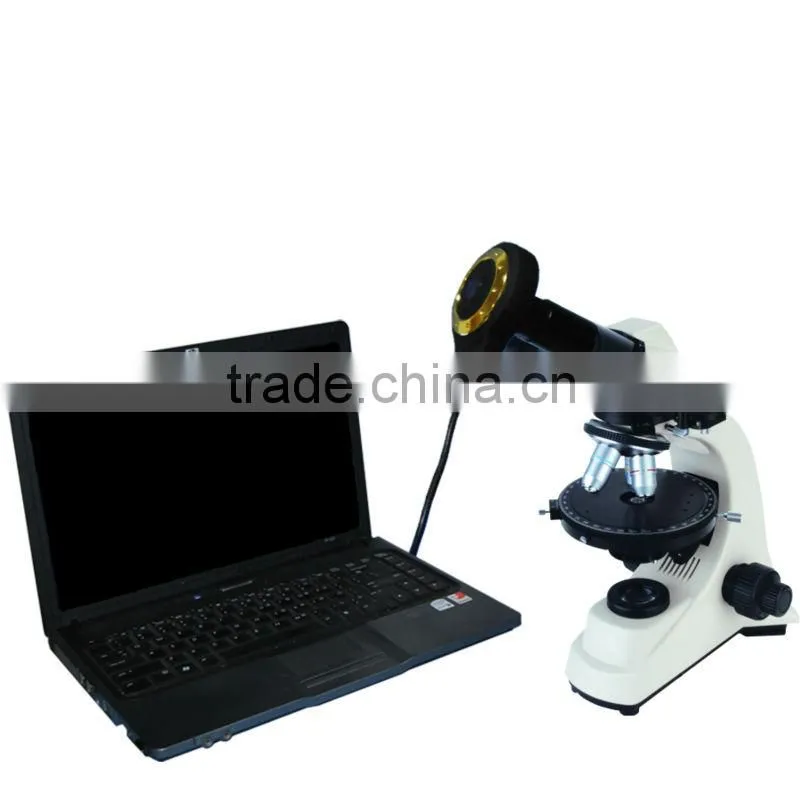

Help Center5.0MP HD High Sensitivity DBMVV3000-500P Digital Polarizing Microscope
Related Products
-
DBMEM1300-500P 1.3MP Digital Polarizing MicroscopeNegotiableMOQ: 10 Sets -
0.35 MP Video Trinocular Stereo MicroscopeNegotiableMOQ: 1 Piece
-
1.3MP Digital Trinocular Microscope With Microscope CameraNegotiableMOQ: 5 Cases
-
2.0MP 3 in 1 LCD7045T Digital Stereo Microscope With Digital CameraNegotiableMOQ: 10 Pieces
-
3.0MP USB Digital Microscope With Microscope CameraNegotiableMOQ: 5 Cases
♦Applications:
A polarizing microscope uses polarized light to study anisotropic materials such as identifying crystals or fibers suspended in liquid, identifying minerals in core samples and detecting defects in semiconductors or finding stress points in metal, glass and other materials.
♦Functions:
1. To capture images for living show, for shoot and for video recording;
2. To improve image quality by adjusting the gain, resolution, WB, contras, exposure time, RGB color and Gamma setting;
3. To measure and to compare.
♦Benefits:
1. Easy installation, convenient operation;
2. Wide field and bright image;
3. Compatibility with Win/MAC;
4. High resolution image of 2048*1536 for preview, picture shoot and video recording;
5. High frame rate.
Certification:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code: 2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦Main specifications:
Digital eyepiece |
3.0 MP USB digital camera equipped with built-in relay lens |
Active resolution of sensor |
2048*1536 |
Sensitivity |
1.4V/ lux-sec |
Dynamic rage |
70.1 dB |
Frame rate |
15fps@2048*1536 |
Total magnification (optical eyepiece loaded ) |
40X, 200X, 400X, 600X |
Equivalent magnification of digital eyepiece |
28X (17” LCD screen display pixel size: 0.2625mm ) |
Total magnification (digital eyepiece loaded ) |
112X, 560X, 1120X, 1680X |
Optical eyepiece |
Plan eyepiece: 10X-18mm and 10X-20mm; 10X -18mm and 10X-20mm with reticle(0.1mm) |
Achromatic objective (DIN45mm) |
Infinite strain free achromatic objective:4X/0.1,10X/0.25,20X/0.4, 40X/0.65 (spring loaded tip), 60X/0.8(spring loaded tip) |
Condenser |
N.A> 1.25 Abbe condenser with Iris diaphragm and filter holder |
Analyzer |
Rotatable analyzer with lock device |
Bertrand lens |
Built-in center adjustable Bertrand lens |
Viewing head |
Binocular head 30 rotatable |
Nosepiece |
Quadruple nosepiece with positive click stopper |
Optical compensator |
λ lip , 1 /4 λ lip, Quartz wedge |
Revolving round stage |
Center adjustable and rotatable , diameter 156 mm with 1 division and 6’increments |
Polarizing device |
Rotatable polarizer with scale |
Illumination |
Adjustable halogen bulb 6V / 20W |
CD of software |

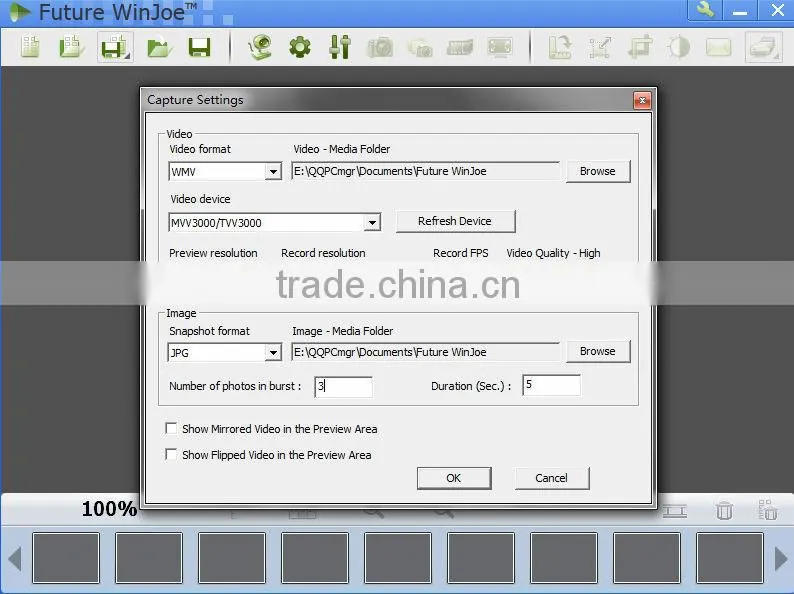

Future Win Joe imaging software with movable reticle |
Reticle slide |
Calibration micro ruler 10mm / 0.01mm |
Packing |
Carton size: 54.5cm X 39.5cm X 43.5cm |
Trade terms
Payment:
100% prepaid for first order
For quantity order: T/T to our company account
For sample order or trial order: T/T to our company account, Western Union, Escrow
Delivery time and shipping:
Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.
Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s confirmation.
OEM orders need an extra customization time. Generally customization will take 10 days.
Warranty:
We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.
Customization:
We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making .--------------more information
Free sample for clients to place repeat orders:
We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.
Pre-sales service
As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.
1. Provide basic knowledge to help our clients understand working principle of our products;
2. Provide key factors and skill to our clients when they choose our products;
3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;
4. Provide product design drawing and package drawing to help clients work out customization pattern.
