Specifications

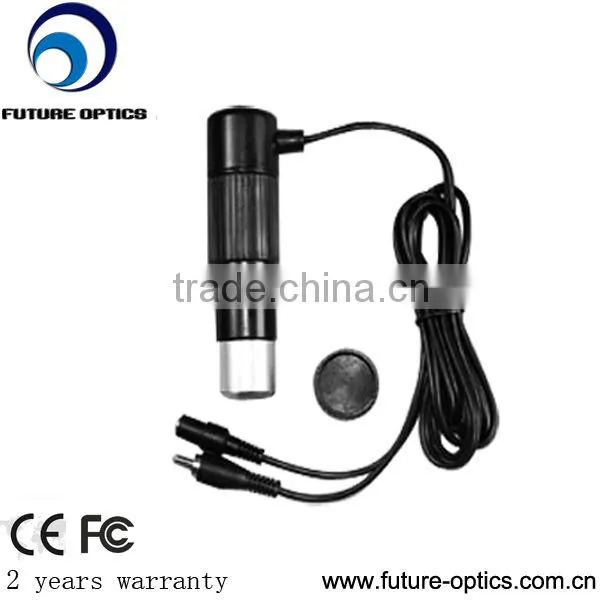

A microscope to equip with video eyepiece to capture images from microscope and to show on TV or monitor.0.35 MP Video Microscope, composed of1/3 inch color video CMOS sensor module, TV cable, power adapter and a zoom trinocular stereomicroscope, is applied to display images captured by microscope on TV set or monitor or projector for public view.
The built in lenses offers 10X optical magnification. Two kinds of TV system (P or N) are available to offer. In comparison with digital eyepiece,VT745-350 is more convenient in operation, because on software is needed to install.
Specifications:
Video eyepiece |
0.35 MP video camera |
Active resolution of sensor |
NTSC:720*480 / PAL:720*576 |
Frame rate |
NTSC:60fps@720*480 / PAL:50fps@720*576 |
Sensitivity |
11.5V/lux-sec |
Dynamic rage |
80 dB |
Optical eyepiece |
WF10X20mm |
Viewing head |
Trinocular hand, 45°inclined, 55-75mm interpupillary distance adjustment range |
Objective |
0.7X ~ 4.5X |
Total optical magnification |
7X ~ 45X |
Working distance |
100.0 mm |
Optical viewing field |
28.6mm (7X) |
Micro ruler |
0.1mm / 10 mm |
Illumination |
Reflected and transmitted LED illumination with adjustable brightness |
Working stage (base) |
Pillar LED base 285mm X 238mm |
Focusing adjustment range |
49mm ( pillar vertical size 240mm) |
CD of software |
Future Win Joe imaging software with movable reticle |
Packing |
Carton size: 37cm X 33cm X 38.5cm |
