230W Solar Panel for Pakistan Market With TUV
US$ 0.42 - 0.55
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OSDA/OEM
Model Number:
ODA230-30-P
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
OSDA/OEM
Model Number
ODA230-30-P
Specification
Normal
Application
Commercial
Output Voltage (V)
30V
Load Power (W)
230W
Solar Power (W)
230W
| Technical parameter(with tolerance 0 to +3%) | ||||||||
| Maximum Power(W) | 220Wp | 225Wp | 230Wp | 235Wp | 240Wp | 245Wp | ||
| Optimum Power Voltage(Vmp) | 29.88V | 29.94V | 29.94V | 30.6V | 30.6V | 30.72V | ||
| Optimum Operating Current(Imp) | 7.36A | 7.52A | 7.68A | 7.68A | 7.84A | 7.98A | ||
| Open Circuit Voltage(Voc) | 36.44V | 36.51V | 36.51V | 37.32V | 37.32V | 37.46V | ||
| Short Circuit Current(Isc) | 8.09A | 8.26A | 8.44A | 8.44A | 8.62A | 8.76A | ||
| Cell Efficiency (% ) | : 15.50% | 15.75% | 16.00% | :16.50% | 17.00% | 17.25% | ||
| Module Efficiency (%) | 13.44% | 13.74% | 14.10% | 14.40% | 14.70% | 15.10% | ||
| Mechanical Characteristics | ||||
| Cell Type | Polycrystalline 156x156mm (6inch) | |||
| No of Cell | 60(6x10) | |||
| Dimensions | 1640X992X45 | |||
| Weight | 19.3kgs | |||
| Front Glass | 3.2mm,High Transmission, Low Iron,Tempered Glass | |||
| Frame | Anodized Aluminium Alloy | |||

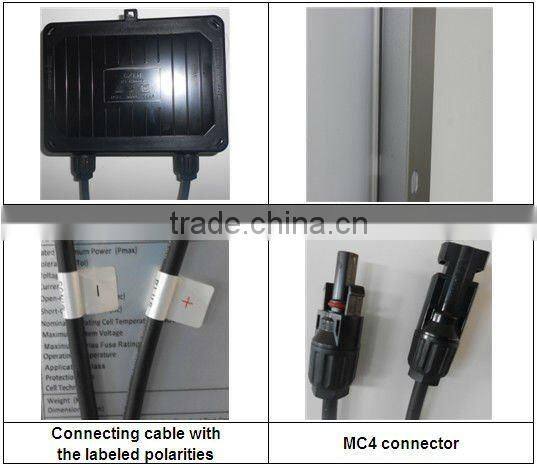

| Junction box | IP65 Rated | |||
| Output Cable | TUV 1x4.0mm2/UL12AWG,Length:900mm | |||
| Temperature and Coefficients | ||||||||||||
| Operating Temperature(°C): -40°C ~ + 85°C | ||||||||||||
| Maximum System Voltage: 600V(UL)/1000V(IEC) DC | ||||||||||||
| Maximum Rated Current Series: 15A | ||||||||||||
| Temperature Coefficients of Pmax: -0.47% | ||||||||||||
| Temperature Coefficients of Voc: -0.389% | ||||||||||||
| Temperature Coefficients of Isc: 0.057% | ||||||||||||
| Nominal Operationg Cell Temperature (NOCT): 47+/-2°C |
