Help Center145w Solar Panel
Related Products
Specifications
*IEC61215, IEC61730, MCS CEC certified*TUV, CE conformity
*ISO 9001:2008(Quality Management System) certified factory

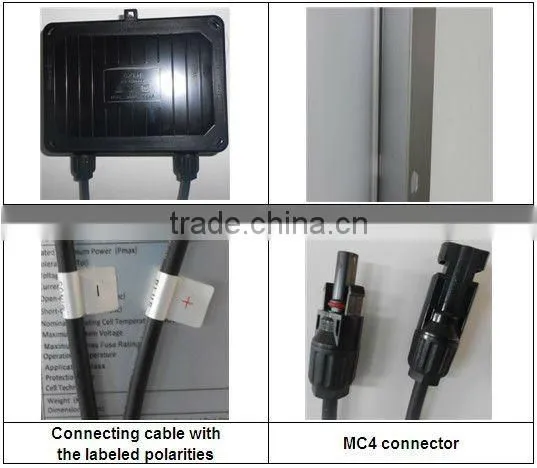

6" solar cell, 18v solar panel, 145w poly solar panel with 90 cm connecting cable, MC-4 connector ,
Technical parameter(with tolerance 0+3%)
| Maximum Power(W) | 145Wp |
| Optimum Power Voltage(Vmp) | 18.36V |
| Optimum Operating Current(Imp) | 7.90A |
| Open Circuit Voltage(Voc) | 22.39V |
| Short Circuit Current(Isc) | 8.68A |
| Cell Efficiency (% | |
| Module Efficiency (%) | 14.40% |
Mechanical Characteristics
| Cell Type | Polycrystalline 156*156mm (6 inch) |
| No. of Cell | 36 (4*9) |
| Dimensions | 1482*678*35mm |
| Weight | 12.1kg |
| Front Glass | 3.2mm,High Transmission, Low Iron,Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction box | IP65 Rated |
| Output Cable | TUV 1x4.0mm2/UL12AWG,Length:900mm |
Temperature and Coefficients
| Operating Temperature(°C) | -40°C ~ + 85°C |
| Maximum System Voltage | 600V(UL)/1000V(IEC) DC |
| Maximum Rated Current Series | 10A |
| Temperature Coefficients of Pmax | -0.435% |
| Temperature Coefficients of Voc | -0.35% |
| Temperature Coefficients of Isc | 0.043% |
| Nominal Operationg Cell Temperature (NOCT) | 47+/-2°C |
Quality guarantee
| 1) Industry leading power output warranty(10 years/90%,25years/80%) |
| 2) 10-year warranty on product-materials and processing technology |
| 3) ISO9001:2000(Quality System Management) certified factory |
Features
* High conversion efficiency
* Low power tolerance of +3%
* Low degradation under light exposure
* Can withstand high wind-pressure, snow load and extreme temperature
* Passing IEC 61215 2400Pa mechanical load test
Applications
* On-grid and off-grid residential roof system
* On-grid and off grid commercial/industrial system
* Solar power plants
* For farm machinery power
* Solar street light
* Solar telecom system
* Other solar on grid and off grid applications
