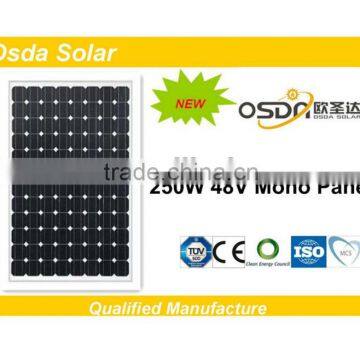

pv Solar Panel Module 250w

pv Solar Panel Module 250w thumbnail-1
pv Solar Panel Module 250w photo-1
US$ 0.5 - 0.58 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OSDA
Model Number:
ODA250-30-M
Contact Supplier Request Quote Chat Now
Ningbo Osda Solar Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name OSDA
Model Number ODA250-30-M
Specification Normal
Application Commercial
Output Voltage (V) 30V
Solar Power (W) 250W

Specifications

*IEC61215, IEC61730, MCS CEC certified
*TUV, CE conformity
*ISO 9001:2008(Quality Management System) certified factory



Details on the back



pv solar panel module 250w

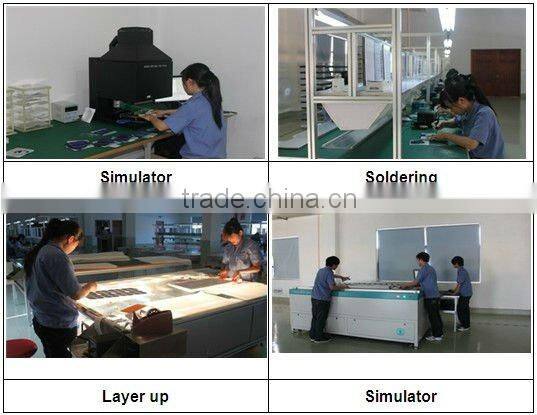

Production



pv solar panel module 250w

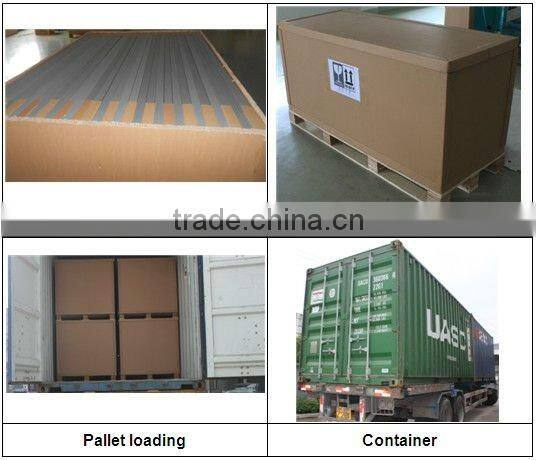

Packing & Loading



pv solar panel module 250w







                                                     Technical parameter(with tolerance 0+3%)

Maximum Power(W) 250Wp
Optimum Power Voltage(Vmp) 30.48V
Optimum Operating Current(Imp) 8.22A
Open Circuit Voltage(Voc) 37.30V
Short Circuit Current(Isc) 8.93A
Cell Efficiency (% ) 16.89%
Module Efficiency (%) 15.40%



                                                                  Mechanical Characteristics

Cell Type Monocrystalline 125x125mm (5 inch)
No. of Cell 72(6x12)
Dimensions 1640x990x40mm
Weight 18kg
Front Glass 3.2mm,High Transmission, Low Iron,Tempered Glass
Frame Anodized Aluminium Alloy
Junction box IP65 Rated
Output Cable TUV 1x4.0mm2/UL12AWG,Length:900mm



                                                               Temperature and Coefficients

Operating Temperature(°C)  -40°C ~  +   85°C
Maximum System Voltage 600V(UL)/1000V(IEC) DC
Maximum Rated Current Series 10A
Temperature Coefficients of Pmax -0.435%
Temperature Coefficients of Voc -0.35%
Temperature Coefficients of Isc 0.043%
Nominal Operationg Cell Temperature (NOCT) 47+/-2°C



                                                                      Quality guarantee

1) Industry leading power output warranty(10 years/90%,25years/80%)
2) 10-year warranty on product-materials and processing technology
3) ISO9001:2000(Quality System Management) certified factory



Features

* High conversion efficiency

* Low power tolerance of +3%

* Low degradation under light exposure

* Can withstand high wind-pressure, snow load and extreme temperature

* Passing IEC 61215 2400Pa mechanical load test



Applications

* On-grid and off-grid residential roof system

* On-grid and off grid commercial/industrial system

* Solar power plants

* For farm machinery power

* Solar street light

* Solar telecom system

* Other solar on grid and off grid applications
