Wire Saw Machine for All Types Stone Quarry
- XIAMEN
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Condition | New | Motor Type | Stepper Motor | |
| Power(W) | 55kw | Capacity(t/h) | 30set/month | |
| Place of Origin | Fujian, China | Brand Name | KEEN TOOL | |
| Model Number | LQ-WSM | Dimension(L*W*H) | 1850*1100*1300mm | |
| Weight | 2.5T | Certification | CE SGS, CE SGS | |
| Warranty | 1 year for main parts, like PLC, inverters | After-sales Service Provided | Engineers available to service machinery overseas | |
| Application | Stone Quarry | Type | Other, Raymond Mill |
Product Description

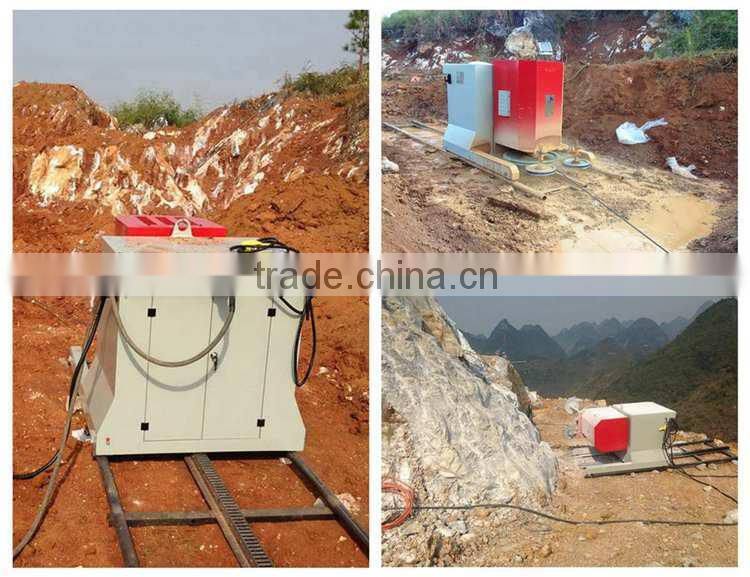

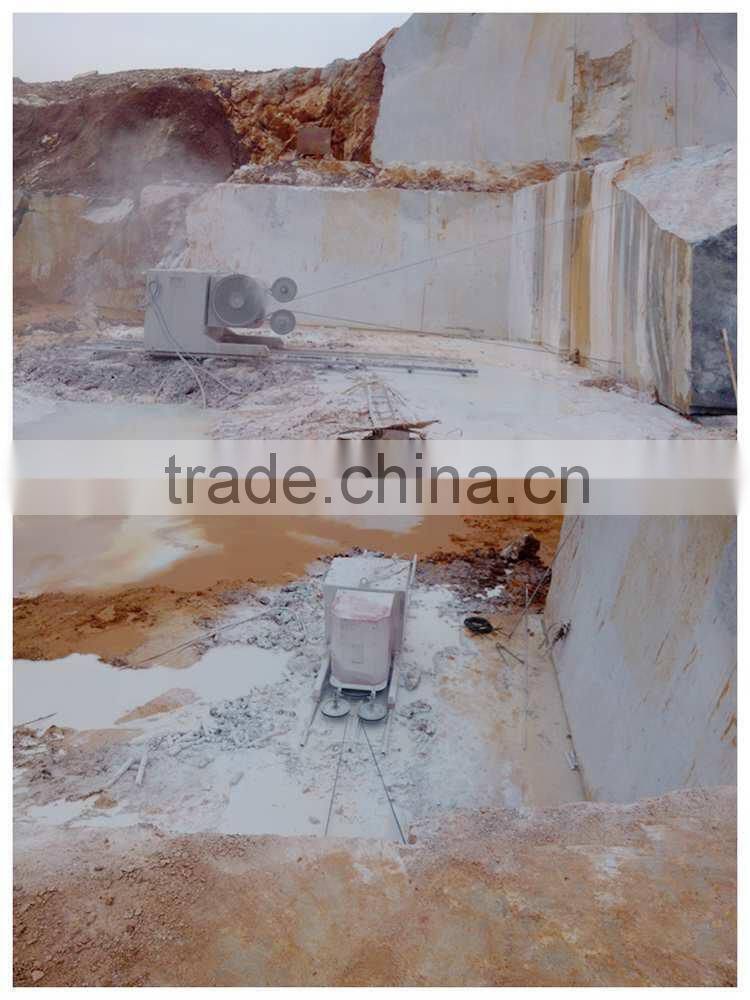

Wire saw Machine for all types stone quarry
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.

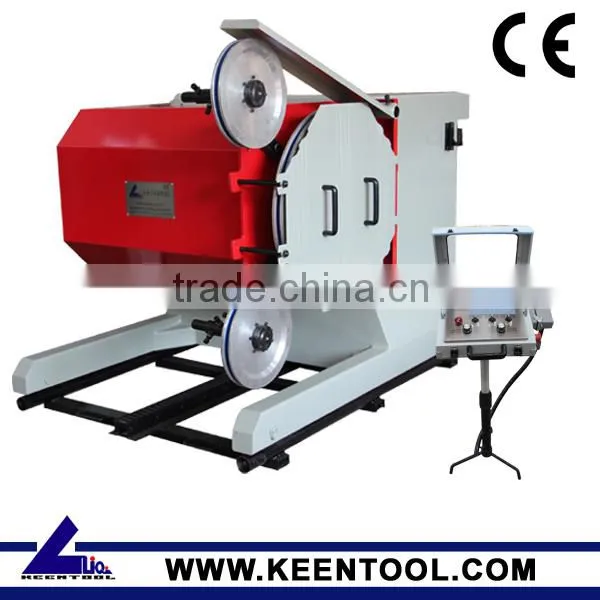

Wire Saw Machine for Stone Quarry
The electrical control system of our wire saw machines are with PLC and two inverters that allow to variable linear speed
of wire from 0-40 M/S. The translation and 360 degree rotation of flywheel-holder head of wire saw machines are motorized and allow an easy and fast positioning of the machine, as well as the
execution of two parallel cuts. All the movement of the wire saw machines are motorized and an automatic mechanism
keeps always constant and programmed tension of diamond wire in working conditions. Our Wire Saw Machines are with
Safety devices that shut off the machine in case of wire breakage, over voltage, over electric current, over heating of motor,
incorrect maneuvers etc. The greatest advantage of our wire saw machines are safe cutting and good diamond wire
durability as well as being user friendly.
Wire Saw Machines with features of :
1-Variable wire speed range from 0-40 M/S
2- Automatic step-less tensioning system to keep the wire always in optimal working condition.
3. Motorized rotation of driving wheel holder from 0-3600 with limit protection for over movement.
4. Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement.
5- Maximum travel speed on rail without loading 1.75 Meters/Min.
6- Safety alarm and stop system in case of unexpected wire break or any other faults.
7- Distant control with very simple panel to operate the saw with better safety easier understanding to the operator.
8Separate automatic reset selection switch to control the rotation and lateral extension movement; which can be take
off when it is no need.
9-20 second main motor start alarm sound and flash light to warn around people leave away.
10Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside
space for easier maintenance and repairment.
11-General gross weight: 2500-3400kgs; General volume dimension:4-7cubic meter (with packing)

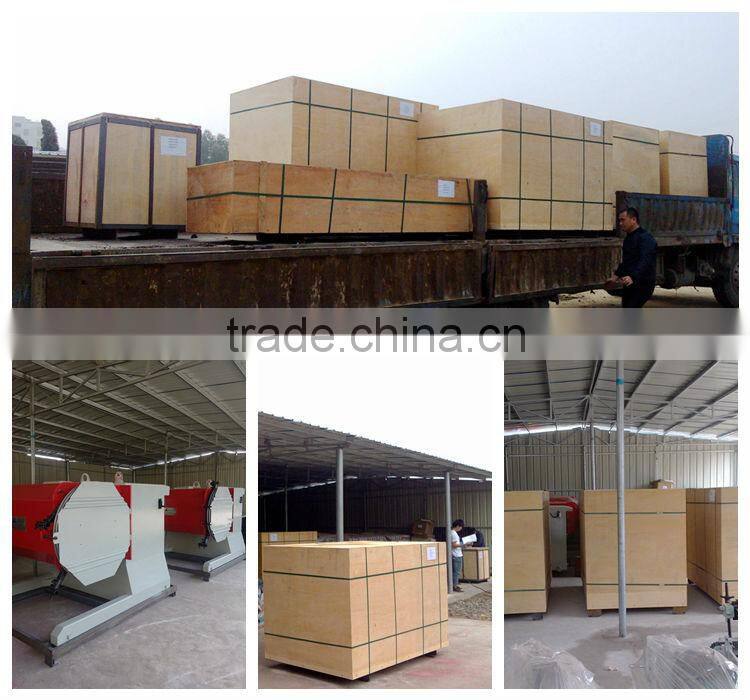

Packaging: All packing will be done with protection against damages while transporting.
Delivery time: In 10 days for one set of wire saw machine.
