Major Models of LQ series stone mining equipment:
Remarks:
1.Standard power supply is 3-phases, 380Vots, 50Hz, other types could be ordered by customer.
2.We are in a position to design the wire saw machines as per customer special requirement.
The major functions of our stone mining equipment
1.Variable wire speed range from 0-40 M/S.
2. Automatic step-less tensioning system to keep the wire always in optimal working condition.
3.Motorized rotation of driving wheel holder from 0-3600 with limit protection for over movement.
4.Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement.
5.Maximum travel speed on rail without loading 1.75 Meters/Min.
6.Safety alarm and stop system in case of unexpected wire break or any other faults.
7.Distant control with very simple panel to operate the saw with better safety easier understanding to the operator.
8.Separate automatic reset selection switch to control the rotation and lateral extension movement; which can be take off when it is no need.
9. 20 second main motor start alarm sound and flash light to warn around people leave away. 10- Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside space for easier maintenance and repairment.
11. General gross weight: 2500-3400kgs; General volume dimension:4-7cubic meter (with packing)
Packaging: All packing will be done with protection against damages while transporting.
Delivery time: In 7 days for one set of diamond wire cutting mamine.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.

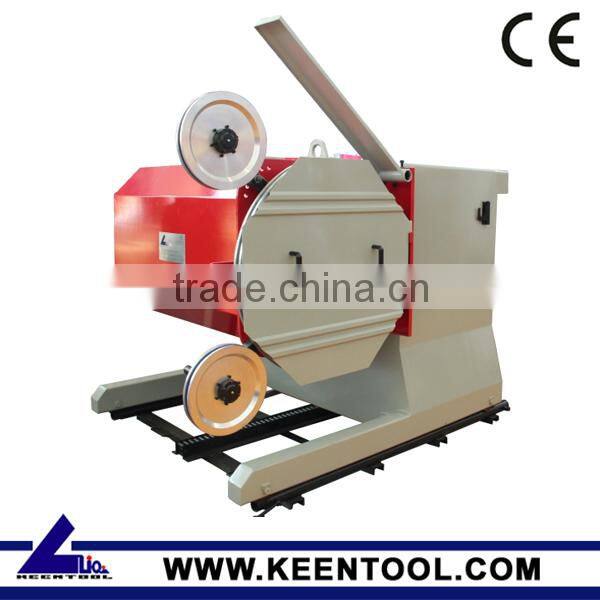

The photos of Stone Mining Equipment
Pakaging of Stone Mining Equipment
Woking site
Stone fair
We, Keen Diamond Tool Co. Ltd specialize in development and production of series machinery and diamond tools for stone quarry, processing and civil construction work, especially in the fields of diamond wires, diamond beads, wire saws, DTH drill etc. All of our products have been proved in very competitive performance in USA, Brazil, Mexico, Sweden, Germany, South Africa, Thailand etc.
