50~200MHZ DVB-S2 modulator

Specifications

1. DVB-S2(EN302307) /DVB-S support
2. two ASI input support hot backup
3. 50~200MHz output
4. MER more than 42db

Outline

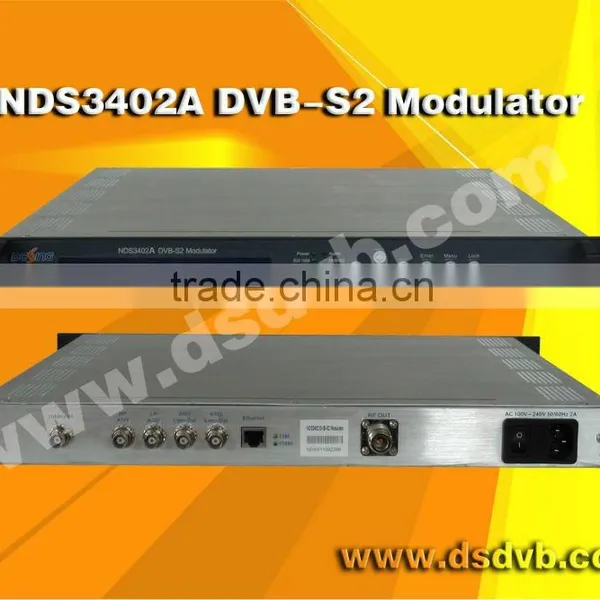

The DEXIN NDS3402A DVB-S2 modulator is a high performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It adopts advanced framing structure, channel coding and modulation technology, increasing over 50% transmission ability more than DVB-S modulator under the same transmission condition and also providing a more powerful receiving ability in the same spectral efficiency. In addition, it is backwards-compatible with DVB-S (EN300421) modulating standard. This DVB-S2 modulator supports local and remote control through NMS software. The NDS3402A DVB-S2 modulator can be used for Broadcasting, Interactive Services, News Gathering and other Broadband satellite applications.

Features

1.   Fully complying with DVB-S2(EN302307) standard
2.   Backwards-compatible with DVB-S (EN300421) modulating standard
3.   Two ASI inputs supporting hot backup
4.   Supporting local and remote control
5.   Output level attenuation
6.   10MHz outer reference clock input
7.   Output frequency range: 50~200MHz
8.   Full-size front panel LCD display and keyboard

Specifications

MPEG-TS Input	Supporting both packet and byte mode TS input
	Supporting 188/204Byte transmission stream packet
	Two ASI inputs, supporting hot backup
	ASI input connector: BNC, impedance 75Ω
IF Output	Frequency is continuously adjustable from 50 to 200MHz
	Output Level attenuation is continuously adjustable from 0 to 31 dB; in step of 1 dB.
	Maximum Output level: 0dBm
	MER≥42dB
	Connector: N type, impedance 50Ω
Channel coding and modulation	Outer coding	DVB-S	DVB-S2
		RS coding	BCH coding
	Inner coding	Convolutional	LDPC coding
	Code Rate	1/2,2/3,3/4,5/6,7/8	1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10
	Constellation	QPSK	QPSK,8PSK
	Roll-off Factor	0.2, 0.25, 0.35	0.2, 0.25, 0.35
	Symbol Rate	1~45MBauds	1~30M@8PSK; 1~45 M@QPSK
Miscellaneous	Dimension	44mm×482mm×410mm
	Environmental	0~45°C(operation), -20~80°C (storage)
	Power	100-240VAC±10%,50Hz-60Hz
