Specifications
plying with ATSC A/53 standard2.EN50083 ASI and SMPTE 310M interface standard
3.8-VSB
Outline

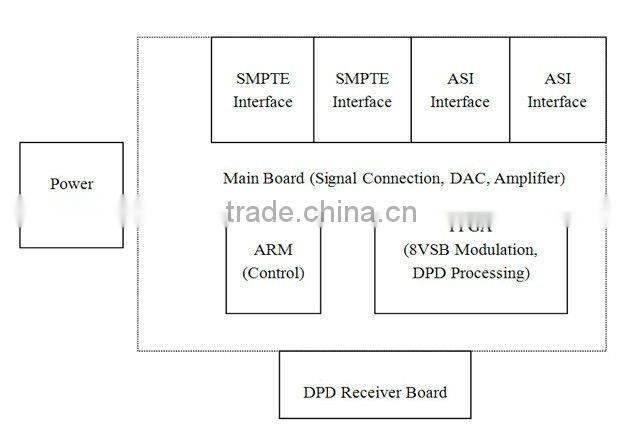

NDS2403C ATSC-T modulator is DEXIN’s newly designed product supporting DVB-ASI and SMPTE-310 input. After modulating the inputting signals through ATSC 8-VSB, it can output RF signals with the range between 40~860MHz. In other words, NDS2403C ATSC-T modulator supports the coding and modulating mode under ATSC-T A/53 standard. It also supports adaptive non-linear and linear digital pre-distortion (DPD). Additionally, the system of this device can be on line controlled and upgraded through network, which can be widely used in ATSC-T digital broadcasting network setup and the testing for ATSC-T set top box design.
Features:
- Full complying with ATSC A/53 standard
- Constellation mapping: 8-VSB
- EN50083 ASI and SMPTE 310M interface standard
- Dual channel DVB-ASI and SMPTE-310M input, automatic switch-over and hot backup
- RF range: 40MHz~860MHz,1Hz stepping
- Front panel and IP long distance control
- RS coding, data interleaving, Trellis coding
- Channel bandwidth: 6MHz
- Supports adaptive linear digital pre-distortion (DPD)
- Supports adaptive non-linear digital pre-distortion (DPD)
- Adopts constant-temperature crystal oscillator, the frequency stability can be up to 0.1 PPM
- Excellent RF output performance: EVM, MER, SNR, shoulder level and etc.
- Remote maintenance, monitoring and software upgrading
- NMS, Keyboard and LCD operation
Specification
Input |
2 channels ASI input, hot backup, BNC interface |
|
2 channels SMPTE 310M input, hot backup, BNC interface | ||
1 channel 10MHz reference clock input | ||
Modulation |
Standard |
ATSC A/53 |
Constellation |
8VSB |
|
FEC |
RS(208 188)+Trellis |
|
RF output |
Port |
N Type, 50Ω impedance |
RF range |
40~860Mhz,1hz stepping |
|
Output Level ATT |
-25dbm~3dbm,0.1db stepping |
|
MER |
≥ 40db |
|
Non-linear DPD |
over 10db ACPR improvement (normally) |
|
linear DPD |
over 10db non-flatness adjustment(normally) |
|
System |
LCD display & keyboard operation, NMS, Chinese & English operation display |
|
Software upgraded through network | ||
General |
Demission(WxLxH) |
482mm×455mm×44.5mm |
Weight |
6.0kg |
|
Temperature |
0~45°C( operation),-20~80°C( storage) |
|
Power Supply |
AC 110V±10%,50/60Hz or AC 220V±10%, 50/60Hz |
|
Consumption |
25W |
|
