ASI & SMPTE ATSC-T modulator

Specifications

1.ATSC A/53 standard
2.EN50083 ASI and SMPTE 310M interface standard
3.10MHz reference clock input

 Outline

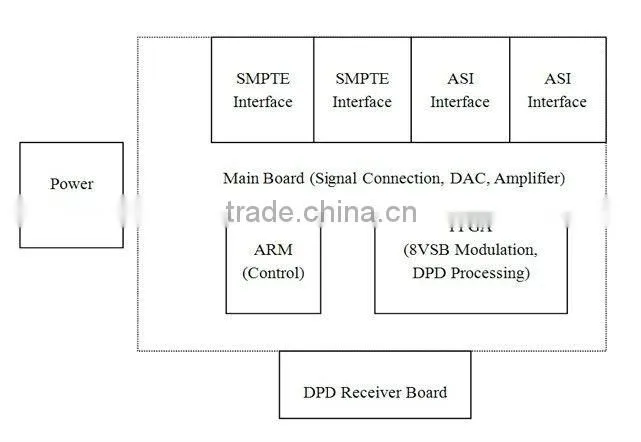

NDS2403C ATSC-T modulator is DEXIN’s newly designed product supporting DVB-ASI and SMPTE-310 input. After modulating the inputting signals through ATSC 8-VSB, it can output RF signals with the range between 40~860MHz. In other words, NDS2403C ATSC-T modulator supports the coding and modulating mode under ATSC-T A/53 standard. It also supports adaptive non-linear and linear digital pre-distortion (DPD). Additionally, the system of this device can be on line controlled and upgraded through network, which can be widely used in ATSC-T digital broadcasting network setup and the testing for ATSC-T set top box design.



Features:

• Full complying with ATSC A/53 standard
• Constellation mapping: 8-VSB
• EN50083 ASI and SMPTE 310M interface standard
• Dual channel DVB-ASI and SMPTE-310M input, automatic switch-over and hot backup
• RF range: 40MHz~860MHz,1Hz stepping
• Front panel and IP long distance control
• RS coding, data interleaving, Trellis coding
• Channel bandwidth: 6MHz
• Supports adaptive linear digital pre-distortion (DPD)
• Supports adaptive non-linear digital pre-distortion (DPD)
• Adopts constant-temperature crystal oscillator, the frequency stability can be up to 0.1 PPM
• Excellent RF output performance: EVM, MER, SNR, shoulder level and etc.
• Remote maintenance, monitoring and software upgrading
• NMS, Keyboard and LCD operation



Specification



Input		2 channels ASI input, hot backup, BNC interface
		2 channels SMPTE 310M input, hot backup, BNC interface
		1 channel 10MHz reference clock input
Modulation	Standard	ATSC A/53
	Constellation	8VSB
	FEC	RS(208 188)+Trellis
RF output	Port	N Type, 50Ω impedance
	RF range	40~860Mhz,1hz stepping
	Output Level ATT	-25dbm~3dbm,0.1db stepping
	MER	≥ 40db
Non-linear DPD		over 10db ACPR improvement (normally)
linear DPD		over 10db non-flatness adjustment(normally)
System		LCD display & keyboard operation, NMS, Chinese & English operation display
		Software upgraded through network
General	Demission(WxLxH)	482mm×455mm×44.5mm
	Weight	6.0kg
	Temperature	0~45°C( operation),-20~80°C( storage)
	Power Supply	AC 110V±10%,50/60Hz or AC 220V±10%, 50/60Hz
	Consumption	25W
