Help Center50~200MHZ 8psk/qpsk DVB-S2 IF Modulator
Related Products
Specifications
1. complying with DVB-S2(EN302307) standard2. two ASI input support hot backup
3. 50~200MHz ourput
Outline

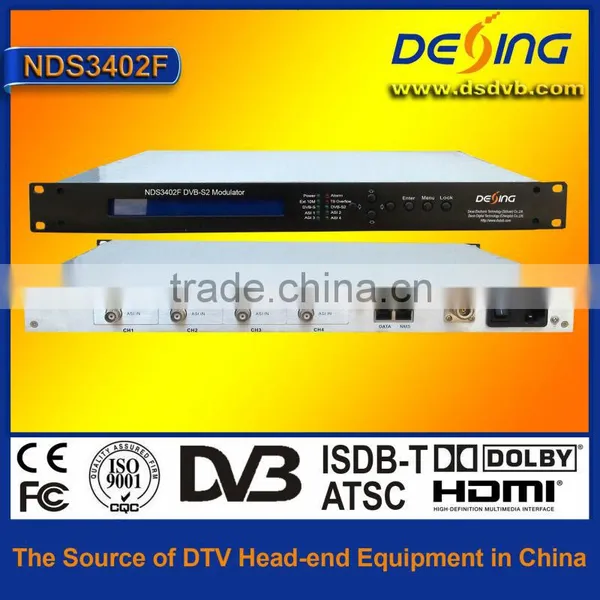

The DEXIN NDS3402A DVB-S2 modulator is a high performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It adopts advanced framing structure, channel coding and modulation technology, increasing over 50% transmission ability more than DVB-S modulator under the same transmission condition and also providing a more powerful receiving ability in the same spectral efficiency. In addition, it is backwards-compatible with DVB-S (EN300421) modulating standard. This DVB-S2 modulator supports local and remote control through NMS software. The NDS3402A DVB-S2 modulator can be used for Broadcasting, Interactive Services, News Gathering and other Broadband satellite applications.
Features
- Fully complying with DVB-S2(EN302307) standard
- Backwards-compatible with DVB-S (EN300421) modulating standard
- Two ASI inputs supporting hot backup
- Supporting local and remote control
- Output level attenuation
- 10MHz outer reference clock input
- Output frequency range: 50~200MHz
- Full-size front panel LCD display and keyboard
Specifications
MPEG-TS Input |
Supporting both packet and byte mode TS input |
||
Supporting 188/204Byte transmission stream packet | |||
Two ASI inputs, supporting hot backup | |||
ASI input connector: BNC, impedance 75Ω | |||
IF Output |
Frequency is continuously adjustable from 50 to 200MHz |
||
Output Level attenuation is continuously adjustable from 0 to 31 dB; in step of 1 dB. | |||
Maximum Output level: 0dBm | |||
MER≥42dB | |||
Connector: N type, impedance 50Ω | |||
|
Channel coding and modulation |
Outer coding |
DVB-S |
DVB-S2 |
RS coding |
BCH coding |
||
Inner coding |
Convolutional |
LDPC coding |
|
Code Rate |
1/2,2/3,3/4,5/6,7/8 |
1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
|
Constellation |
QPSK |
QPSK,8PSK |
|
Roll-off Factor |
0.2, 0.25, 0.35 |
0.2, 0.25, 0.35 |
|
Symbol Rate |
1~45MBauds |
1~30M@8PSK; 1~45 M@QPSK |
|
Miscellaneous |
Dimension |
44mm×482mm×410mm |
|
Environmental |
0~45°C(operation), -20~80°C (storage) |
||
Power |
100-240VAC±10%,50Hz-60Hz |
||
