4 in 1 FTA Satellite Receiver

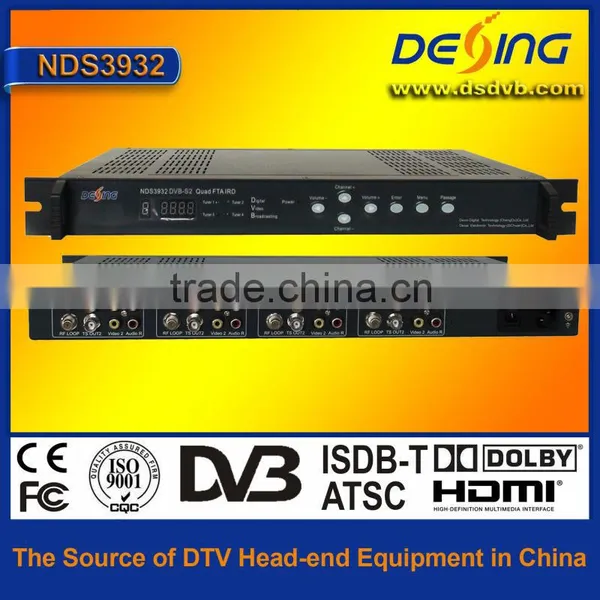

4 in 1 FTA Satellite Receiver photo-1
US$ 1 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
DEXIN
Model Number:
NDS3932
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu china
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name DEXIN
Model Number NDS3932
FTA(Free To Air) Yes
Type Digital
High Definition Yes

Specifications

4 in 1 FTA satellite receiver
2. support 4 DVB-S2 FTA channel receive
3. easy operation







NDS3932 4 in 1 FTA satellite receiver



Outline

NDS3932 4 to 4 FTA DVB-S2 IRD is a cost effective and high integrated design of four DVB-S2 IRD in one U rack space, every single set performs and operates like a single FTA ASI IRD with separate set of (2 ×CVBS, 1 ×Audio L, 1 ×Audio R) and dual (mirrored) ASI. This modularized design largely saves the cost of the transport freight, the space of frame rack and power consumption. In general, it greatly optimizes the functionality and structure of the normal standard-alone FTA IRD, providing users more convenient operating and maintenance experience.



Features

  1.   Four separate modules in 1U design.
  2.  MPEG2 , DVB-S/S2 full compatible
  3.   User-friendly and easy operating menu
  4.   Editing all parameters of satellite and transponder
  5.   OSD TV image-test (DVB ETS 300 706) and subtitle supporting
  6.   Auto-switching PAL/NTSC
  7.   Auto-saving the latest channel
  8.   4 to 4 IRD module design, more compact in structure
  9.   Standard 19″1U structure
  10.   NMS management

Specifications

Tuner IN

4×input, 4×loop through output

Input Level

-65~-25dBm

Input Frequency

950~2150MHz

Symbol Rate

1-45Msymbols

constellation

QPSK 8PSK

FEC Code Rate

1/2, 3/5, 2/3, 3/4,4/5, 5/6, 8/9,9/10

Video OUT

4×CVBS (RCA interface)

Audio OUT

4×Audio (L/R)

ASI OUT

4×2 BNC interface

Miscellaneous

Dimension

44mm×482mm×410mm

Temperature

0~45°C(Operating), -20~80°C(Storage)

Power

AC 90~220V, 50/60Hz, 25W
