NDS356xH DVB-S2 HD IRD with BISS and dual audio, and dolby digital 5.1
Demodulation Module = 2*RF/Loop out + 2*CAM + 2*Smartcard
Product Introduction

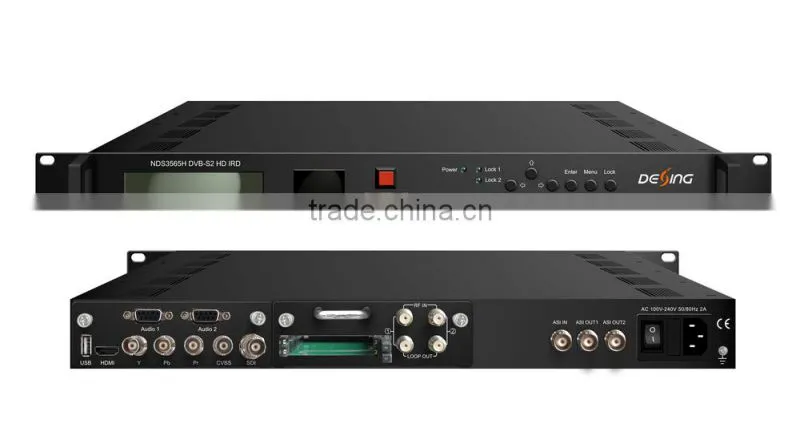

NDS356xH HD IRD is DEXIN’s all-in-one device which integrates demodulation, de-scrambler, re-mux and decoding in one case to convert RF signals into audio/video (CVBS/YPbPr/HDMI/SDI) output.
It is a 1-U case which supports 2 tuner inputs to receive signal from satellite, cable or terrestrial devices. The two CAMs/CIs accompanied and BISS modules can descramble the programs input from encrypted RF, ASI and IP.
Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.
To meet customers’ various requirements, NDS356xH is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port.
Key Features
n Demodulation + descrambler +re-mux+decoder modules in one box
n 2 DVB-C/T/T2/S/S2 Tuner inputs
n 1 ASI & 1 IP (UDP) input for re-mux
n One CAM can decrypt multiple programs from Tuners/ASI/IP
n Support BISS descrambling (Up to 120Mbps)
n One channel video output with various interface option (MPEG2/H.264)
n Dual stereo audio output, or one DD 5.1 channel output
n Support Dolby Digital AC3 Decoding and passthrough
n IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out
n Support CC, Subtitle and Teletext
n Support maximum 128 PID mapping per input
n Pluggable and changeable demodulator and decoder modules
n LCD display, Remote control and Firmware, web NMS management
n Updates via web

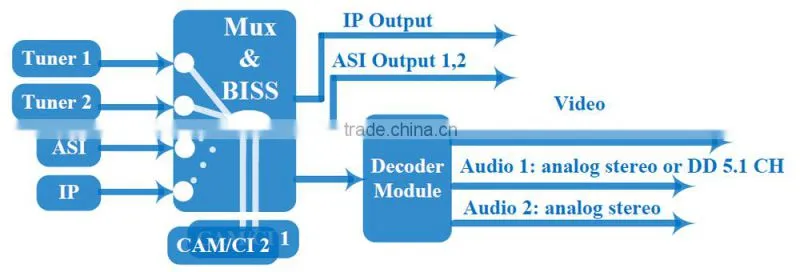

Principle Chart
Technical Specifications
Input | |||||
2 x Tuner, F type | |||||
1×ASI input for re-mux, BNC interface | |||||
1xIP input for re-mux (UDP) | |||||
Demodulating Section | |||||
DVB-C | |||||
Standard |
J.83A(DVB-C), J.83B, J.83C |
||||
Input Frequency |
30 MHz~1000 MHz |
||||
Constellation |
16/32/64/128/256 QAM |
||||
DVB-T/T2 | |||||
Input Frequency |
30MHz ~999.999 MHz |
||||
Bandwidth |
6/7/8 M bandwidth |
||||
DVB-S | |||||
Input Frequency |
950-2150MHz |
||||
Symbol rate |
2-45Msps |
||||
Signal Strength |
- 65- -25dBm |
||||
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
||||
DVB-S2 (Version 1) | |||||
Input Frequency |
950-2150MHz |
||||
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||||
Constellation |
QPSK, 8PSK |
||||
Symbol rate |
QPSK 1~45Msps; 8PSK 2~30Msps |
||||
DVB-S2 (Version 2) | |||||
Input Frequency |
950-2150MHz |
||||
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||||
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
||||
Symbol rate |
QPSK 1~45 Msps; 8PSK 2~30 Msps; 16APSK 1~45 Msps; 32APSK 1-32 Msps
|
||||
ATSC-T | |||||
Input Frequency |
54MHz~858MHz |
||||
Bandwidth |
6M bandwidth |
||||
Descrambling | |||||
CAM/CI Quantity |
2 |
||||
BISS Mode |
Mode 1, Mode E; up to 120Mbps |
||||
Output | |||||
IP Output |
1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) |
||||
2×ASI |
BNC interface, mirrored out |
||||
Decode Output |
Video Interface: 1xCVBS/YPbPr/HDMI/SDI Video Decode: MPEG-2; MPEG4 AVC/H.264 Resolution: 480i, 480p, 576i, 576p, 720p@50/59.94/60, 1080i@50/59.94/60 Chroma: 4:2:0 Audio Interface: 2 x Stereo/4xmono, HDMI, SDI Audio Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, Dolby Digital/ Dolby Digital Plus Audio Output Mode: Left, Right, Stereo, 5.1 CH (for HDMI/SDI out only) |
||||
System | |||||
Local interface |
LCD + control buttons |
||||
Remote management |
Web-server Management |
||||
Language |
English |
||||
Upgrade |
USB, web management |
||||
General | |||||
Power supply |
AC 100V~240V |
||||
Dimensions |
482*300*44.5mm |
||||
Weight |
3.5 kgs |
||||
Operation temperature |
0~45℃ |
||||

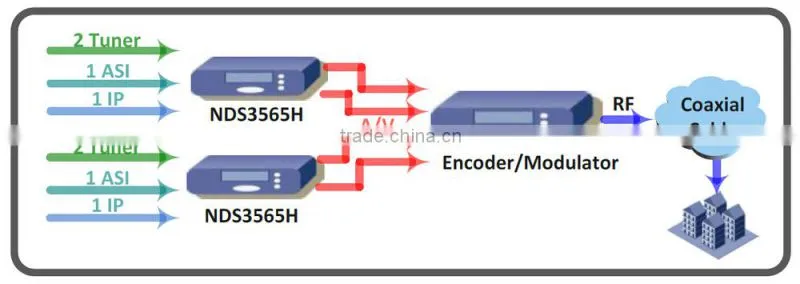

System Connection Sample
|
Ordering Guide NDS356xH, ‘x’ should be interpreted as different digits which indicate tuners of different standard. ü NDS3561H DVB-C HD IRD ü NDS3564H DVB-T/T2 HD IRD ü NDS3565H DVB-S/S2 HD IRD |
