Dexin DHP400 qam headend solution

Product Description

Product Overview

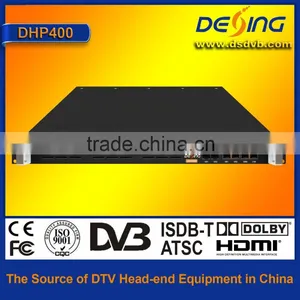

DHP400 DTV head-end processor is the new generation of intelligent headend processing equipment. This 1-U case comes with 6 independent module slots. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing and the combination of all these functions. It supports multiple input and output interfaces and signal formats. With its powerful performance and low cost, DHP400 is especially adequate for the new generation CATV system.

Key Features

l Support flexible combination of different type of modules

l Support up to 6 modules

l Support maximum 12*IP input

l Support 1 ASI (MPTS) output

l Support 2 GE output, 512 SPTS (UDP, RTSP/RTP) output from GE1, 8 MPTS (UDP,RTP) output from GE2, Unicast/Multica

l Support Web management, Updates via web

l Support redundancy power supply (Optional as required)

Technical Specifications

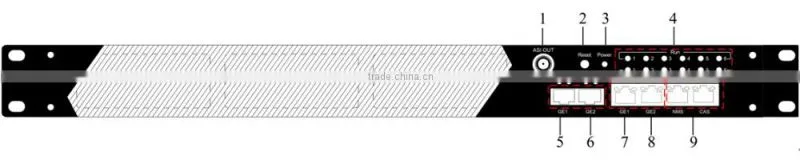

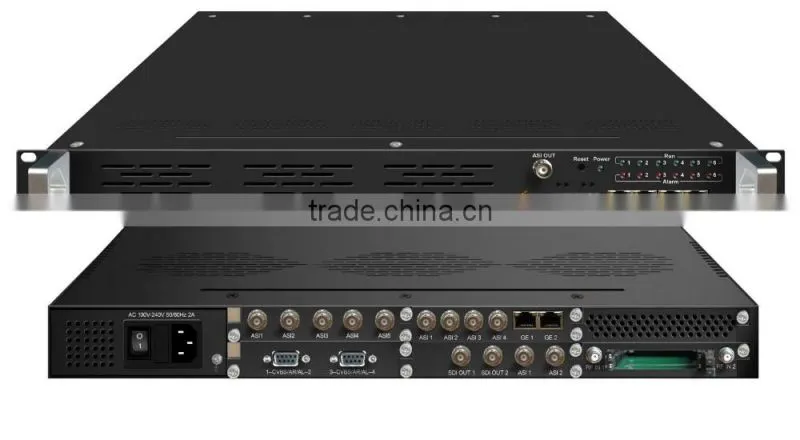

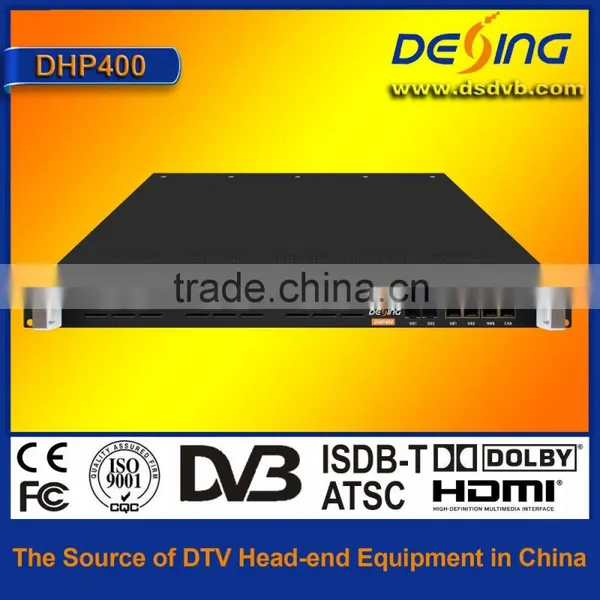

Front Panel Illustration:

1	ASI output port
2	Reset: Reset webmaster IP address, recover it to default IP address,
3	Power indicator
4	Indicator Area (if not clock, the red light on; if clock 1 IP, the green light flash, if clock 2 IP, the green light on)
5	GE1: IP output port, SFP connector
6	GE2: IP output port, SFP connector
7	GE1: IP output port, RJ45 connector
8	GE2: IP output port, RJ45 connector
9	NMS: network management system /CAS communication, Ethernet interface

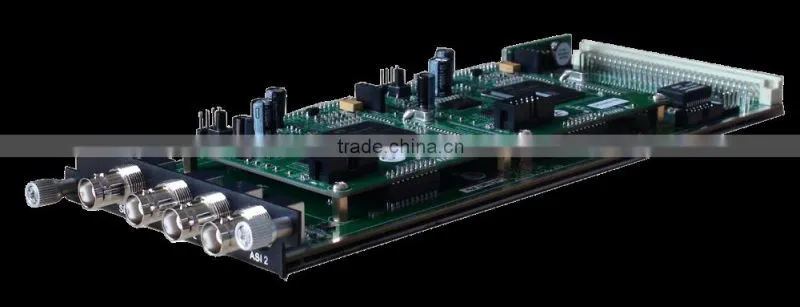

Module Specifications

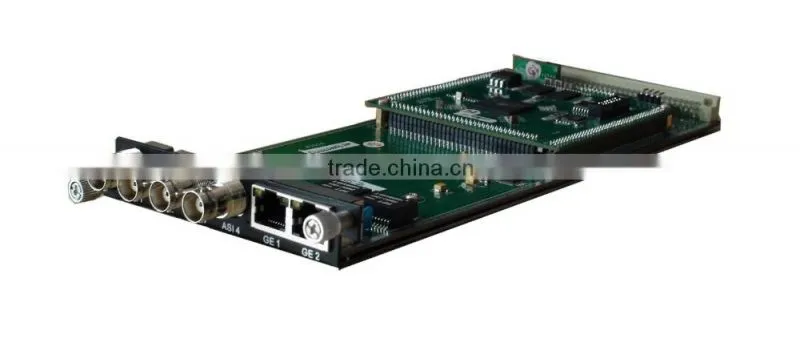

DX504 - 4 ASI/IP Multiplexing Module

Module Specifications:

ASI inputs/outputs:4 ASI bi-direction
IP inputs/outputs: 2 100/1000M Ethernet Port
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
Stream In: maximum 4 ASI input, 256×2 IP input
Stream Out: maximum 4 ASI output , 4 IP output

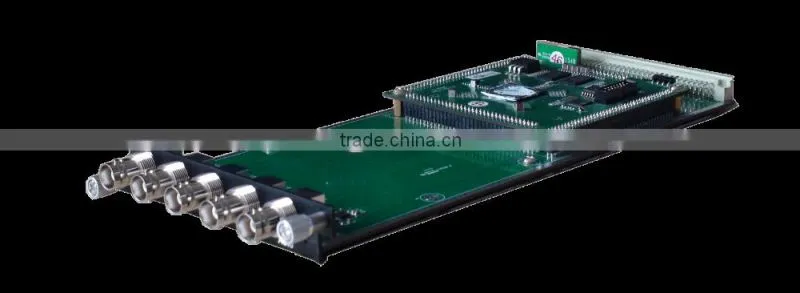

DX505 - 5 ASI Multiplexing Module

Module Specifications:

ASI inputs/outputs:5 ASI bi-direction, BNC 75 Omega
Stream in: maximum 5 ASI input
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
Stream out: maximum 5 ASI output

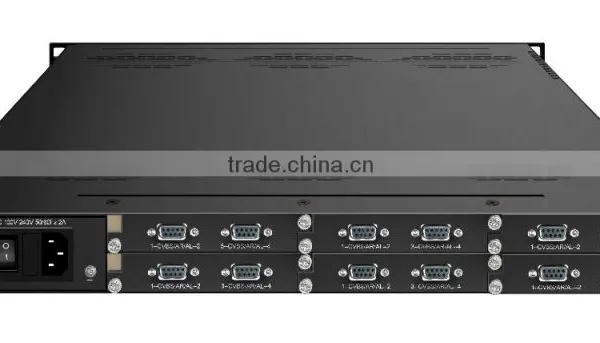

DX214 - 4 CVBS Encoding Module

Module Specifications:

Input: 4 CVBS video, 4 Stereo Audio (BNC 75 Omega)
Video Encoding:

Video format: MPEG-2
Image format: PAL, NTSC SD signal
Input resolution:720×480_60i, 544×480_60i, 352×480_60i
352×240_60i,320×240_60i,176×240_60i,76×120_60i720×576_50i,

704×576_50i,640×576_50i,352×288_50i320×288_50i,176×288_50i, 176×144_50i,
GOP structure: IBBPB
Video bitrate:0.1Mbps~8Mbps each channel
Audio Encoding:

Audio format: MPEG-1 Layer 2, DD AC3 (2.0)
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate: 128Kbps,192kbps,256kbps,320kbps,384kbps each channel

DX224 -

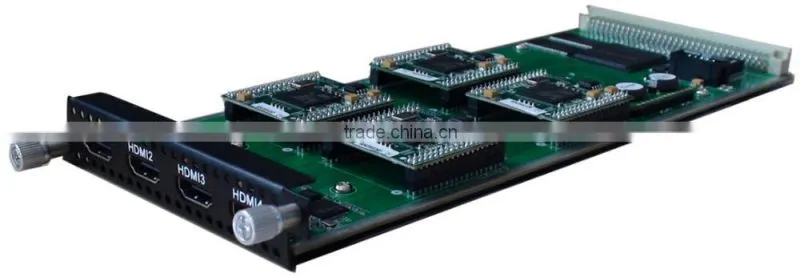

4 HDMI Encoding Module

Module Specifications:

Input: 4 HDMI
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution:
1920×1080_60P, 1920×1080_50P, 1920×1080_60i, 1920×1080_50i,
1280×720_60P,1280×720_50P, 720×576_50i,720×480_60i
GOP structure: IBBP
Video bitrate:0.8Mbps~19Mbps each channel
Rate Control:CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 passthrough
Sampling rate:48KHz
Resolution:24-bit
Audio bitrate:64Kbps~320Kbps each channel

Audio Gain:0-400

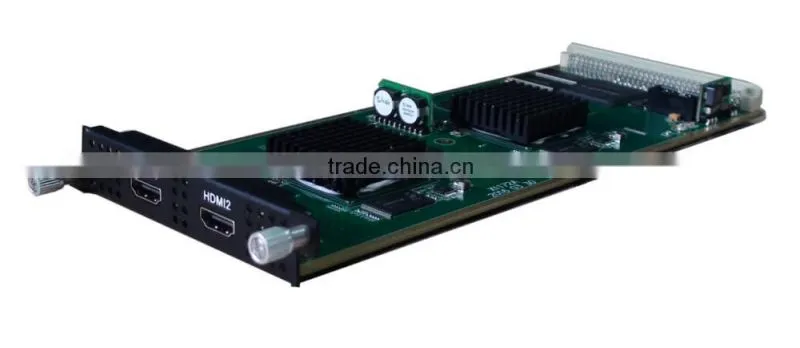

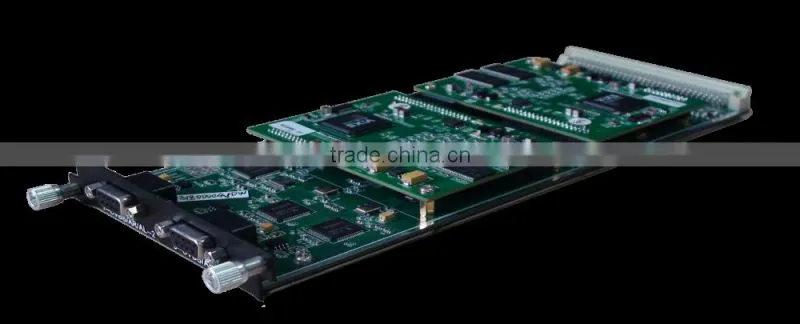

DX202A - 2 HDMI Encoding/Transcoding Module

Module Specifications:

Input: 2 HDMI, 2 CVBS (Only for CC function)
Video Encoding:
Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution:
1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P
720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio:16:9, 4:3
Video bitrate:0.5~19.5Mbps for H.264 encoding
1~19.5Mbps for MPEG-2 encoding
Audio Encoding:
Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
Dolby Digital AC3 (2.0) encoding or AC3 (2.0/5.1) passthrough
Sampling rate:48KHz
Audio bitrate:64Kbps-320kbps each channel
Video Tanscoding:
2*MPEG2 HD → 2*MPEG2/H.264 HD
2*MPEG2 HD → 2*MPEG2/H.264 SD

4 *MPEG2 SD → 4 *MPEG2/H.264 SD
2* H.264 HD → 2*MPEG2/H.264 HD
2* H.264 HD → 2*MPEG2/H.264 SD

4* H.264 SD → 4 *MPEG2/H.264 SD
Audio Tanscoding:
MPEG-1 Layer 2, AAC and AC3 any-to-any

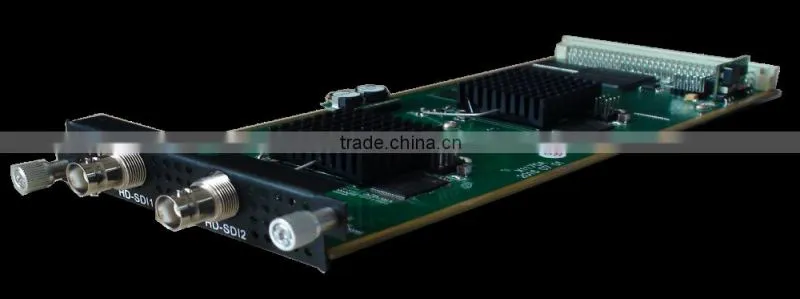

DX202A-D - 2 HDSDI Encoding/Transcoding Module

Module Specifications:

Input: 2 HD-SDI
Video Encoding:
Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution:
1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P
720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio:16:9, 4:3
Video bitrate:0.5~19.5Mbps for H.264 encoding
1~19.5Mbps for MPEG-2 encoding
Audio Encoding:
Audio format:
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
Dolby Digital AC3 (2.0) encoding or AC3 (2.0/5.1) passthrough
Sampling rate:48KHz
Audio bitrate:64Kbps-320kbps each channel
Video Tanscoding:
2*MPEG2 HD → 2*MPEG2/H.264 HD
2*MPEG2 HD → 2*MPEG2/H.264 SD
4 *MPEG2 SD → 4 *MPEG2/H.264 SD
2* H.264 HD → 2*MPEG2/H.264 HD
2* H.264 HD → 2*MPEG2/H.264 SD
4* H.264 SD → 4 *MPEG2/H.264 SD
Audio Tanscoding:
MPEG-1 Layer 2, AAC and AC3 any-to-any

DX702 - 2 HD-SDI Decoding Module

Module Specifications:

ASI input/output:2 ASI bi-direction, BNC 75Omega
Decoding:
Video/Audio Out: 2 HD/SD SDI output

Video Format: MPEG-2 & MPEG4 AVC/H.264
Resolution: 480i, 480p, 576i, 576p, 720p@50/59.94/60, 1080i@50/59.94/60

Chroma: 4:2:0

Audio Format: MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough,
Support Dual Audio Out, CC/Subtitle

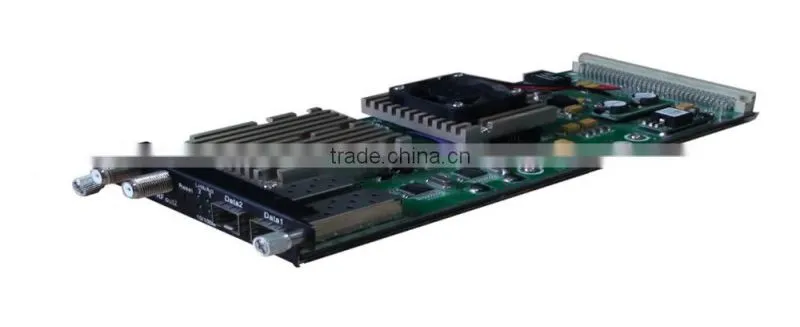

DX316/DX332 -

16/32

QAM Modulating

Module/

DX308T - 8 DVB-T Modulating Module

Module Specifications: (DX316/DX332)

Data input:512×2 IP input over UDP/RTP, 2 100/1000M Ethernet Ports
Data output:16 or 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2* 100/1000M Ethernet Ports
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 16/32 channels of multiplexing, scrambling and modualtion
Multiplexing:
Maximum PID Remapping: 180 input per channel
Function:PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Scrambling:
Maximum simulcrypt CA: 4
Standard:ETR289, ETSI 101 197, ETSI 103 197
Connection:Local/remote connection
Modulation:
Standard: EN300 429/ITU-T J.83A/B (DVB-C)
MER: ≥40db
RF frequency: 50~960MHz, 1KHz step
RF output level: -20~+10dbm(87~117 dbµV), 0.1db step for all carriers
Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
Constellation: 16/32/64/128/256QAM
Output: 16 non-adjacent carrier outputs within 192M bandwidth
Output: 32 non-adjacent carrier outputs within 384M bandwidth

Module Specifications: (DX308T)

Data input: 512×2 IP input over UDP/RTP, 2 100/1000M Ethernet Ports
Data output:8 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M Ethernet Ports
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 8 channels of multiplexing and modualtion.
Multiplexing:
Input Channel: 1024
Maximum PID Remapping: 180 input per channel
Function:PID remapping ( automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Modulation:
Standard: ETSI EN300 744 (DVB-T)
MER: ≥40db
RF Frequency: 50~960MHz, 1KHz step
RF Output Level: -20~+10dbm (for all carriers), 0.5db stepping
Constellation: QPSK/16QAM/64QAM
Bandwidth: 6/7/8 MHz
Trans mode: 2K/4K/8K
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
RF Output: 8 non-adjacent carrier outputs within 192M bandwidth

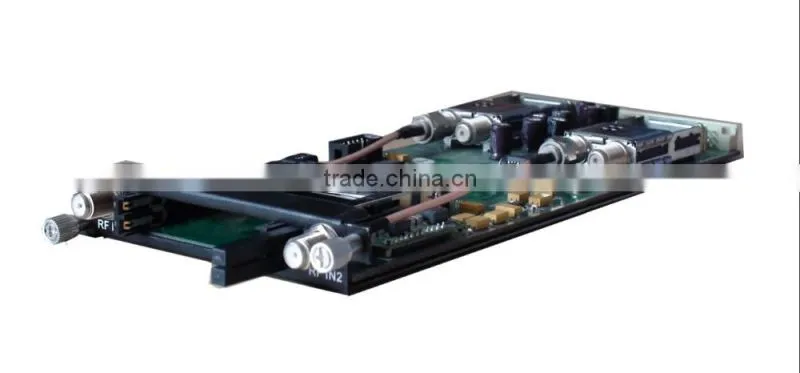

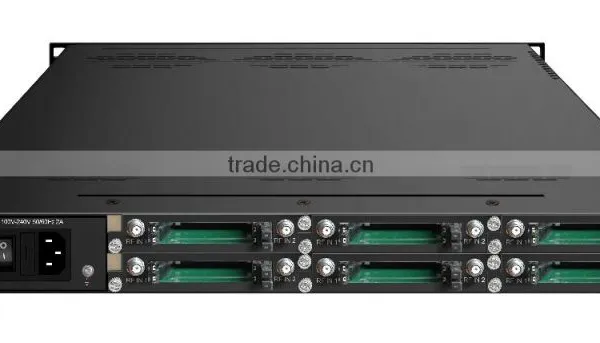

DX902/DX912 - 2 DVB-S/S2 Descrambling Module

Module Specifications: Stream in: 2 Tuner input, F Type DVB-CI: 2 independent common interface slots Standard: DX902: DVB-S/S2; DX912: DVB-C
	DVB-S	DVB-S2
Input Frequency:	950-2150MHz	950-2150MHz
Symbol Rate:	QPSK 2-45Mbauds	QPSK 1-45Mbauds 8PSK 2~30Mbauds
FEC Demodulation	1/2, 2/3,3/4,5/6,7/8	1/2, 3/5, 2/3, 3/4,4/5,5/6,8/9, 9/10
Signal Strength: -65~-25dBm Stream in: 2 Tuner input Support Diseqc function DVB-C Standard:J.83A(DVB-C), J.83B, J.83C Input Frequency: 950-2150MHz Constellation:16/32/64/128/256 QAM Multiplexing: Maximum PID Remapping: 256 input Function:PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically Descrambling: CAM/CI Quantity: 2 BISS Mode: Mode 1, Mode E; up to 120Mbps (Optional as required)

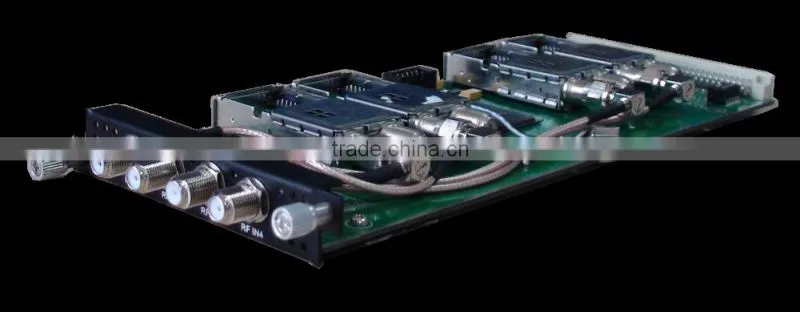

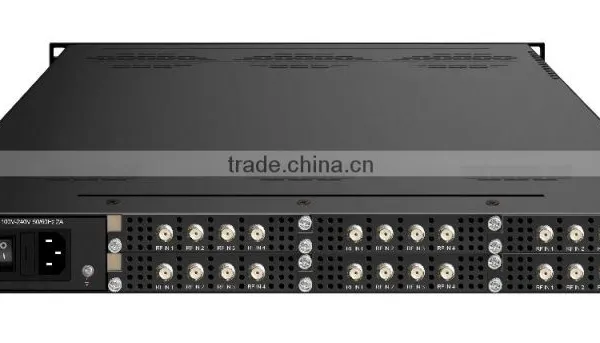

DX904/DX914 - 4 FTA Tuner Module

Module Specifications: Stream in: 4 Tuner input, F Type Standard: DX904: DVB-S/S2; DX914: DVB-C
	DVB-S	DVB-S2
Input Frequency:	950-2150MHz	950-2150MHz
Symbol Rate:	QPSK 2-45Mbauds	QPSK 1~45Mbauds 8PSK 2~30Mbauds 16APSK 1~45 Msps 32APSK1~32 Msps (16APSK&32APSK are optional as required)
FEC Demodulation	1/2, 2/3,3/4,5/6,7/8	1/2, 3/5, 2/3, 3/4, 4/5,5/6,8/9, 9/10
Signal Strength: -65~-25dBm Support Diseqc function DVB-C Standard:J.83A(DVB-C), J.83B, J.83C Input Frequency: 30-1000MHz Constellation:16/32/64/128/256 QAM Multiplexing: Maximum PID Remapping: 256 input Function:PID remapping (automatically or manually), Accurate PCR adjusting

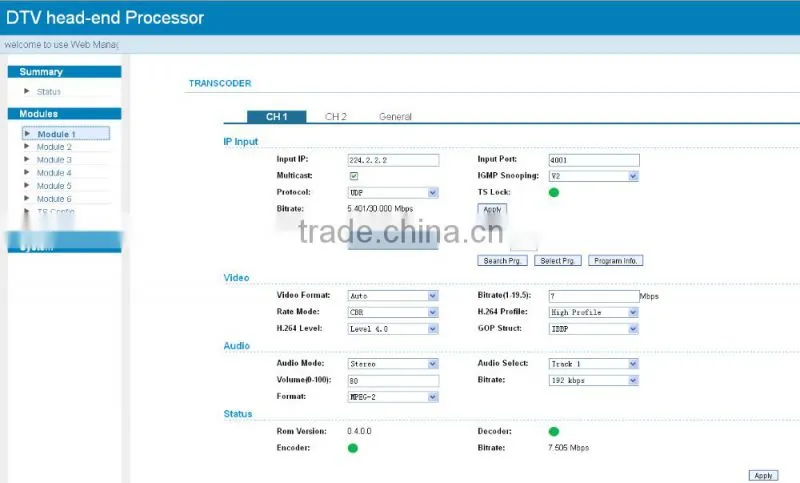

Web-GUI management
