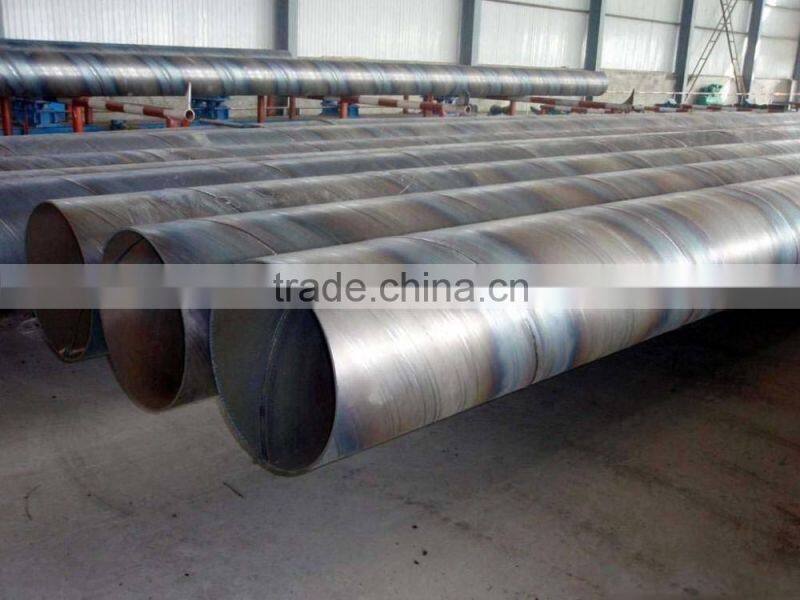

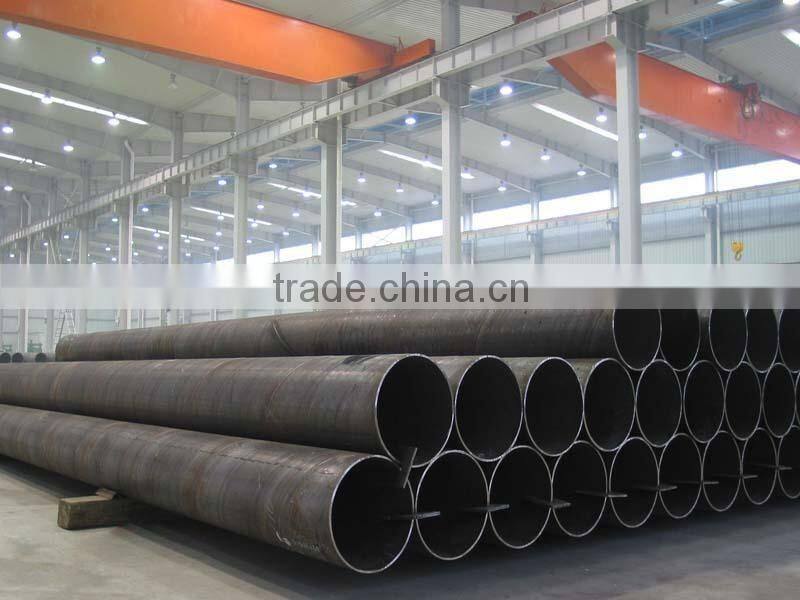

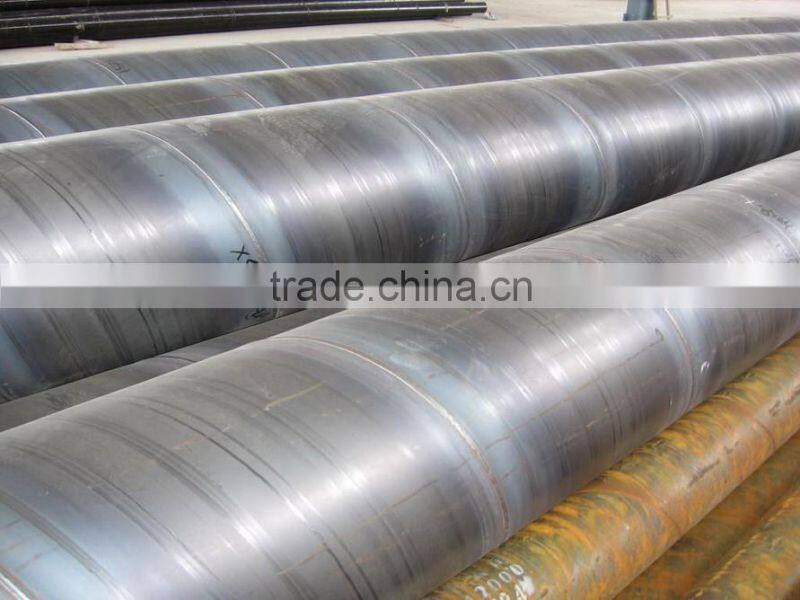

Help CenterHigh Quality Q235 Q195 Q345 Spiral Welded Steel Pipe
Related Products
-
ASTM A53/A106 GR.B Carbon Steel Pipe Seamless Steel PipeUS$ 600 - 1,000MOQ: 5 Tons -
Black Seamless Carbon Steel PipeUS$ 600 - 1,000MOQ: 500 Tons
-
Cold Drawn Carbon Steel PipeUS$ 600 - 1,000MOQ: 5 Tons
-
Carbon Steel PipeUS$ 500 - 800MOQ: 5 Tons
-
Din 2448 ST35.8 Schedule 40 Seamless Carbon Steel PipeUS$ 600 - 800MOQ: 50 Tons
High Quality Low Price Carbon Steel Pipe /ERW Pipe
| Product Specification |
Wall Thickness |
0.4 - 20 mm |
Thickness Tolerance |
±0.05 |
Length |
1---12M , according to customers' requirements |
Outer Diameter |
19 - 300 mm |
O.D tolerance |
±0.03 |
Material |
Q195/Q215/Q235/Q345 Q235B, A53(A,B), Gr.B, X42, X46, X52, X56, X60, X65, X70, X80,etc |
Standard |
API 5L, EN-10208-1/2, GB9711.1/2, ISO, BS1387, ASTM A53, GB 3091 |
Technique |
ERW |
Surface |
Bare, Varnished, Zinc coating, Anti-corrosion, 3PE, PE/PP/EP/FBE. etc. |
Application |
For oil pipe, line pipe in petroleum and natural gas, structure pipe, water and gas, also for chemical industry |
Packaging Details |
Standard export packing or according to the clients required |
| Chemical Composition |
Item |
Chemical Composition % |
Mechanical Property |
||||||
Steel |
C |
Mn |
S |
P |
Si |
yield point Mpa |
tensile strength Mpa |
elongation % |
BS1387 |
<0.2 |
< 1.2 |
<0.045 |
<0.045 |
<0.30 |
>195 |
325-460 |
20 (min) |
A53 A |
0.25 |
0.95 |
0.045 |
0.05 |
-- |
>205 |
> 330 |
26--30 |
A53 B |
0.3 |
1.2 |
0.045 |
0.05 |
-- |
>240 |
> 415 |
21--26 |
A500AD |
<0.26 |
<1.35 |
<0.035 |
<0.035 |
0<0.30 |
230--250 |
310-400 |
22--26 |
A500 B C |
< 0.26 |
< 1.35 |
<0.035 |
<0.035 |
0<030 |
315--345 |
400--425 |
21--22 |
S235 |
<0.20 |
< 1.4 |
<0.040 |
<0.040 |
<0.3 |
>235 |
> 425 |
21--22 |
S355 |
< 0.22 |
< 1.6 |
<0.030 |
<0.030 |
< .55 |
>355 |
470-630 |
21-22 |
C250 |
< 0.3 |
< 1.2 |
<0.045 |
<0.040 |
<0.3 |
250 |
320 |
25 |
C350 |
< 0.22 |
< 1.6 |
<0.035 |
<0.035 |
<0.55 |
350 |
430 |
22 |
Product Applications | |||
|
1. Widely used in fencing, scaffolding, engineering 2. Greenhouse, low medium pressure fluid, coal gas or oil 3. Sewage conveying, heating steam, project pressure, bridge 4. Fire fighting, gas pipes, water transport and water supply projects Feature: 1. Economy Benefit: ERW steel pipe is less expensive than seamless steel pipe. 2. High Precision: ERW steel pipe has a closer tolerance of wall thickness when compared with seamless steel pipe.
|

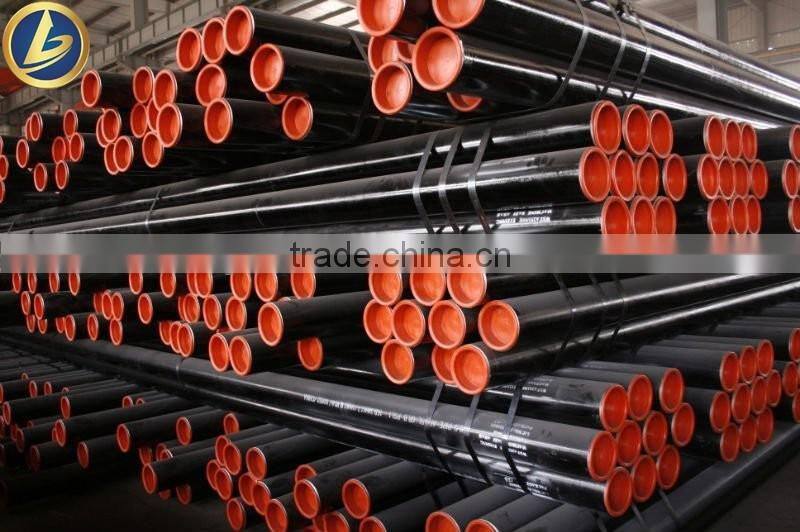

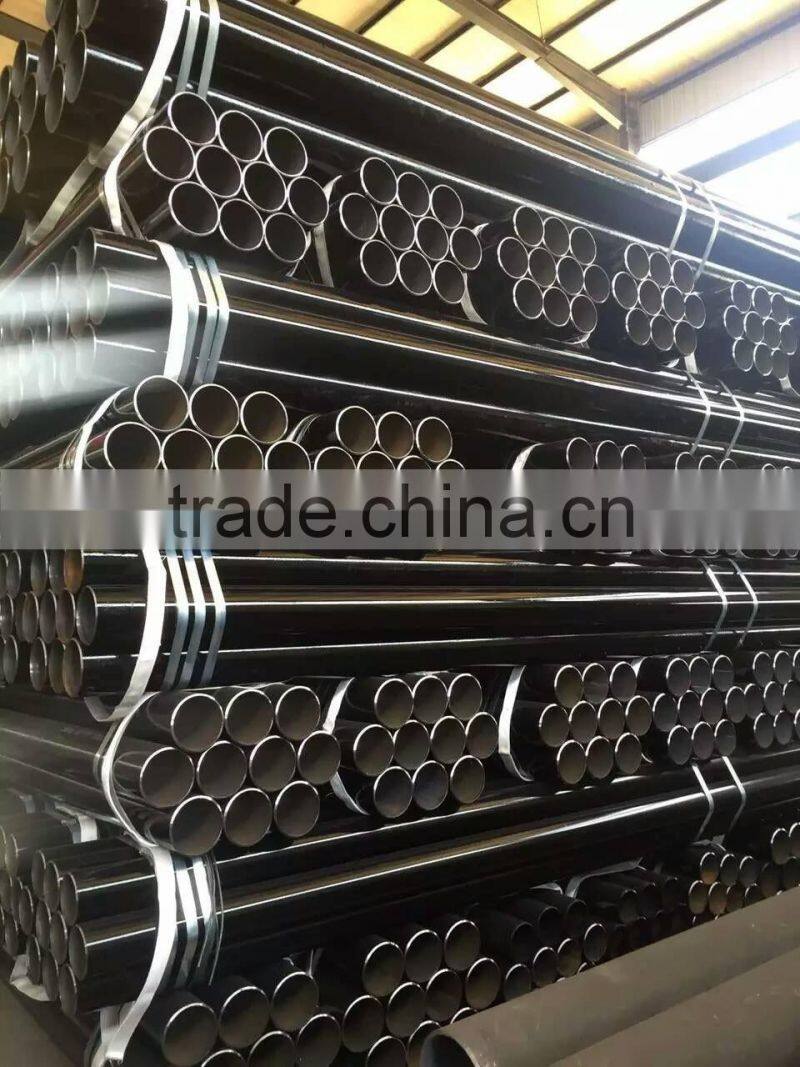

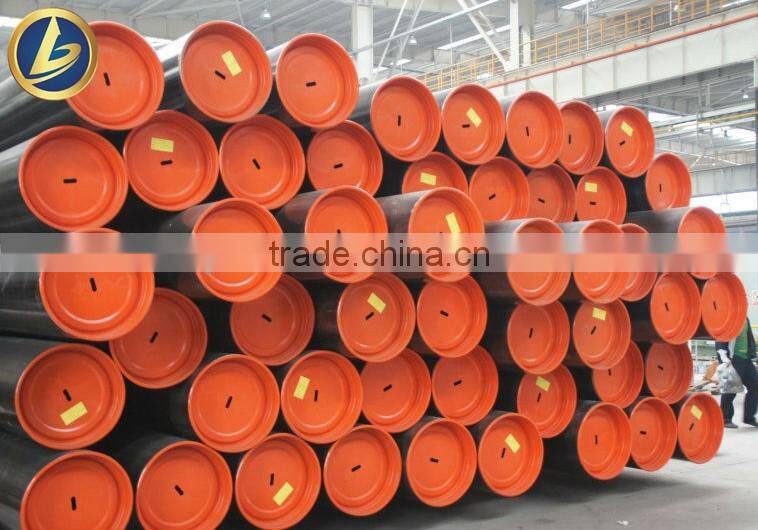

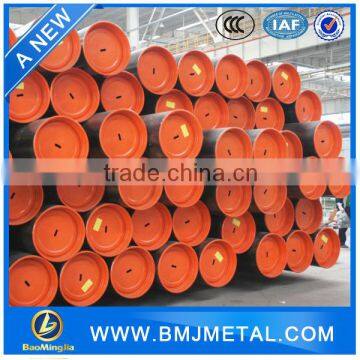

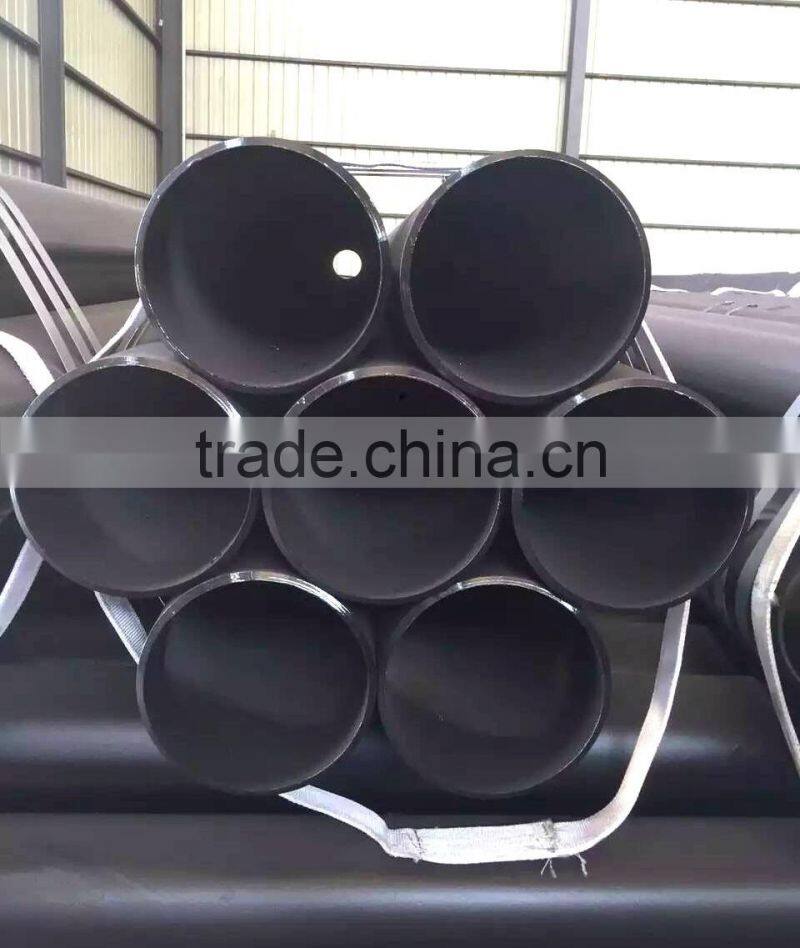

| Product Show |

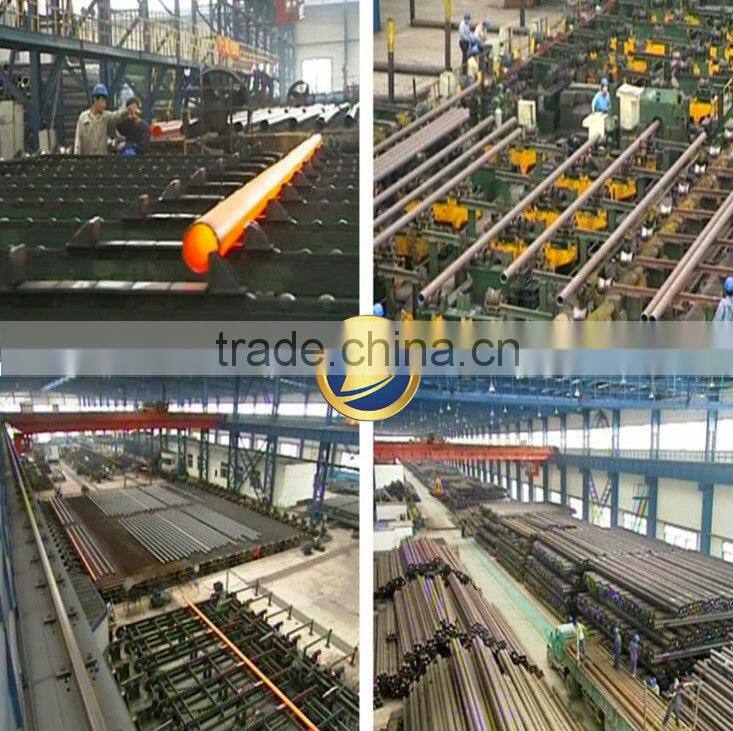

Process:
Round preparation——Heating——Hot perforation——Cutting head—— Pickling—— Grinding—— Lubrication——Cold rolling——Degreasing——Solution heat treatment ——Straightening —— Cutting—— Pickling—— Inspection
