Specifications
copper wire europe1.MOQ:400kg
2.Delivery time;15-30days
3.Accept sample order
4. Send sample
Class H High quality paper covered copper wire

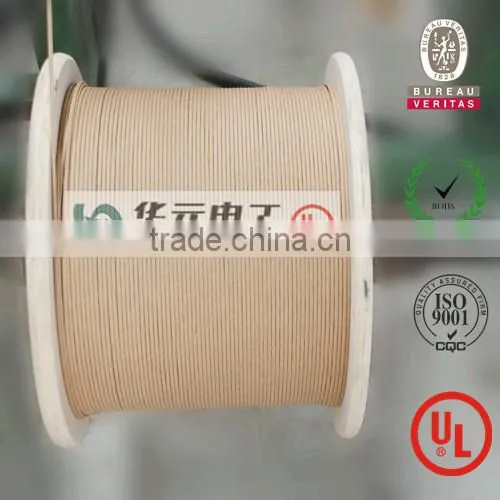

1. paper covered copper wire products pictures details:
Main products: Enameled aluminum round wire, enameled aluminum flat wire ,paper covered aluminum wire,paper covered copper wire,3M paper covered aluminum wire, telephone paper covered aluminum wire,Dupont covered aluminum wire,single-layer glass fiber covered aluminum wire, single-layer glass fiber covered copper wire, double-layer glass fiber covered aluminum wire, double-layer glass fiber covered copper wire
2. paper covered copper wire Products Characteristics
1) Corrosion resistance
2) Radiation resistance
3) High dielectric strength
4) Low temperature resistance
5) Good mechanical properties
3. paper covered copper wire specifications :
P
|
Name
|
paper wrapped wire |
|
Feature |
level wrapping |
|
Material |
Bare copper wire or squeeze bare flat wire confirms the National standard, smooth surface, low resistance. |
|
Standards |
IEC,NEMA,GB
|
|
Application
|
major apply to oil-immersed transformer |
|
Specification
|
rectangular wire a:1—10mm;b:2.0—16mm |
|
Resistivity
|
0.017Ω.mm2/m |
|
Breakdown voltage
|
560V |
|
Appearance
|
Fastness wrapping, tightness, uniformity, without drape |
|
Packing
|
Wooden spool, apply for custom specification |
4.Test reports of paper covered copper wire
Name |
paper covered aluminum wire (copper) |
|||||
Type |
ZBL |
|||||
Diameter |
5.00×18.00mm |
|||||
Standard |
GB/T7673.3-2008 |
|||||
Test item |
Unit |
Technical Requirement |
Test Result |
Single conclusion |
||
Appearance |
|
Fastness wrapping, tightness, uniformity, without drape |
OK |
OK |
||
|
Conductor Diameter |
Broad side |
mm |
±0.05 |
5.02 |
OK |
|
Narrow side |
mm |
±0.10 |
18.01 |
OK |
||
|
Thickness of insulation film
|
mm |
0.405-0.45-0.50
|
0.44 |
OK |
||
Resistance |
Ω/m |
aluminum≤0.02785 |
0.02754 |
OK |
||
Elongation |
|
>17% |
40% |
OK |
||
Overlap lapping |
mm |
≥2 |
2.3 |
OK |
||
Winding bend |
|
According to both sides talks things over |
Without edge Wrapping |
OK |
||
Packing |
|
Meet the export standard |
OK |
OK |
||
Quality control result |
|
OK |
||||
5. Application pictures of paper covered copper wire as follows
oil immersed Transformer, Reactor, Generator and other electric device
6.Equipments are being used testing paper covered copper wire
Plywood wooden spool such as 250*400,250*500,260*400 an dso on.
Packing: Plastic spool loading in custom-made export carton then pack in Plywood Cases, at last bind it with Steel Strip
You can choose natural packing or based on customers' requirement
7. Telephone Paper details and paper cutter machine
8. Importing paper covered copper wire from Huayuan , you will be enjoyed best service as follows:
1) Trail order is welcomed, you can test our quality before making large quantity, even though we are wholesales supplier
2) We issued test reports for every shipment.
3) You can enjoy discounting and priority to produce first after you become to be our regular client.
9.Our Company Advantage:
1) About 20 years paper covered copper wire manufacture experiences.
2) Been Audit by UL Company and BV Company
3) We have a big Quality Control Team and can guarantee the quality and time of delivery
4) Many trade companies place orders from us.
Application
Certifications
10.Why choose us:
1) Factory direct and shipment in time.
2) Telephone paper/3M paper/ Nomex (Dupont)
3) Customized sizes, logo and packing are accept
4) Accept sample order
5) Can send sample to test quality before our customer place order
6) Goods are sold with return guarantee the goods quality.
Q1. Different thermal class wire, whether their price is the same?
Their price is different based on different thermal class, because the varnish is different.
Q2. Why we need our customer tell the insulation thickness?
Our customers can tell us the insulation thickness or the reference standards, such as GB/IEC /NEMA.
Q3. If I order today, how long it takes for the shipment?
If customized order will ship the goods within 5-15days also depend on the quantity.
Q4. Can u provide customized specifications?
Yes, we can. Round wire diameter 1.00-8.00mm Flat wire Thickness (a): Φ0.8mm-5.0mm, Width (b): Φ2-16mm
Xuchang Huayuan Electric Apparatus Co.Ltd factory pictures:
