Product Details
| Place of Origin: | Henan, China | Brand Name: | HUAYUAN | Model Number: | ZZD |
| Type: | Insulated | Application: | Other, Transformer;Welding machine;Electric reactor | Conductor Material: | Copper |

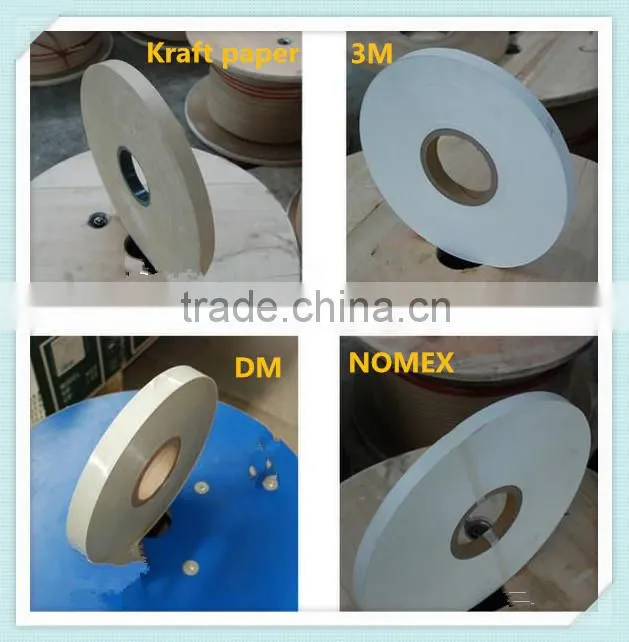

| Conductor Type: | Solid | Insulation Material: | Other, kraft paper |
Product Description

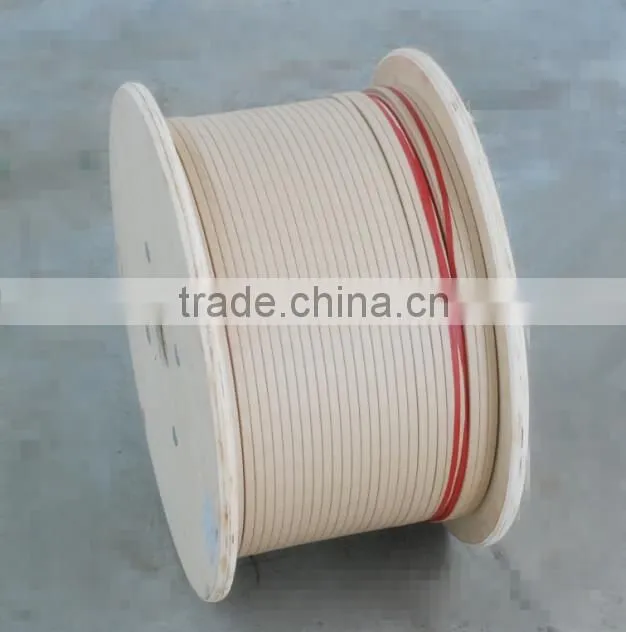

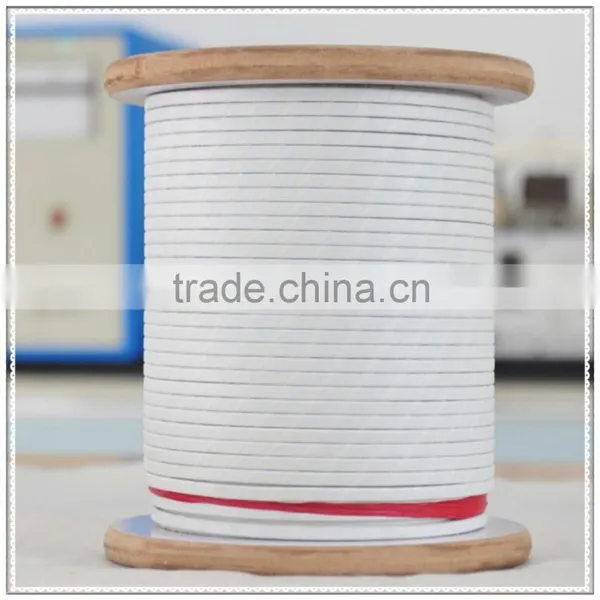

2.75mm*5.50mm paper covered copper wire,magnet wires copper,nylon wire
TEST REPORT
Name | 2.75mm*5.50mm paper covered copper wire | |||
Specification | 2.75mm×5.50mm | |||
Standard | GB/T7673.3-2008 | |||
Test Item | Unit | Technical requirement | Test result | |
Appearance |
| Uniform formation around the conductor, there should be no shortage of tape layers should not have wrinkles and cracks and other defects | No defects
| |
Size | Thickness(a) | mm | ±0.03 | 2.76 |
Width(b) | mm | ±0.07 | 5.53 | |
Insulation thickness | mm | 0.405---0.45----0.48 | 0.48 | |
Electrical Resistance(20°C) | Ω.mm2/m | Copper≤0.017241 | 0.01693 | |
Springback angle | º | ≤5º | 3.8 | |
Wrapping overlap | mm | ≥2 | 2 | |
Elongation | % | Size a ≤2.5 30% >2.5 32% | 48% | |
Winding bend |
| Negotiated | No alice | |

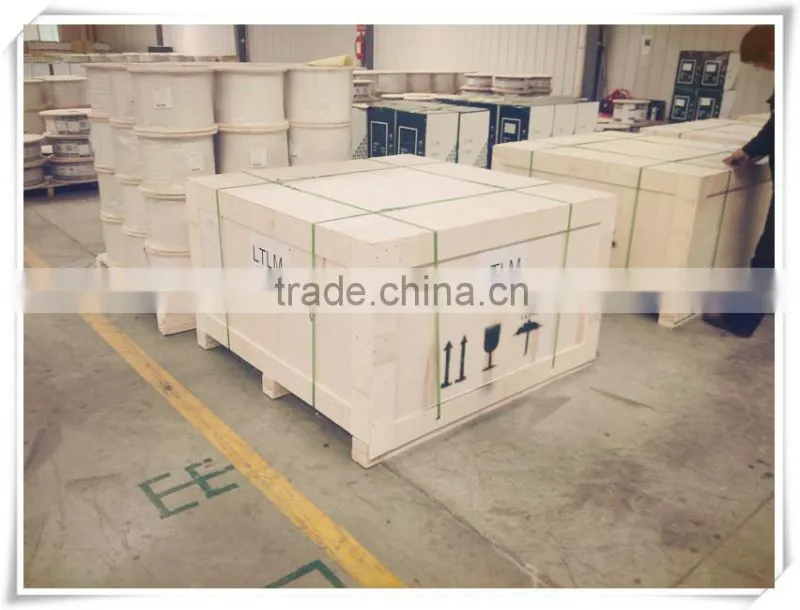

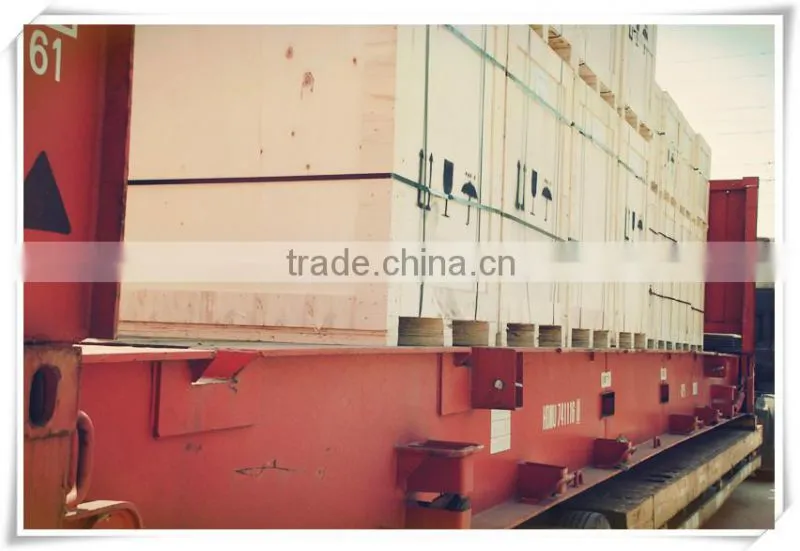

packing | Meet export standard | |||
Result | Up to standard | |||
Rectangular wire
a:0.80mm-5.00mm
b:2.00mm-16.00mm
Good feature
l High dielectric strength
l Good temperature strength
l Level wrapping
Material
Drawing or Squeezing bare wire confirm national standard. smooth surface, no defect
Standard
l GB/T5584-99
l NEMA-MW60-A
Application
l Transformer
l Welding machine
l Electric reactor
Certificate
UL BV IEC ROHS

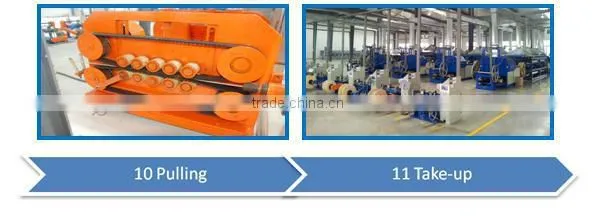

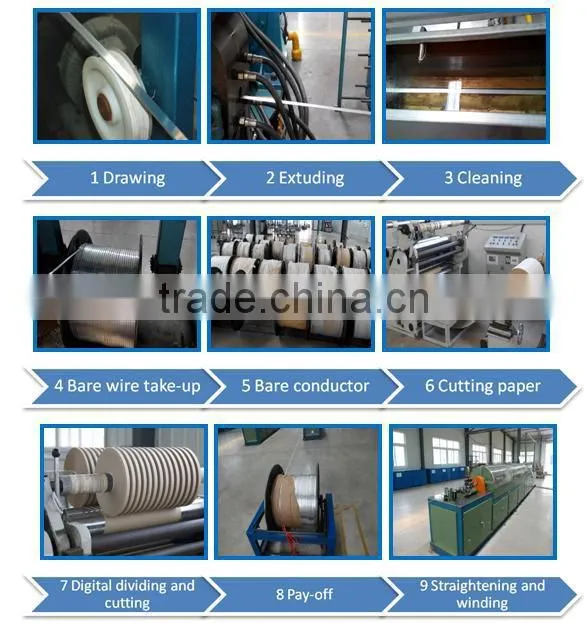

Production process
l We have strong technical strength and develop new products continuously.
l We can supply very professional solution to our client.
lWe issued test reports for every shipment.
sample arrangement
l Enameled wire sample is free for customers,and sample freight is paid by customers.
Customized product: We have two editor for GB Standard.The customers shoud pay the mold cost firstly. When the order carried out we will refund the mold cost.
l Sample is free,its shipping time is 3-5days.
Brief introduction
Located in Yanling County, Henan Province Of China,Huayuan was established in 1993,has developed a professional manufacturer of Magnet Wires in China,and our products conform the standards of IEC, NEMA ,ROHS,ISO9001,UL.
Our team
You can choice other products.
The phone is on-line all day.
Contact Us
- Xuchang Huayuan Electric Apparatus Co., Ltd.
- Contact nameRose Rose
- Phone0086-374-8579111
- AddressSouth of Weilai Avenue, Industry Cluster District, YanlingCounty, Xuchang City, Henan Province, China Xuchang,Henan
-
