Specifications
1.20 years history2.paper covered magnet wire
3.Cost control
4.Good management
5.ROHS,UL,BV,ISO9001
Super sales good quality paper covered magnet wire

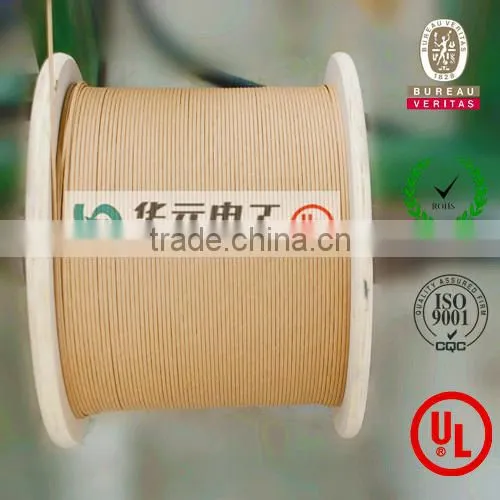

Product detail picture
The types of insulating paper:
1. Specification of paper covered magnet wire :
Round: 3mm-7mm
Flat/Rectangular: a: 1mm-7mm, b: 2mm-20mm
2. Insulation Materials:Cable/Telephone Paper, also called craft paper
3. Temper Class: Non-impregnated Y (90°C) impregnated A (105°C)
4. Standard of paper covered magnet wire : IEC, NEMA, GB
5. Thickness of paper covered magnet wire : According to customer’s request
6. Features of paper covered magnet wire : Excellent voltage resistance properties
7. Application of paper covered magnet wire : Specially used in oil-immersed transformers and similar appliance
paper covered magnet wire Production Process
Aluminum Rod Wire Drawing Bare Wire
Payed Off Wrapping Machine Flatten the Paper
Take up Finished Products Inner Packing
Test Reports of paper covered magnet wire :
Name |
Paper Covered Aluminum Wires |
|||||
Type |
ZBL |
|||||
Diameter |
5.00×18.00mm |
|||||
Standard |
GB/T7673.3-2008 |
|||||
Test item |
Unit |
Technical Requirement |
Test Result |
Single conclusion |
||
Appearance |
|
Fastness wrapping, tightness, uniformity, without drape |
OK |
OK |
||
|
Conductor Diameter |
Broad side |
mm |
±0.05 |
5.02 |
OK |
|
Narrow side |
mm |
±0.10 |
18.01 |
OK |
||
|
Thickness of insulation film
|
mm |
0.405-0.45-0.50
|
0.44 |
OK |
||
Resistance |
Ω/m |
aluminum≤0.02785 |
0.02754 |
OK |
||
Elongation |
|
>17% |
40% |
OK |
||
Overlap lapping |
mm |
≥2 |
2.3 |
OK |
||
Winding bend |
|
According to both sides talks things over |
Without edge Wrapping |
OK |
||
Packing |
|
Meet the export standard |
OK |
OK |
||
Quality control result |
|
OK |
||||
Equipments are being used testing paper covered magnet wire
Our Company Advantage:
1) About 20 years paper covered winding aluminium wire manufacturer experiences since 1993.
2) Been Audit by UL Company and BV Company
3) We have a big Quality Control Team and can guarantee the quality and time of delivery
Certifications
Q1. Different thermal class wire, whether their price is the same?
Their price is different based on different thermal class, because the varnish is different.
Q2. Why we need our customer tell the insulation thickness?
Our customers can tell us the insulation thickness or the reference standards, such as GB/IEC /NEMA.
Q3. If I order today, how long it takes for the shipment?
If customized order will ship the goods within 5-15days also depend on the quantity.
Q4. Can u provide customized specifications?
Yes, we can. Round wire diameter 1.00-8.00mm Flat wire Thickness (a): Φ0.8mm-5.0mm, Width (b): Φ2-16mm
