UL international standards flat paper covered enameled wire used in air-conditioner
Product detail picture
The types of insulating paper:
1. Specification of flat magnet wire :
Round: 3mm-7mm
Flat/Rectangular: a: 1mm-7mm, b: 2mm-20mm

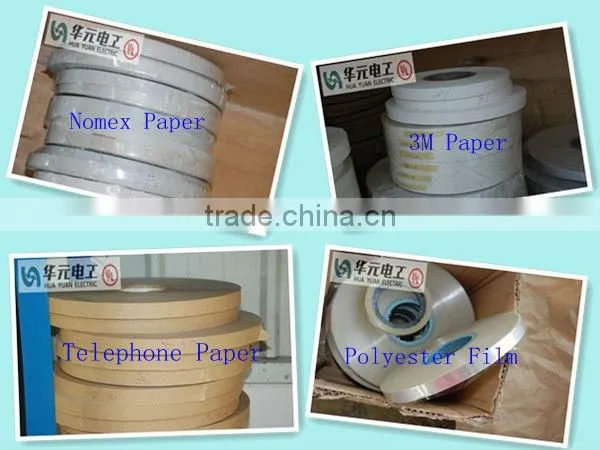

2. Insulation Materials:Cable/Telephone Paper, also called craft paper
3. Temper Class: Non-impregnated Y (90°C) impregnated A (105°C)
4. Standard of flat magnet wire : IEC, NEMA, GB
5. Thickness of flat magnet wire : According to customer’s request
6. Features of flat magnet wire : Excellent voltage resistance properties
7. Application of flat magnet wire : Specially used in oil-immersed transformers and similar appliance
flat magnet wire Production Process
Aluminum Rod Wire Drawing Bare Wire
Payed Off Wrapping Machine Flatten the Paper
Take up Finished Products Inner Packing
Test Reports of flat magnet wire :
Name |
Paper Covered Aluminum Wires |
|||||
Type |
ZBL |
|||||
Diameter |
5.00×18.00mm |
|||||
Standard |
GB/T7673.3-2008 |
|||||
Test item |
Unit |
Technical Requirement |
Test Result |
Single conclusion |
||
Appearance |
|
Fastness wrapping, tightness, uniformity, without drape |
OK |
OK |
||
|
Conductor Diameter |
Broad side |
mm |
±0.05 |
5.02 |
OK |
|
Narrow side |
mm |
±0.10 |
18.01 |
OK |
||
|
Thickness of insulation film
|
mm |
0.405-0.45-0.50
|
0.44 |
OK |
||
Resistance |
Ω/m |
aluminum≤0.02785 |
0.02754 |
OK |
||
Elongation |
|
>17% |
40% |
OK |
||
Overlap lapping |
mm |
≥2 |
2.3 |
OK |
||
Winding bend |
|
According to both sides talks things over |
Without edge Wrapping |
OK |
||
Packing |
|
Meet the export standard |
OK |
OK |
||
Quality control result |
|
OK |
||||

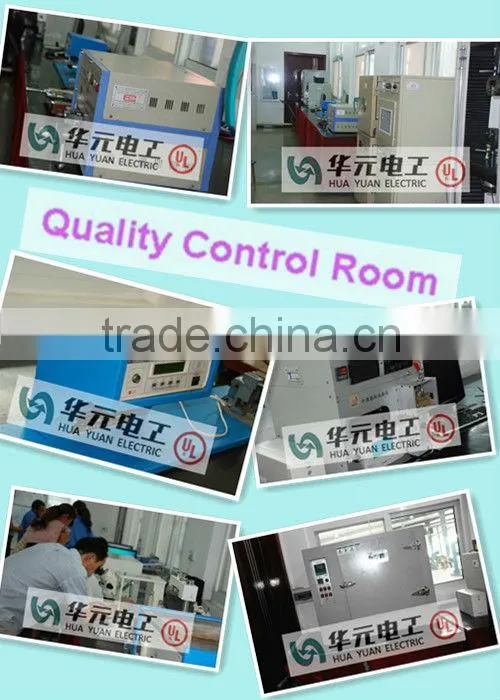

Equipments are being used testing flat magnet wire
Our Company Advantage:
1) About 20 years paper covered winding aluminium wire manufacturer experiences since 1993.
2) Been Audit by UL Company and BV Company
3) We have a big Quality Control Team and can guarantee the quality and time of delivery
Certifications
a) Class 180: Polyesterimide enameled round and flat aluminum/copper wire class180 have good performance of heat shock.
Resistant to high cut- through temperature, excellent mechanical strength .With the feature of both solvents
resistance and refrigerants resistance. It can be widely used in electrical equipments which
require high performance of heat resistance.
Typical applications include:
| l Electric motor |
| l Instrument |
| l Dry transformer |
| l Generator |
| l UPS power source |
| l Electric welding machine |
b) Class 200: Polyester or polyestermide covered with polyamideimide enameled round and flat aluminium/copper wire class
200 show superior performance in the application including extreme environment application.
Typical applications include:
| l Motor |
| l Transformer(include oil-immersed transformer) |
| l Refrigerating System |
| l C motor |
| l UPS power source |
|
1) The largest range of Enameled Round Aluminum Wire, with diameters from 1.0 to 8.0 millimeters |
|
2) BV approved professional manufacturer of aluminium wire. We process in high quality only |
| 3) The vanish use is ELANTAS to gurantee the quality |
|
4) Factory have passed the ISO 9001 (00112Q213049R1M/4100) and ROSH certification |
| 5) Some of our products are UL listed (OBMW2.E317671) |
| 6) Free samples can be sent to test quality |
|
Q1. Different thermal class wire, whether their price is the same ? Their price is different based on different thermal class, because the varnish is different. |
|
Q2. Why we need our customer tell the insulation thickness ? Our customers can tell us the insulation thickness or the referance satndards, such as GB/IEC /NEMA. |
|
Q3. If I order today, how long it takes for the shipment ? If customized order will ship the goods within 5-15days also depend on the quantity. |
|
Q4. Can u provide customized specifications ? Yes,we can. Round wire diameter 1.00-8.00mm Flat wire Thickness(a): Φ0.8mm- 5.0mm, Width(b): Φ2-16mm . |
