China Manufacturer for Super Round Enamelled Copper Wire
- Tianjin /Shanghai /Qingdao
- T/T D/P D/A Credit Card
You May Like
-
1.70mm Enameled Copper Wire for Generator,electrical Material China,manufacture
-
1.60mm Insulated Copper Wire,huayuan,copper Wire Supplier
-
Fine 1.00mm Enameled Copper Wire for Heat-resistance Motor,level With Magnet
-
2.50mm Insulated Copper Winding Cable,manufacturing Company,free Samples
-
Super Insulted Copper Wire With 1.08mm for Motor Winding,home Wiring
-
Great Enamel Copper Wire for 1.80mm,wiring Electrical,bulk Buy From China
Product Details
| Place of Origin | Henan, China | Brand Name | HUAYUAN | |
| Model Number | QZ-2/130 | Type | Insulated | |
| Application | Other, Transformer,Generator | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | Enameled |
Product Description
Description of enamelled copper wire :

Our Certification :
Export Product :
Detailed Information of enamelled copper wire :

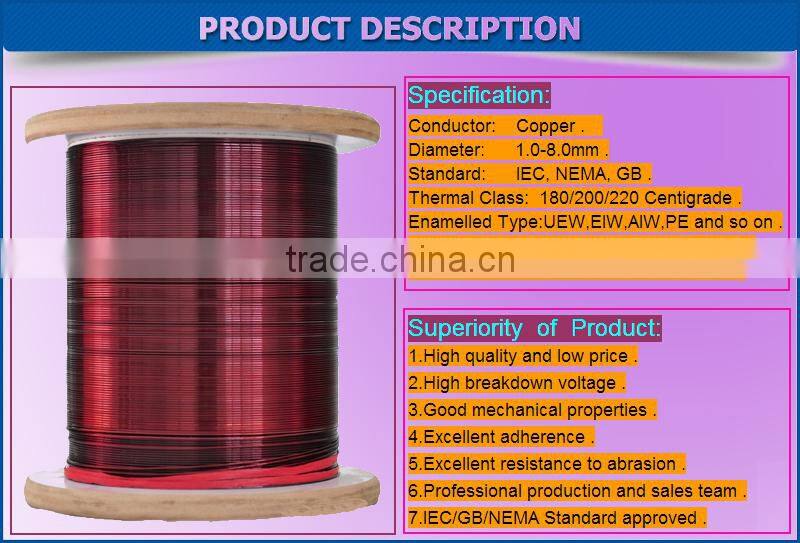

Specification of enamelled copper wire:
Conductor: Copper .
Diameter: 1.0-8.0mm .
Standard: IEC, NEMA, GB .
Thermal Class: 180/200/220 Centigrade .
Enamelled Type:UEW,EIW,AIW,PE and so on .
Certification: BV Certificated, UL Approved ;
ISO9001,ROHS Certificated .
Superiority of enamelled copper wire:
1.High quality and low price .
2.High breakdown voltage .
3.Good mechanical properties .
4.Excellent adherence .
5.Excellent resistance to abrasion .
6.Professional production and sales team .
7.IEC/GB/NEMA Standard approved .
Test Report of enamelled copper wire :
| Name | Enamelled copper wire | ||
| Type | QZ-130 | ||
| Diameter | 1.250mm | ||
| Standard | GB/T6109.7-2008 | ||
| Test Item | Unit | Technical Requirement | Test Result |
| Appearance | bright and clean, Uniform color, | Ok | |
| Overall Diameter | mm | <1.349 | 1.344 |
| Conductor Diameter | mm | 1.237-1.263 | 1.249 |
| Thickness of insulation film | mm | >0.067 | 0.095 |
| resistance | Ω/m | <0.01393 | 0.01386 |
| Elongation | >31% | 31.5% | |
| winding test | no cracking | Ok | |
| Tensile Test | - | - | |
| Peel twist | insulation film Without losing adhesion | Ok | |
| Jerk test | insulation film Without losing adhesion | Ok | |
| Resistance to heat shock | °C | 155°C insulation film no cracking | No cracking |
| Resistance to solvent | Standard solvent “H” Pencil | 2H is ok | |
| Breakdown Voltage | KV | > 5.0KV | 10.4,11.9,14.2,13.8 |
| package | Meet the export standards | Ok | |
| Quality Control Result | Ok | ||

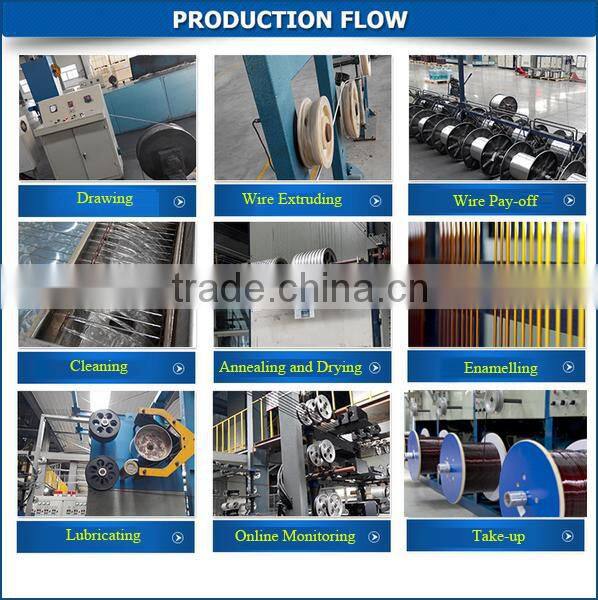

Production Flow of enamelled copper wire :

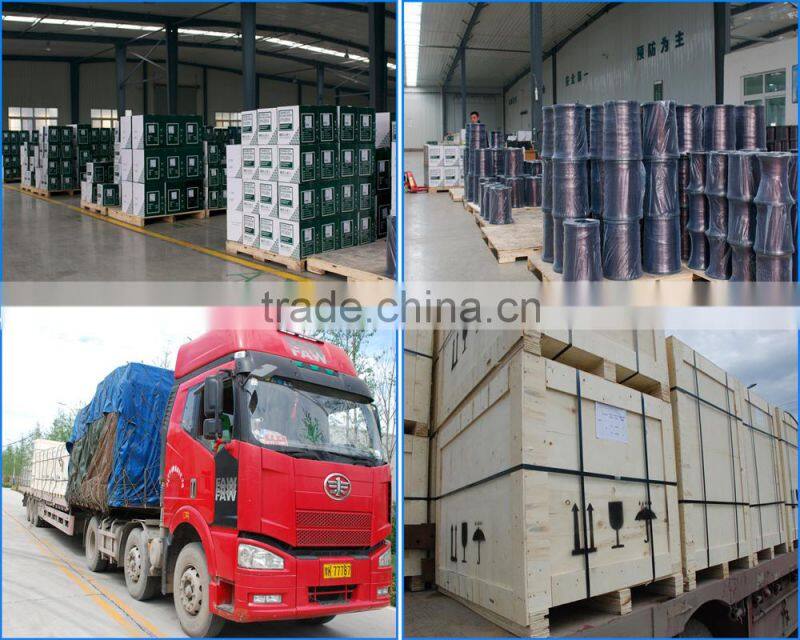

Our product is packed in wooden wheel and then packed in wooden tray in order to protect enamelled copper wire from damage
during transport .
Founded in 1993, Xuchang Huayuan Magnet Wire Co.,Ltd located in Henan Province with covering an area of 100000 m2 and a building area of 30000m2.We are producers with more than 20 years of production experience.Since our factory was established,we have been engaged in researching and manufacturing enamelled magnet wire and winding magnet wire.Our main products are enamelled aluminum wire,enamelled copper wire,paper covered magnet wire,fiberglass covered magnet wire and other magnet winding wire .

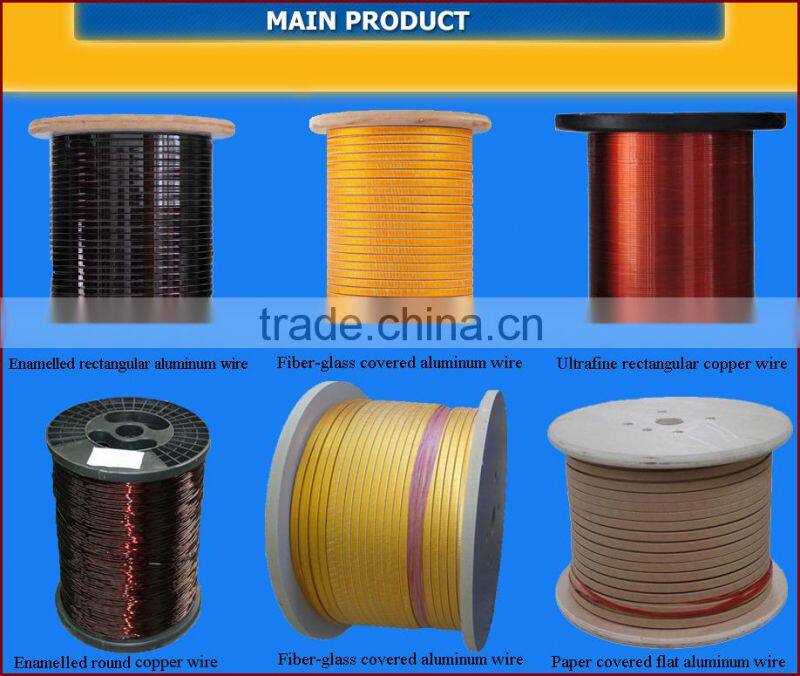

Main Product :
Our experimental equipment :
Typical application include :
Contact Information :
We can supply enamelled copper wire,enamelled copper coil,electrical copper wire,paper covered magnet wire,fiberglass covered magnet wireand other magnet winding wire.Please contact me freely at any time.
1,Q: Can we supply the sample for free ?
A: Yes,we can.
2,Q: How many types of our product ?
A: We can supply enamelled aluminum wire,enamelled copper wire,enamelled electrical copper wire,paper covered magnet wire,fiberglass covered magnet wire and other magnet winding wire.
3,Q: How long has been our company established ?
A: We has produced since 1993.
4,Q: What's our MOQ ?
A: 500kg.
5,Q: Which payment terms we prefer ?
A: (1) L/C
(2) T/T
(3) D/P
(4) Western Union
