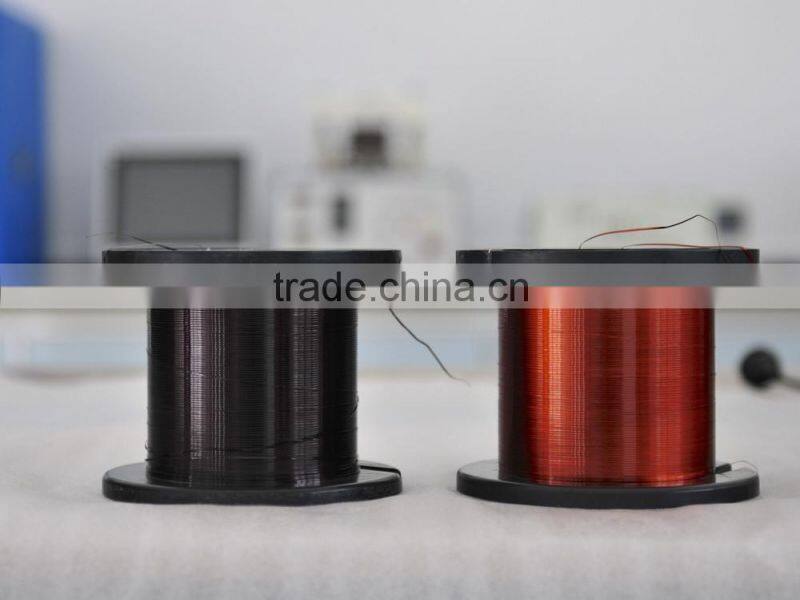

1.06mm enameled copper wire,electric wire type,price of wire of copper,pvc insulation material
TEST REPORT
Name |
1.06mm enameled copper wire |
|||
Model No |
QZ-2/130 |
|||
Standard |
IEC60317-1 |
|||
Test Item |
Unit |
Technical requirement |
Test result |
|
Appearance |
|
Bright and clean, uniform color. Without defect |
No defects
|
|
Conductor |
Conductor Diameter |
mm |
+ 0.011mm |
1.055mm |
Enameled Increase |
mm |
>0.065 |
0.078mm |
|
Overall Diameter |
mm |
<1.157 |
1.133mm |
|
Adherence and Flexibility |
Mandrel Winding Test |
|
---------------- |
---------------- |
Tensile Test |
|
No crack visible in the film coating after _ elongation |
|
|
Jerk Test |
|
The coating shall show no crack and without losing adhesion |
|
|
Peel Twist |
|
insulation film Without losing adhesion |
Without losing adhesion |
|
Electrical Resistance |
Ω/m |
<0.019787 |
0.018966 |
|
Elongation |
% |
>30 |
35 |
|
Heat Shock |
℃ |
155℃ show no crack |
Elongation 15% half an hour, no cracking |
|
|
Cut-through
|
|
℃ min no breakdown |
---------------- |
|
Resistance to abrasion |
N |
≥ N |
---------------- |
|
Resistance to Solvents |
|
Standard Solvents. Using a pencil of hardness “H” the coating shall not be removed |
2H not removed |
|
Breakdown Voltage at Room Temp. |
KV |
≥5.0KV |
8.2,8.0,7.5,6.3 |
|
Continuity of insulation |
|
V 30M≤ Pinhole |
---------------- |
|
packing |
Meet export standard |
|||
Result |
Up to standard |
|||
Good feature
l High temperature resistance
l Chemical corrosion resistance Transformer oil resistance
l Low temperature resistance Radiation resistance
l High breakdown voltage
l Good mechanical properties
Material
Drawing or extruding bare aluminum wire confirm to national standard, smooth surface, no defects .Good performance insulation varnish, polyester or polyester-imide insulation varnish as underlying coat, Polyamide-imide as superimposed coating.
Standard
l GB/T6109/IEC60317-0-1
l GB/T23312/IEC60317-0-3
l MW76-A
l MW35-A
Application
l Transformer
l Generator
l Refrigerating system
l Heat-resistant motor
l UPS power source
Certificate
Production process
Packaging
l Sample is free,its shipping time is 3-5days.
l The phone is on-line all day.
Brief introduction
Located in Yanling County, Henan Province Of China,Huayuan was established in 1993,has developed a professional manufacturer of Magnet Wires in China,and our products conform the standards of IEC, NEMA ,ROHS,ISO9001,UL.
We implete 5S management.
You can choice other products.
