Specifications
enameled rectangular copper wire1.Dia:a:1-10mm,b:3-16mm
2.Themal class:130-220c
3.20 years history
4.ROHS.UL
leading supplier of enameled rectangular copper wire
Feature of enameled rectangular copper wire
- High temperature resistance
- Chemical corrosion resistance
- Transformer oil resistance
- Low temperature resistance
- Radiation resistance
- High breakdown voltage
- Good mechanical properties
enameled rectangular copper wire Shows
Test report of enameled rectangular copper wire
TYPE: QZB -1/155 SIZE:1.25*5.3MM
Test Item | Unit | Technical Standard | Test Result | |
Appearance |
| uniform colour and without the defeat affecting product performance. | No defect | |
Conductor | Thickness (a) | mm | ±0.030 | 1.253 |
Width (b) | mm | ±0.050 | 5.320 | |
Insulation Thickness | Thickness (a) | mm | 0.060—0.110 | 0.090 |
Width (b) | mm | 0.060—0.110 | 0.100 | |
Resistivity (20°C) | Ω.mm2/m | ≤0.017241 | 0.01701 | |
Elongation | % | side a (mm) :≤2.5 30% | 40% | |
Side a (mm): >2.5 32% | ||||
Adherence |
| The film distance of lose adherence shall not more than 1b after 15% elongation. | not loss adherence | |
Heat Shock |
| No cracks visible in the filmcoating after bending the board side around a mandrel 6aby conditioning at 175°C | No Crack | |
Breakdown Voltage | KV | Min break down voltage: four of five specimens shall not lower than 1.0KV. one shall not lower than 50% | 3.9,3.6,5.0,4.1,5.0 | |
Package |
| Meet the relative standards | Meet the standard | |
Material
Insulation varnish : | Temperature Class |
Polyvinyl Formal | Class 105 |
Polyurethane/Polyamide (Nylon) | Class 155 |
Polyurethane | Class 155 |
Polyurethane/Polyamide (Nylon) | Class 180 |
Polyurethane | Class 180 |
Solderable Polyester | Class 180 |
Solderable Polyester/Polyamide (Nylon) | Class 180 |
Modified Polyester/Polyamide (Nylon) | Class 180 |
Modified Polyester/Polyamideimide | Class 200 |
Modified Polyester | Class 200 |
Modified Polyester/Polyamideimide | Class 200 |
Modified Polyester/Polyamideimide | Class 220 |
Polyimide | Class 240 |
Polyvinyl Butyral Self Bonding over | Class 130 |
Modified Polyester/Polyamideimide/Bondcoat | Class 180 |

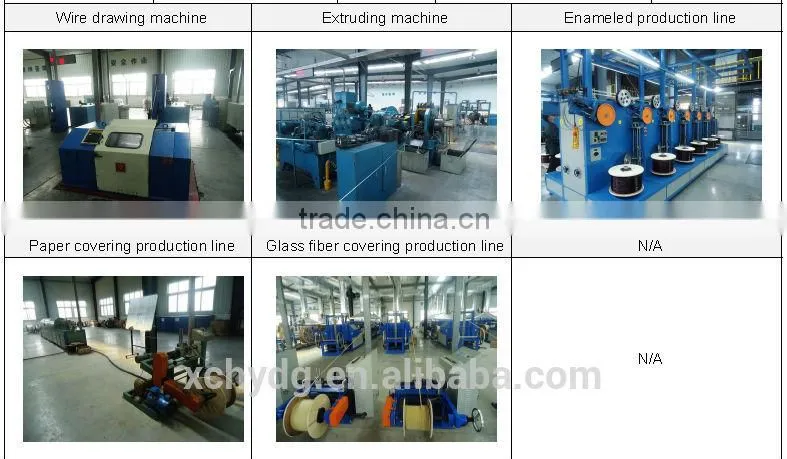

The 6 main steps to produce enameled rectangular copper wire
We can provide neutral package.or cuatomers special requirement.
Normal Packing as follows:
Inner packing: different plastic spool according to wire diameter
Outer packing: wooden spool and in wooden case or according customers' special requirement
Sample shipping time:3-5days
Order and shipping time: negotiate
packing of enameled rectangular copper wire
1.free sample will be provide.
2. Many foreign trade corporation buy product from our factory
enameled rectangular copper wire has been widely used in power transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads, instruments,speakers,Automotive sensors and coils as relais and ignition coils,Generators,dry-type or oil-immersed transformer.Anti-explosion motor,air-conditioner compressor,washing machine.Military and space applications
- Certification
enameled rectangular copper wire are approved by UL ROHS ISO.

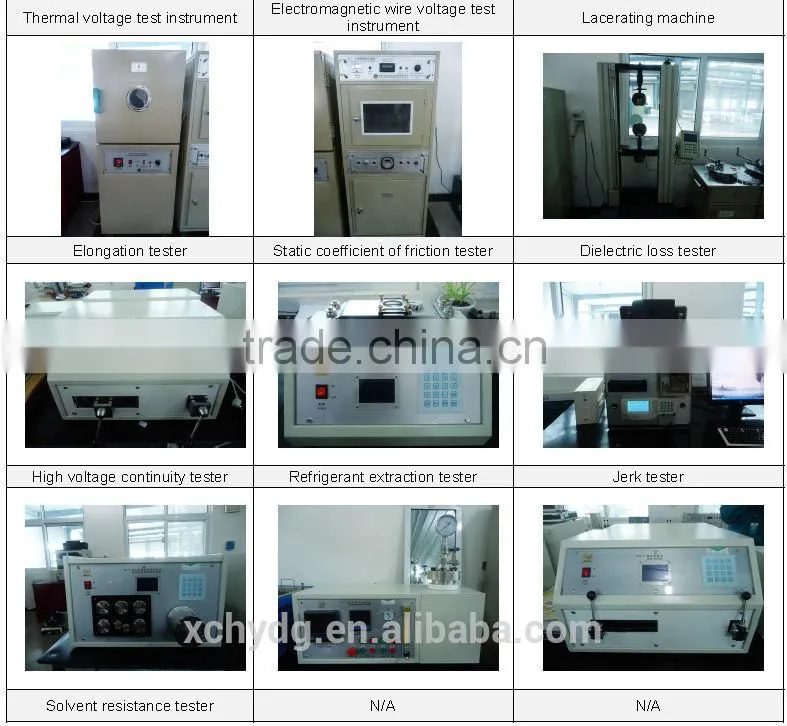

Quality Control

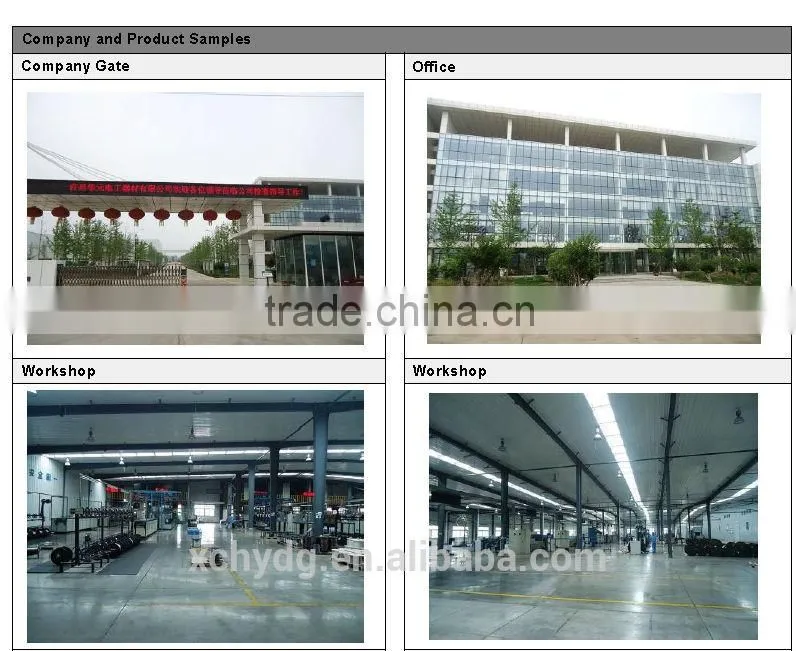

Xuchang Huayuan Electric Apparatus Co., Ltd. was established in 1993 and we have developed into a professional manufacturer of enameled rectangular copper wire and paper covered aluminum wire as well as fiber-glass covered aluminum wire. Our 100,000sqm factory is ISO9001 (00112Q213049R1M/4100) certified, and our products are also UL listed. Our workshop maintains constant temperature and humidity to guarantee the quality.
1.Q: Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located ?
A:Our factory is located in Xuchang, Henan province,China.
3.Q: How can i get the samples?
A:We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A:20 Years manufacturing enameled rectangular copper wire experience.Perfect certification system include UL,ISO, RoHS and BV.Professional QC team consisted of 20 experts and 2 editor of GB standard,Every enameled rectangular copper wire must pass the test and issue the test report.
Any size, any thermal class ,free sample service, leave an inquiry to know more detail about enameled rectangular copper wire price ,packing ,shipping and discount.
Company website:,
